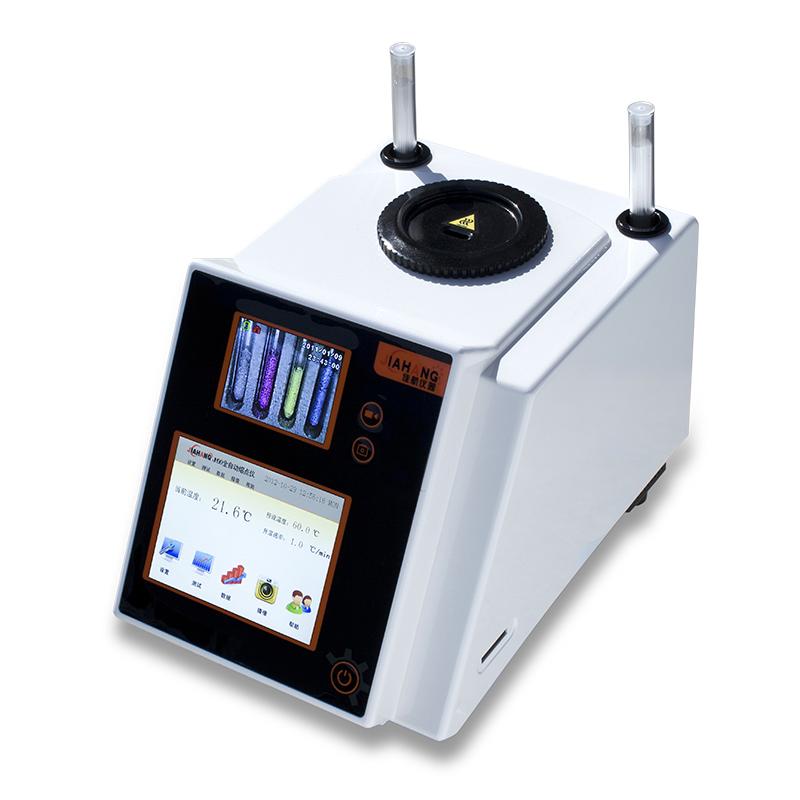

JIAHANG JH30 Melting point Meter high definition camera room temperature~ 350 ℃

Name: JIAHANG JH30 Melting point Meter high definition camera room temperature~ 350 ℃
Brand: JIAHANG
SKU: NB006526

Please contact customer service

Using high-resolution video camera technology to replace the traditional Microscope, the temperature range is from room temperature to 350 ° C, and 4 samples can be processed simultaneously, compatible with powder and block sample measurement. Temperature resolution reaches 0.1 ° C.

Model

JH30

Get Quote

Category : Melting Point Apparatus

Brand : JIAHANG

SKU : NB006526

Service :The delivery and service By NBCLab.Com

Overview

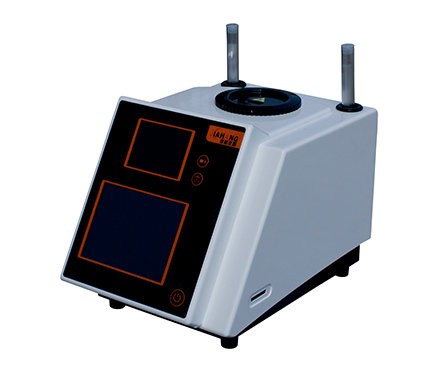

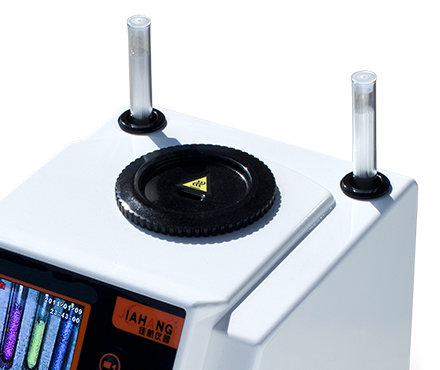

The JIAHANG JH30 video Melting point meter combines High Accuracy temperature control technology and high-resolution video camera technology to provide accurate, stable and reliable test results, and brings convenient test experience. The high-resolution video can clearly observe the whole process of sample melting, which is convenient for accurate measurement of melting point and melting distance. The temperature measurement range is from room temperature to 350 ° C, 4 samples are processed at a time, and the map preservation function is not available.

Features

1. High-resolution video replaces traditional Microscope vision; 2. Process four samples at a time. 3. Compatible with measurement powder foam and block (optional melt).

Principle

The product information does not mention Working Principles.

Applications

Chemical industry, research, food, flavors, dyestuffs, organic crystalline substances

Standards

The product information does not mention conformance to standards.

Steps

The product information does not mention the operation steps.

Notice

The product information does not mention any precautions.

Display Range
Room temperature~ 350℃
Temperature resolution
0.1℃
heating rate
0.1 ℃~ 20℃ (200 gear stepless adjustable)
Temperature Accuracy
±0.3℃（<250℃）；±0.5℃（>250℃）
Repeatability
0.1 ℃/min melting point Repeatability +/- 0.1 ℃
Capillary tubing Size
Outer diameter: Φ 1.4mm, inner diameter: Φ 1.0mm
Detection method
Semi-automatic (automatic temperature control, manual detection)
processing power
4 pieces/batch (four samples can be made at the same time)
magnification
7 times
Power
120W
power supply
220V 50HZ
video function
take a picture
video playback
without
map saving
without
user management
without
data preservation
200 articles
Storage space
8G
Display mode
TFT high-definition true color screen
Interface
USB, RS232, Ethernet port
