Overview

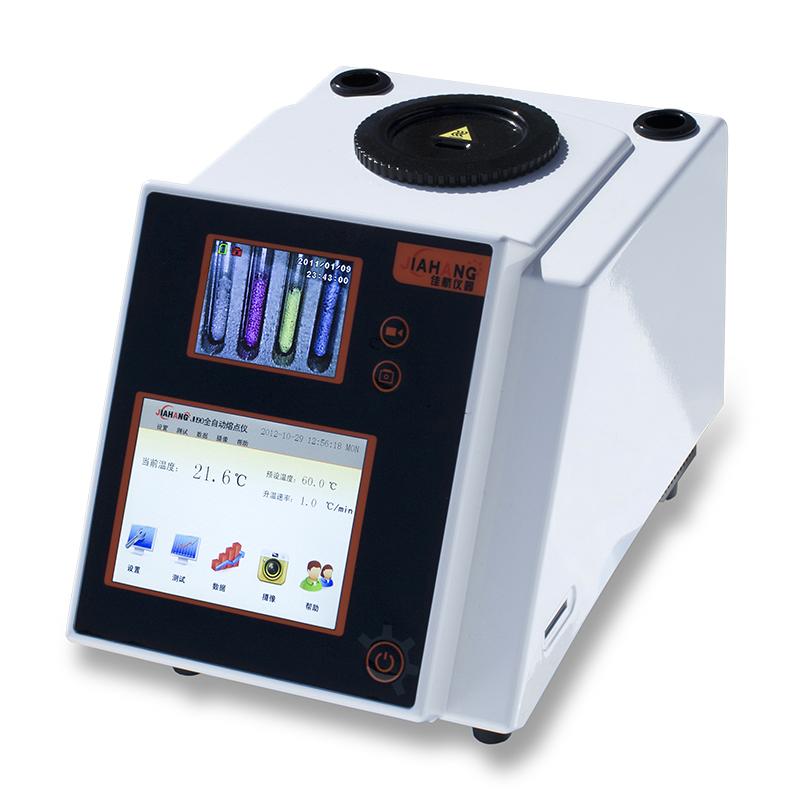

The JIAHANG JH80 automatic video Melting point meter combines High Accuracy temperature control technology and high-resolution video camera technology to provide accurate, stable and reliable test results, bringing a convenient test experience. The high-resolution video can clearly observe the whole process of sample melting, automatically detect and display the spectrum in real time, which is convenient for users to accurately measure the melting point and melting distance. The instrument is equipped with a high definition camera module, which supports 20 sets of spectrum storage and 600 Data storage.
Features
1, equipped with high definition camera module;
2. Process four samples at a time.
3. High automation integration, enabling one-click measurement.
4. Fully automatic recording of melting process, initial melting, and final melting.
5. Assist in 3Q certification, in line with the 2015 edition of the Pharmacopoeia.
Principle
JIAHANG JH80 automatic video Melting point meter precisely controls the sample temperature through High Accuracy temperature control technology, combines high-resolution video camera technology to capture the sample melting process in real time, automatically detects and records the melting point and melting distance, and realizes fully automatic testing.
Applications
Chemical industry, research, food, flavors, dyestuff, production of organic crystalline substances
Standards
2015 Pharmacopoeia
Steps
1. Prepare samples and load them into capillary tubing;
2. Put the sample into the instrument.
3. Set test parameters.
4. Activate the one-click measurement function.
5. Observe high-resolution video and record data;
6. Save the map and test results.
Notice
Make sure the power supply is 220V 50HZ.
• Use the specified capillary tubing size (outer diameter φ 1.4mm, inner diameter φ 1.0mm);
• Follow the heating rate setting range of 0.1 to 20 ° C;
• Regularly calibrate instruments to ensure accuracy;
Be aware of capacity limitations when storing data.
• Avoid high temperature burns during operation.
