Overview

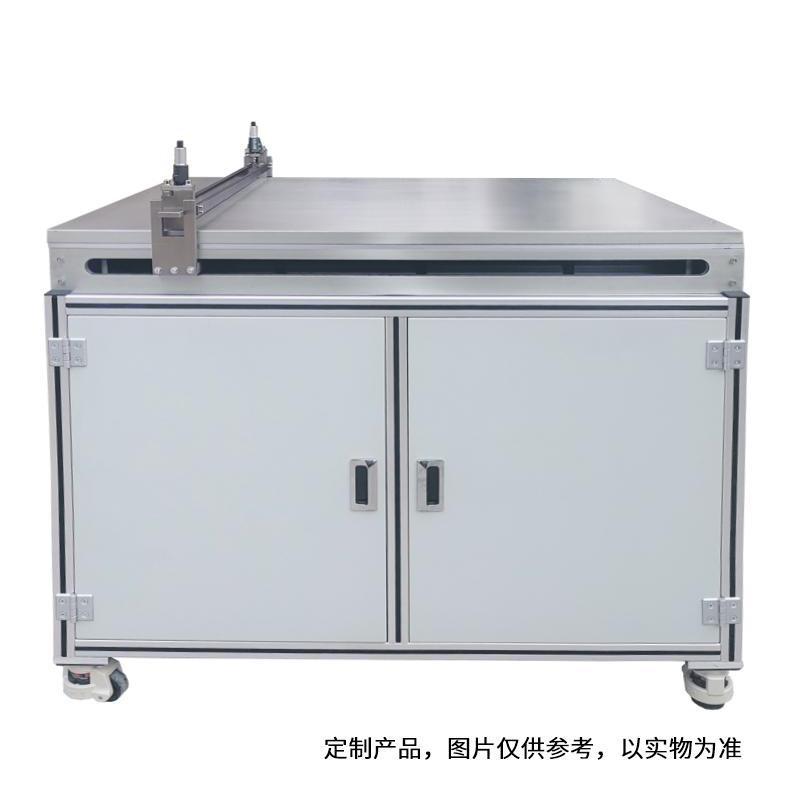

TBJ-B2-DJ16 drawdown Bar & Blade Floor-Standing Automatic Film Applicator is a customized model, Coating size 800 * 1000mm, Floor-Standing structure design, using bar and adjustable drawdown blade integrated coating method, Glass material countertop. Suitable for Coating, inks, polymer materials, film, glue, Pressure sensitive adhesive and other industries Moulding.
Features
1. Adopt bar and adjustable drawdown blade integrated coating method
2. Glass countertops
3. Floor-Standing structural design
4. drawdown blade can be lifted
5. Speed control infinitely variable speed
6. The coating table is made of aluminum alloy
7. Customizable features include automatic feeding, jet system devices, UV solid inclusion devices
Principle
The Automatic Film Applicator uses bar and adjustable drawdown blade integrated coating method to perform Spreader operation on Glass mesa. Using stepless variable speed to control the coating speed, the drawdown blade can be lifted and lowered to adjust the thickness of the Spreader to achieve accurate film prepative.
Applications
Coatings, inks, polymer materials, films, glues, Pressure sensitive adhesives
Standards
The host power supply meets the 220V 50Hz standard
Steps
1. Spreader materials
2. Select the bar model according to the requirements to determine the thickness of the Spreader
3. Set the coating speed in the range of 5~ 200mm/s
4. Adjust drawdown blade height to control Spreader thickness
5. Start the device for automatic filming
6. Clean the device after finishing the Spreader
Notice
• Blade Coating accuracy is +/- 0.05mm, pay attention to accuracy control during operation
• The meyer rod coating thickness range is determined according to the bar model
• Customized coating speed below 5mm/s
• Confirm that the power supply is 220V 50Hz before use
• Regularly check the operating status of the equipment
• Choose whether to install customization functions according to actual needs
