Overview

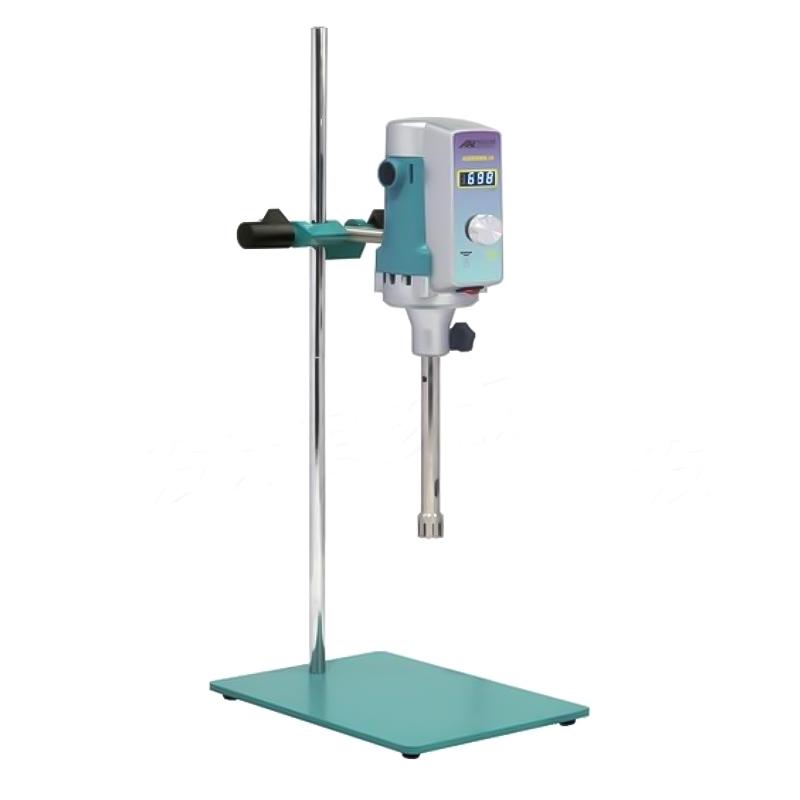

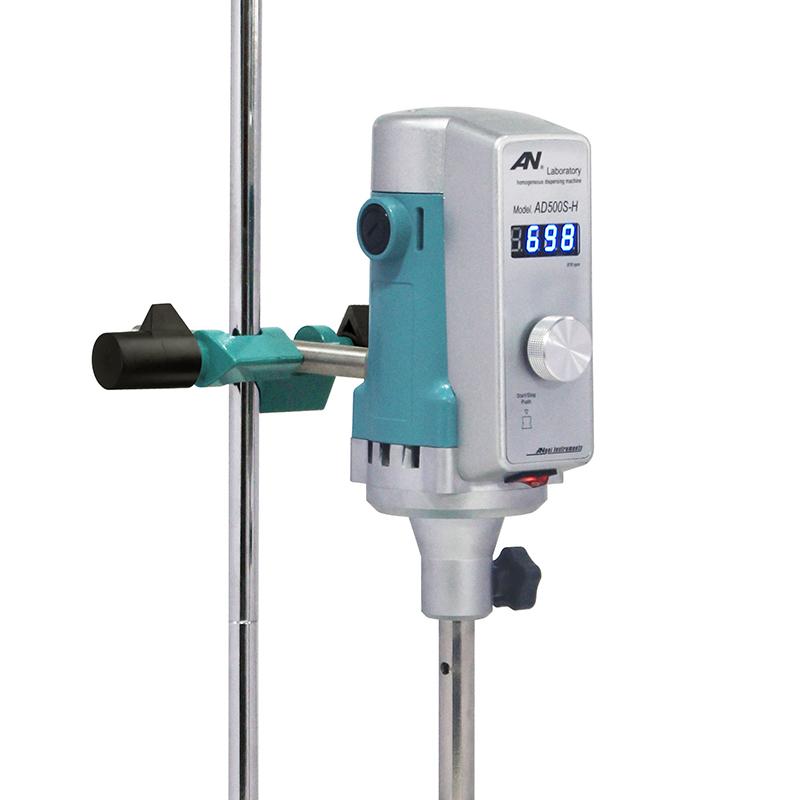

The ANGNI AD500S-H (36G) high-speed dispersion Mulser is driven by a compact series micro-high-speed motor, which is suitable for stirring and mixing of low to medium and high viscosity liquids in laboratories or pilot workshops, and shearing and emulsification of crushed granular materials in liquid media. The machine consists of a high-speed motor, a shearing emulsification head and a speed control controller.
Features
1. The drive main engine adopts die-casting aluminum alloy as the body, and the running state is stable.
2. The working head is made of high-quality stainless steel, with a wide range of experimental applications.
3. Rotation speed is controlled by the microprocessor, which can instantly and effectively compensate for the change of Rotation speed caused by load change and Power supply voltage fluctuation, and the constant speed is reliable;
4. Built-in soft start and automatic overload protection ensure the safety of continuous operation at full load for a long time.
5, Rotation speed stepless adjustment, to meet the experimental stirring Rotation speed at any time correction;
6. "H-type" digital display Rotation speed is intuitive, which provides convenience for experimental data collection; run timing control function to ensure that the timing of the experiment is effectively controllable.
Principle
The machine drives the shearing emulsification head through a high-speed motor to refine the experimental medium under the triple action of extrusion, strong Impact and depressurized expansion in the material liquid, and mix each other more evenly to prevent or reduce delamination with the material liquid.
Applications
In the field of biotechnology, tissue dispersion, sample preparation, enzyme treatment in the food industry, industrial, cosmetic industry, paints industry, and Petrochemicals, etc., the experimental aspects of liquid and liquid phases, liquid and solid phases, such as dairy products, beverages, cosmetics, pharmaceuticals, etc. Homogenization and emulsification processes in the production process.
Steps
1. Select the appropriate working head according to the experimental requirements.
Speed range is set between 2000~ 28000rpm for stepless speed regulation;
3. Set the Timer Range to control the running time within 1~ 1000min;
4. Start the equipment for mixing or shearing emulsification;
5. Rotation speed and running status of LED display.
Notice
• Permissible Ambient Temperature not exceeding 40 ℃;
• Allowable relative humidity not exceeding 80%;
• The minimum immersion liquid height is 65mm, and the maximum immersion liquid height is 175mm;
The maximum operating temperature is 120 ° C.
• Standard Processing capacity is 150~ 13000mL, the maximum processing viscosity is 7000cp;
• Make sure that the working head is made of SS316 stainless steel and the bearing material is PTFE;
• Note that the Rated voltage is AC220V, the rated Frequency is 50/60HZ, and the input Power is 850W.
