Overview

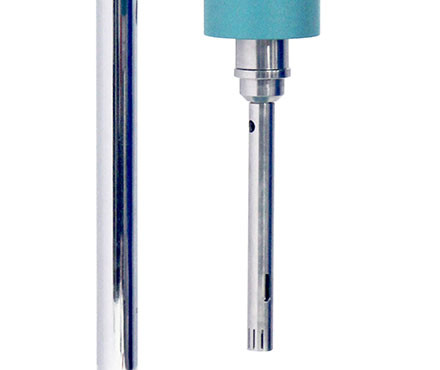

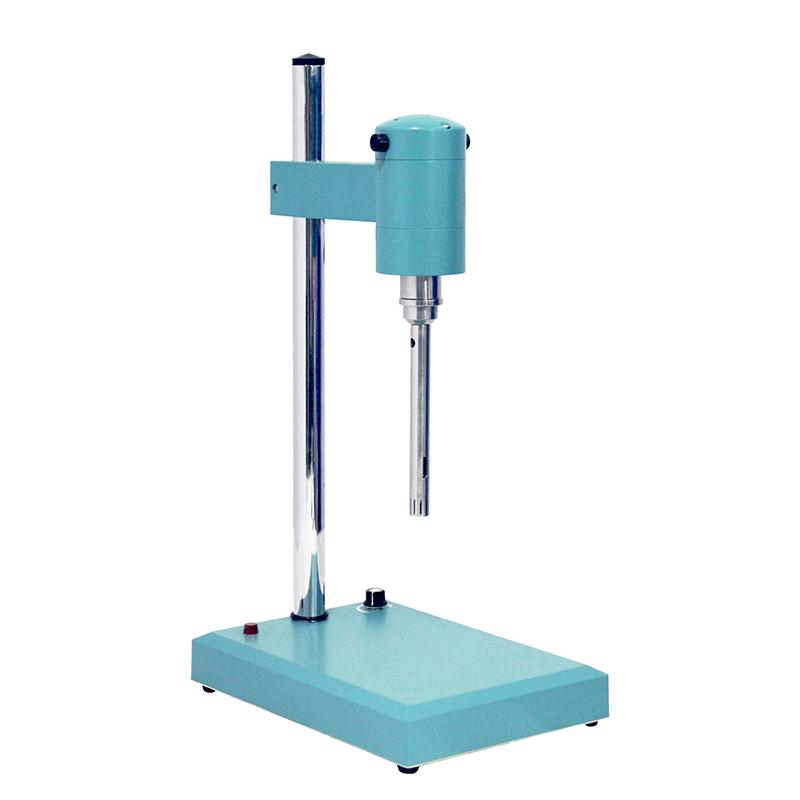

The ANGNI AD200L-P high-speed dispersion Mulser is driven by a compact series micro-high-speed motor, which is suitable for stirring and mixing of low to medium and high viscosity liquids in laboratories or pilot workshops, and shearing and emulsification of pulverized granular materials in liquid media. The machine consists of a high-speed motor, a shearing emulsification head and a speed control controller.
Features
1. The drive main engine adopts die-casting aluminum alloy as the body, and the running state is stable
2. The working head is made of high-quality stainless steel, with a wide range of experimental applications
3. Rotation speed is controlled by the microprocessor, which can instantly and effectively compensate for the change of Rotation speed caused by load change and Power supply voltage fluctuation
4. Built-in soft start and automatic overload protection ensure the safety of continuous operation at full load for a long time
5, Rotation speed stepless adjustment, to meet the experimental stirring Rotation speed at any time correction
6. "P-type" dynamic indicator
Principle
The device drives the shearing emulsification head through a high-speed motor to refine the experimental medium under the triple action of extrusion, strong Impact and depressurized expansion in the feed liquid, and mix each other more evenly to prevent or reduce delamination with the feed liquid.
Applications
Tissue dispersion in the field of biotechnology, sample preparation, enzyme treatment in the food industry, industrial, cosmetic industry, paints industry and Petrochemicals and other liquid and liquid phase, liquid and solid phase experiments, homogenization and emulsification processes in the production of dairy products, beverages, cosmetics, pharmaceuticals, etc
Steps
1. Select the appropriate working head size (12mm or 18mm) according to the experimental requirements.
2. Ensure minimum immersion liquid height: 35mm (12G) or 45mm (18G)
Speed range 300~ 23000rpm for stepless speed regulation
4. Start the equipment for mixing or shearing emulsification
5. Pay attention to the maximum immersion liquid height limit: 110mm (12G) or 150mm (18G)
Notice
• Duty Cycle S2-5min (intermittent operation)
• Maximum processing viscosity does not exceed 5000cp
• Maximum feed particle size: 11m/s (12G) or 15m/s (18G)
• Permissible Ambient Temperature ≤ 40 ℃
• Allowable relative humidity ≤ 80%
• Maximum operating temperature 120 ° C
• Pay attention to the minimum and maximum immersion liquid height restrictions of the working head
