Overview

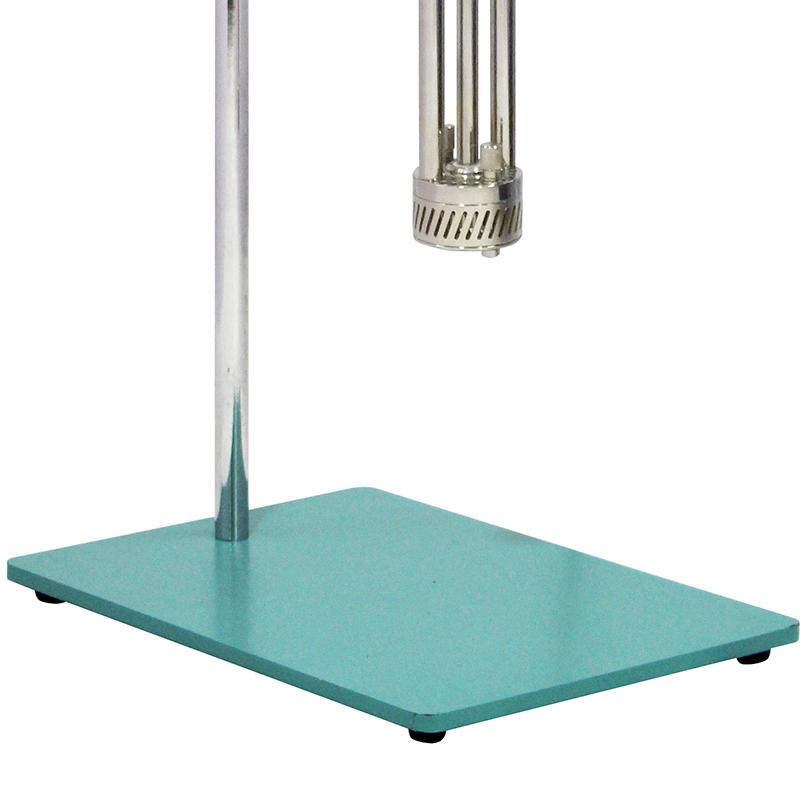

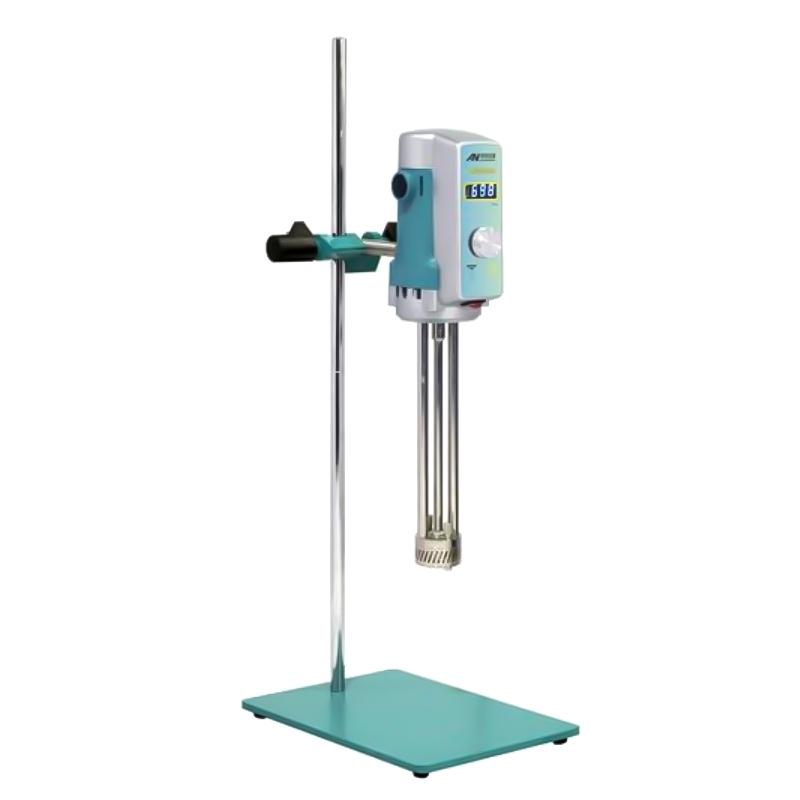

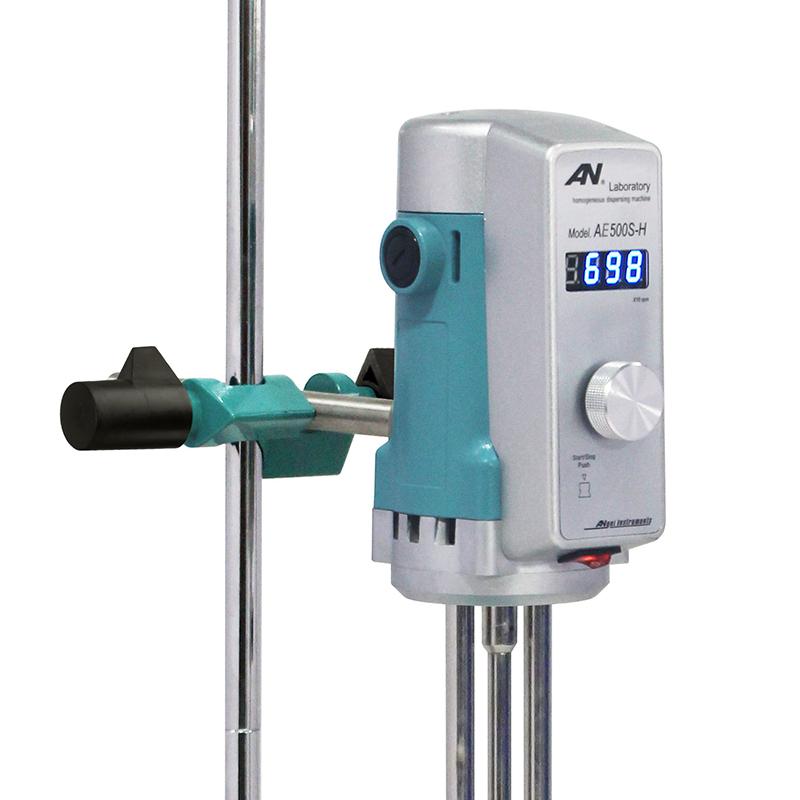

The ANGNI AE500S-H (50G) digital high-speed shear dispersion Mulser is driven by a compact series-excited micro-high-speed motor, which is suitable for stirring and mixing of low to medium and high viscosity liquids in laboratories or pilot workshops, and shearing and emulsification of crushed granular materials in liquid media. The machine consists of a high-speed motor, a shearing emulsification head and a speed control controller.
Features
1. The drive main engine uses good engineering plastics and die-casting aluminum alloys as the body, and the running state is stable
2. The working head is made of high-quality stainless steel, with a wide range of experimental applications
3. Rotation speed is controlled by the microprocessor, which can instantly and effectively compensate for the change of Rotation speed caused by load change and Power supply voltage fluctuation
4. Built-in soft start and automatic overload protection ensure the safety of continuous operation at full load for a long time
5, Rotation speed stepless adjustment, to meet the experimental stirring Rotation speed at any time correction
6. "H-type" digital display Rotation speed is intuitive, which provides convenience for experimental data collection; run timing control function to ensure that the timing of the experiment is effectively controllable
Principle
Through high-speed shearing, the experimental medium is refined under the triple action of extrusion, strong Impact and depressurized expansion in the material liquid, and mixed with each other more uniformly to prevent or reduce delamination with the material liquid.
Applications
Tissue dispersion in the field of biotechnology, sample preparation, enzyme treatment in the food industry, liquid and liquid phase, liquid and solid phase experiments in the industrial, cosmetic industry, paints industry and Petrochemicals, homogenization and emulsification processes in the production of dairy, beverages, cosmetics, and other products
Steps
1. Immerse the working head into the liquid medium to ensure that the minimum immersion height is 50mm and the maximum does not exceed 236mm.
2. Turn on the power supply and set the required Rotation speed and timing time
3. Start the equipment for shearing and emulsification operation
4. After the experiment is completed, turn off the power and clean the working head
Notice
• The height of the working head immersed in the liquid should be within the range of 50mm to 236mm
• Ambient Temperature must not exceed 40 ℃
• The relative humidity should not exceed 80%
• The maximum processing viscosity does not exceed 8000cp
• Processing capacity is 300~ 20000mL
• Pay attention to whether the overload protection function is normal when using it
