Overview

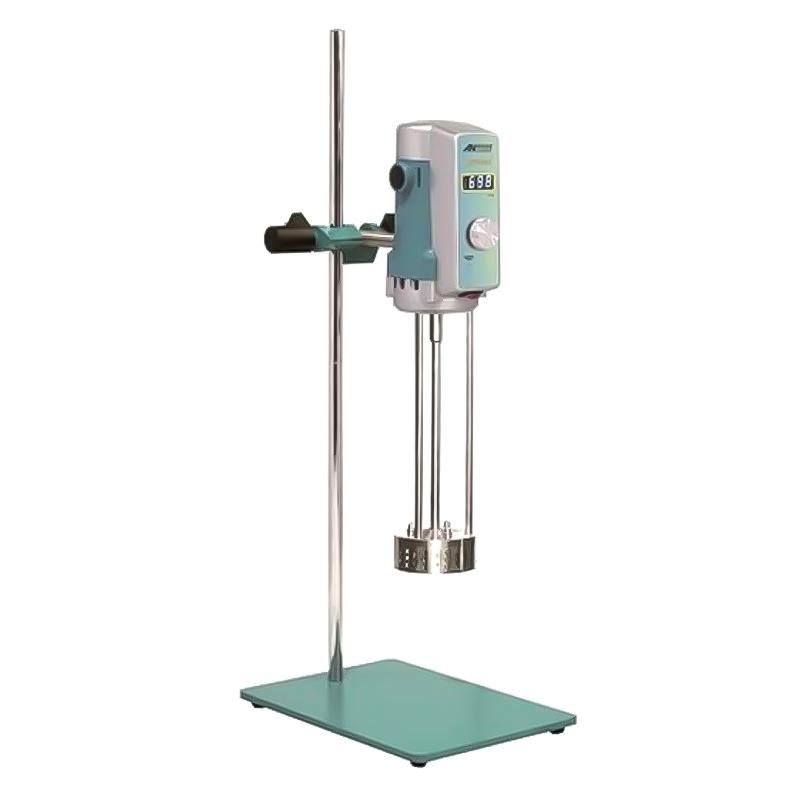

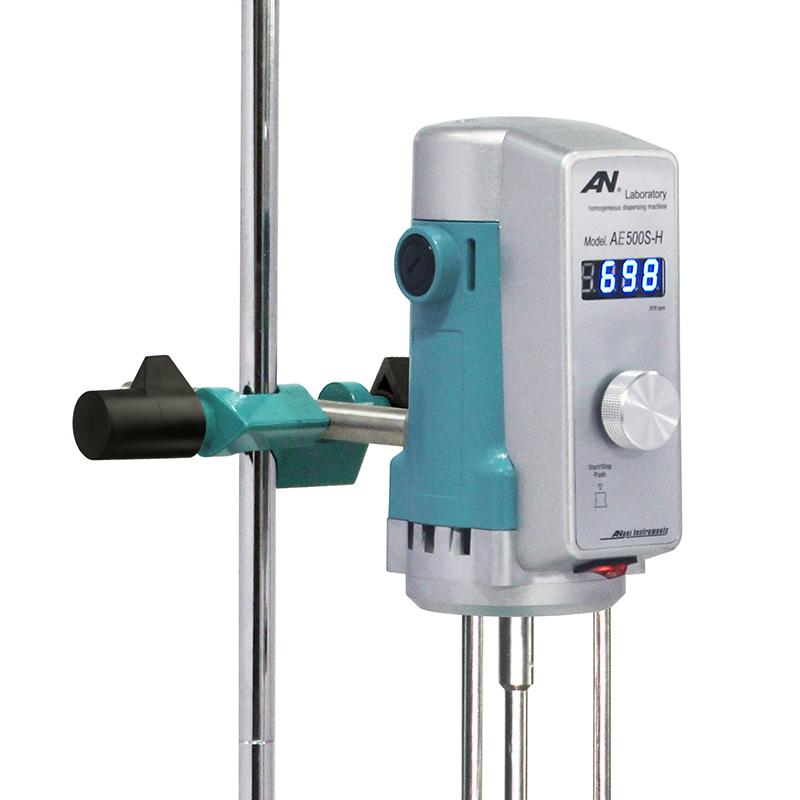

ANGNI AE500S-H (90G) High Speed Shear Dispersion Mulser is driven by a compact series motor, which is suitable for stirring and mixing of low to medium and high viscosity liquids in laboratories or pilot workshops, and for shearing and emulsification of crushed granular materials in liquid media. The machine consists of a high-speed motor, a shearing emulsification head and a speed control controller.
Features
1. The main engine is made of high-quality engineering plastics and die-casting aluminum alloys, with stable operation.
2. The working head is made of high-quality stainless steel, with a wide range of experimental applications.
3. Rotation speed is controlled by the microprocessor, which can instantly and effectively compensate for the change of Rotation speed caused by load change and Power supply voltage fluctuation, and the constant speed is reliable;
4. Built-in soft start and automatic overload protection ensure the safety of continuous operation at full load for a long time.
5, Rotation speed stepless adjustment, to meet the experimental stirring Rotation speed at any time correction;
6. "H-type" digital display Rotation speed is intuitive, which provides convenience for experimental data collection; run timing control function to ensure that the timing of the experiment is effectively controllable.
Principle
The device drives the shearing emulsification head through a high-speed motor to refine the experimental medium under the triple action of extrusion, strong Impact and depressurized expansion in the feed liquid, and mix with each other more uniformly to prevent or reduce delamination with the feed liquid.
Applications
Tissue dispersion in the field of biotechnology, sample preparation, enzyme treatment in the food industry, industrial, cosmetic industry, paints industry and Petrochemicals and other liquid and liquid phase, liquid and solid phase experiments, dairy products, beverages, cosmetics, and other products Homogenization and emulsification processes in the production process
Steps
1. Immerse the working head in the liquid medium to ensure that the immersion height is between 50mm and 236mm.
2. Turn on the power supply, set the required Rotation speed and timing time;
3, start the equipment, mixing or shearing emulsification operation;
4. After the operation is completed, turn off the power and clean the working head.
Notice
• Make sure that the height of the working head immersed in the liquid is not less than 50mm and not higher than 236mm;
• Ambient Temperature should not exceed 40 ℃ and relative humidity should not exceed 80%;
• To avoid overload operation, the equipment has built-in overload protection function;
• Clean the working head in time after use to keep the equipment hygienic;
• Regularly check the operating status of the equipment to ensure safety and reliability.
