Overview

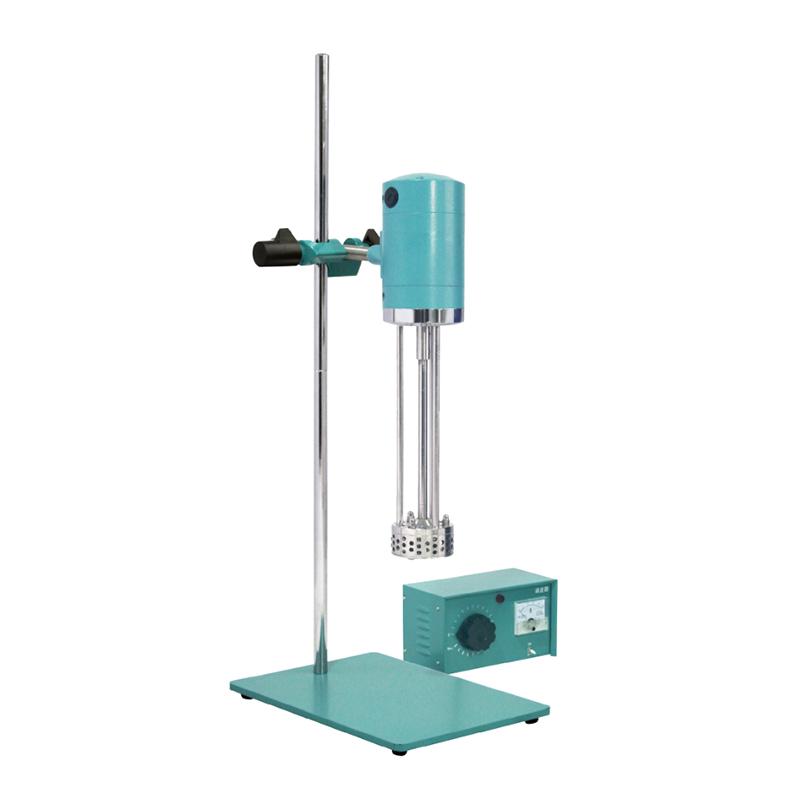

The AE300L-P high-speed shear dispersion Mulser is driven by a compact series micro-high-speed motor, which is suitable for stirring and mixing of low to medium and high viscosity liquids in laboratories or pilot workshops, and shearing emulsification of crushed granular materials in liquid media. The machine is composed of a high-density die-casting aluminum alloy drive motor for the body, a good stainless steel refined shearing emulsification working head and a speed control controller.
Features
1. Driven by a compact series-excited micro high-speed motor
2. Suitable for stirring and mixing of low to medium and high viscosity liquids
3. Have the function of shearing and emulsification of crushed granular materials in liquid medium
4. Adopt high-density die-casting aluminum alloy body
5. Equipped with good stainless steel refined shear emulsification head

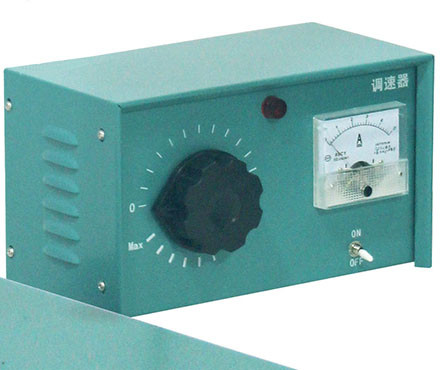

6. Equipped with a speed controller to achieve stepless speed regulation
7. Processing capacity 500~ 40000mL
8. Speed range 0~ 11000rpm
9. Maximum processing viscosity up to 8000cp
Principle

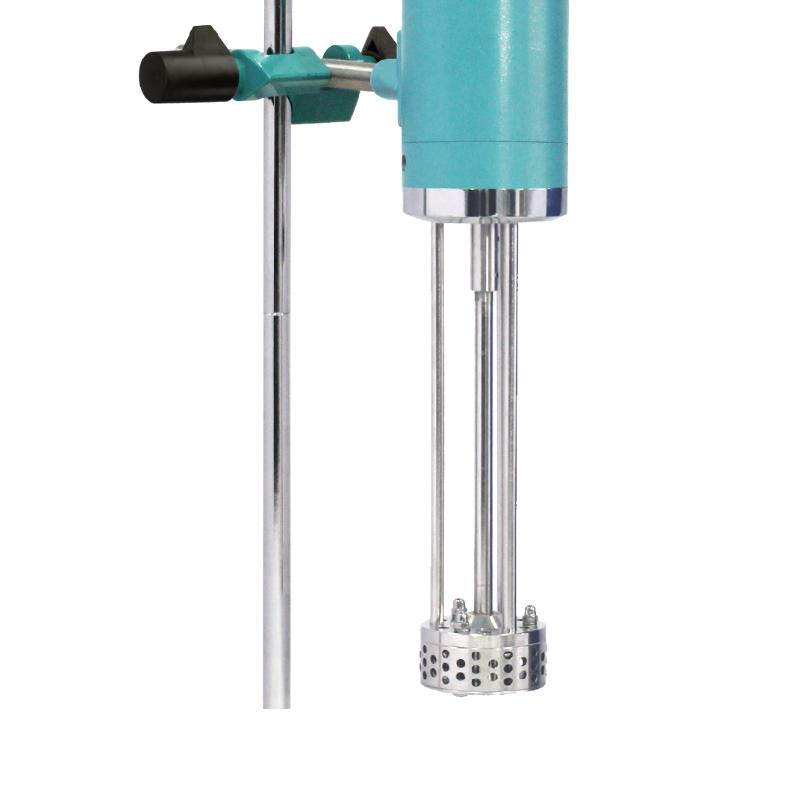

The high-speed shear dispersion Mulser is driven by a high-speed motor to shear emulsification working head. The precisely matched working head turns the stator to form high-frequency, strong circumferential tangential velocity, angular velocity and other comprehensive kinetic energy under the high-speed swirl/spin of the rotor, which prompts the experimental material to suck into the rotor area from the bottom of the experimental vessel and throw it out of the stator hole under the action of huge centrifugal force. The stator and rotor form strong and reciprocating hydraulic shear, friction, centrifugal extrusion, liquid flow collision and other comprehensive effects in a reasonable narrow gap. The experimental material is cyclically subjected to tens of thousands of shearing, tearing, impact and mixing per minute in the container, so as to achieve the effect of shear emulsification. Its efficiency is about a thousand times higher than that of ordinary stirring.
Applications
Tissue dispersion in the field of biotechnology, sample preparation, enzyme treatment in the food industry, liquid and liquid phase, liquid and solid phase experiments in the industrial, cosmetic industry, paints industry and Petrochemicals, homogenization and emulsification processes in the production of dairy, beverages, cosmetics, and other products
Steps
1. Power supply voltage AC 220V 50/60Hz
2. Select the appropriate stator specification according to the experimental requirements (standard configuration: 5mm ², 20mm ², 50mm ²)
3. Adjust the height of the working head immersed in the liquid (minimum 50mm, maximum 236mm)
4. Stepless speed regulation through speed controller (Speed range 0~ 11000rpm)
5. Start the device for shearing emulsification
6. Turn off the power after the operation is completed
Notice
• Duty Cycle is S1 (continuous), pay attention to continuous use time
• Permissible Ambient Temperature ≤ 40 ℃
• Allowable relative humidity ≤ 80%
• Pay attention to the height range of the working head immersed in the liquid (50mm~ 236mm)
• Be aware of the limit of the maximum processing viscosity of 8000cp
• Check whether the Power supply voltage meets AC 220V requirements before use
• Pay attention to the safety limit of the maximum linear speed of the rotor of 19m/s when operating
