Overview

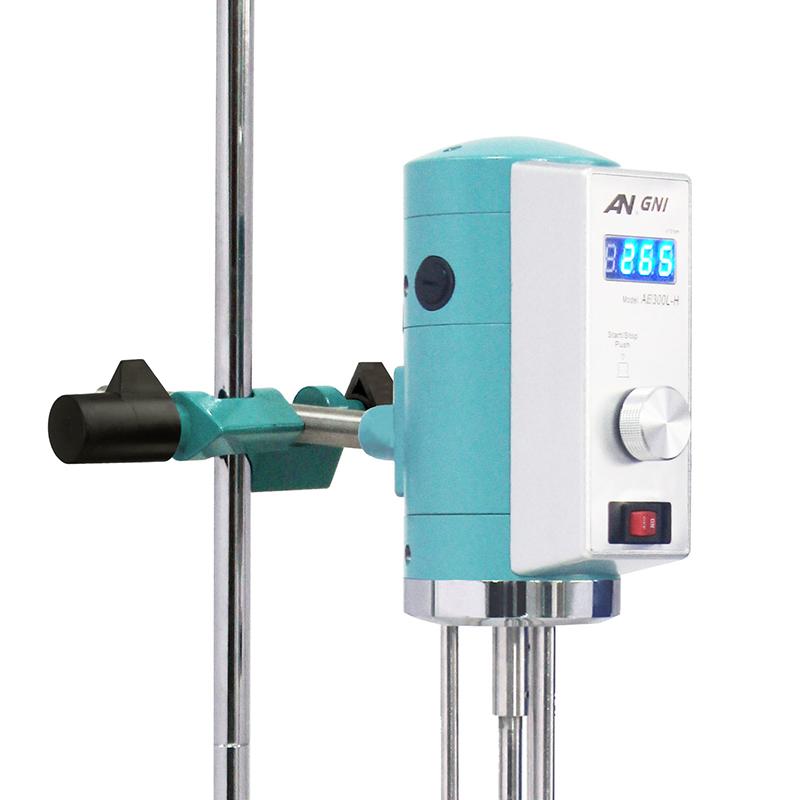

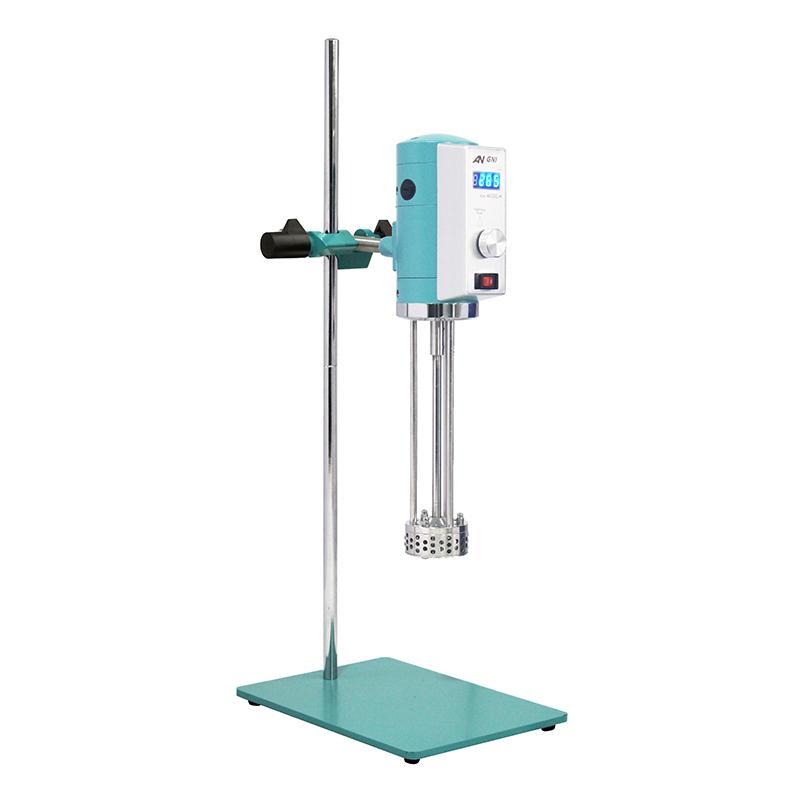

ANGNI AE300L-H high-speed shear dispersion Mulser is a digital and explicit laboratory shear Mulser, which is driven by a compact series micro high-speed motor. It is suitable for stirring and mixing of low to medium and high viscosity liquids in laboratories or pilot workshops, and shearing and emulsification of crushed granular materials in liquid media. The dispersion Mulser consists of a high-speed motor, a shearing emulsification head and a speed control controller.
Features
1. It has a running timing control function to ensure that the timing of the experiment is effectively controllable
2. The drive main engine uses die-cast aluminum alloy as the body, and the operating state is stable

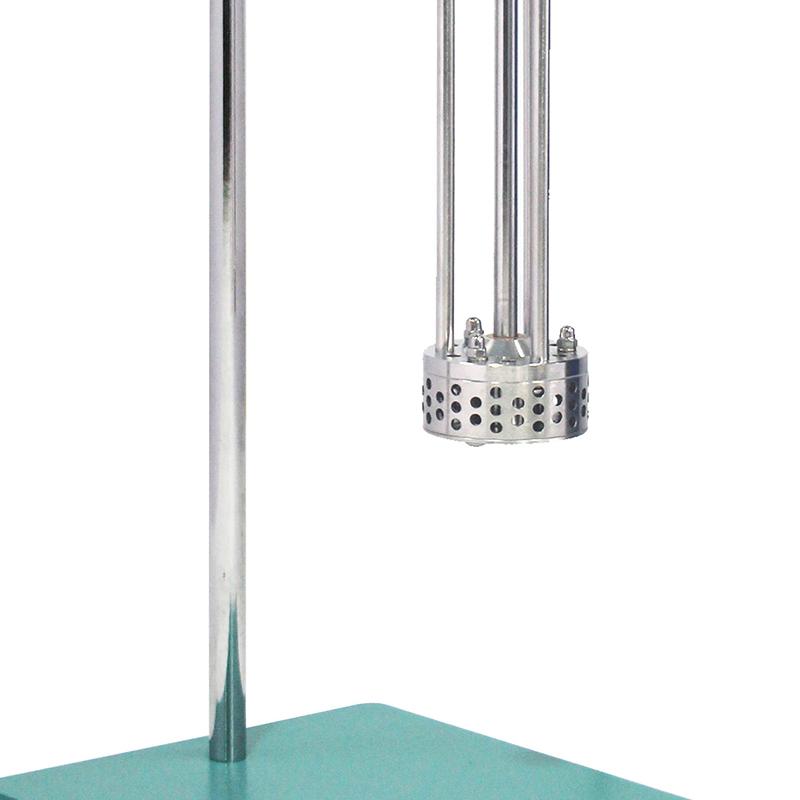

3. The working head is made of high-quality stainless steel, with a wide range of experimental applications
4. Rotation speed is controlled by the microprocessor, which can instantly and effectively compensate for the change of Rotation speed caused by load change and Power supply voltage fluctuation
5. Built-in soft start and automatic overload protection ensure the safety of continuous operation at full load for a long time
6, Rotation speed stepless adjustment, to meet the experimental stirring Rotation speed at any time correction
Principle
The device drives the shearing emulsification head through a high-speed motor to perform shearing emulsification treatment on granular materials in a liquid medium, realizing the functions of stirring, mixing and crushing.
Applications
Laboratory, pilot workshop
Steps
1. Adjust the support frame to the appropriate height
2. Immerse the working head in the liquid medium (immersion height 50-236mm)
3. Turn on the power switch
4. Adjust the required Rotation speed through the speed control knob (200-12000rpm)
5. Set the running time for experimentation
6. Turn off the power after the experiment is completed
Notice
• The height of the working head immersed in the liquid should be within the range of 50-236mm
• Ambient Temperature must not exceed 40 ℃
• The relative humidity should not exceed 80%
• Power supply voltage AC 220V 50/60Hz
• Maximum processing viscosity does not exceed 8000cp
• Ensure good heat dissipation when the equipment is running continuously
