Overview

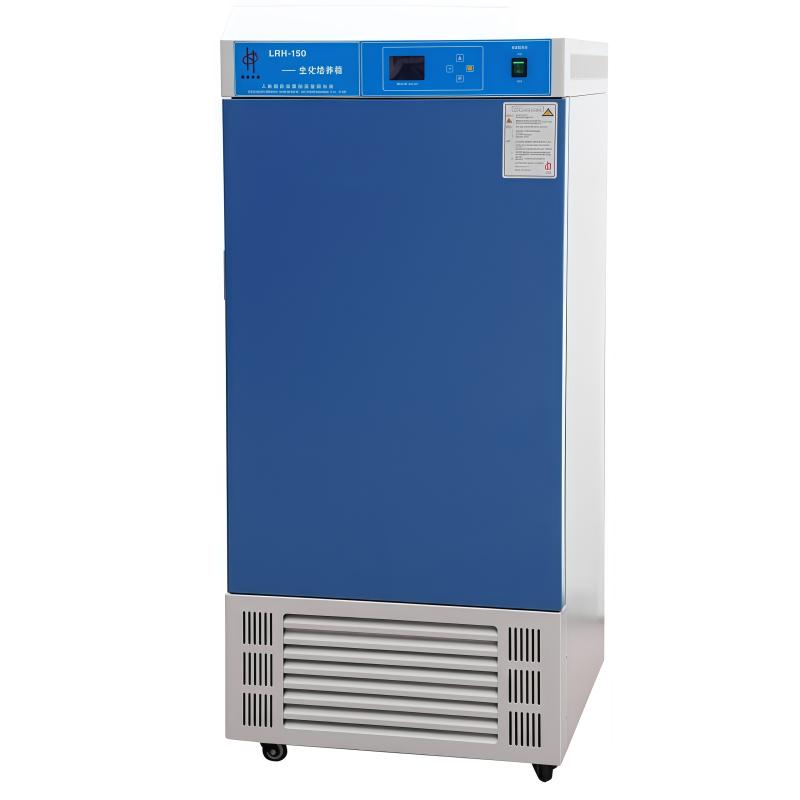

LRH-500F biochemistry cultivating box is a special thermostatic equipment produced by HUITAI brand, which is used for water analysis and BOD determination, fostering, preservation, cultivation and breeding experiments of bacteria and microorganisms. The product adopts a large LCD screen with clear and intuitive readings, and is equipped with imported brand Compressor and JAKEL pipe flow circulating fan to ensure uniform temperature in the box and long service life.
Features
1. Humanized design: Large-screen LCD display, multiple sets of data are displayed on one screen, the menu-type Operating interface is simple and easy to understand; Mirror stainless steel liner, four corners and half arc design is easy to clean, shelf spacing is adjustable; effective energy saving without fluorine refrigerant; optional test hole and door observation window.
2. Quality assurance: using brand Compressor, independent research and development of cooling system to extend life; JAKEL tube flow circulating fan and unique air duct structure to ensure Temperature uniformity; PID Control mode temperature control accurate fluctuations, with timing function.
3. Intelligent LCD programmable multi-stage controller: 15 segments and 30 steps can be programmed, and each setting time is 1 to 99 hours and 99 minutes, simplifying the complex test process.
4. Independent temperature limit alarm system: automatically interrupt operation and sound and light alarm when the temperature exceeds the limit to ensure the safety of the experiment.
5. Convenient data processing: With USB or RS485 interface, you can connect a printer or computer to record temperature parameter changes.
Principle
The biochemistry cultivating box precisely adjusts the temperature through PID Control mode, adopts Compressor cooling system and JAKEL pipe flow circulating fan with unique air duct structure to form a good air circulation system to ensure uniform and stable temperature in the box, and is suitable for fostering and testing in thermostatic environment.
Applications
Environmental protection, drug inspection, agricultural livestock, aquatic products and other scientific research, universities, production departments
Standards
Fluorine-free and environmentally friendly (with "F" type)
Steps
1. Connect the power supply to AC 220V 50Hz.
2. Set the Temperature range 0~ 65 ℃ and Timer Range 1~ 9999 minutes through the large LCD screen.
3. Optional programming controller presets multi-segment programs.
4. Place the sample on the adjustable shelf and start the equipment to run.
5. Monitor temperature fluctuations, high temperature +/- 0.3 ° C, low temperature +/- 0.5 ° C.
6. Turn off the power after the experiment.
Notice
• Recommended Ambient Temperature is 20 ° C, Humidity 50% RH.
• Avoid strong magnetic and vibration interference and ensure that the test is carried out under no-load conditions.
• Pay attention to environmental protection requirements when using refrigerants without fluorine.
• Optional temperature limit alarm system to prevent accidents.
• Regularly clean the liner and keep the equipment hygienic.
