Overview

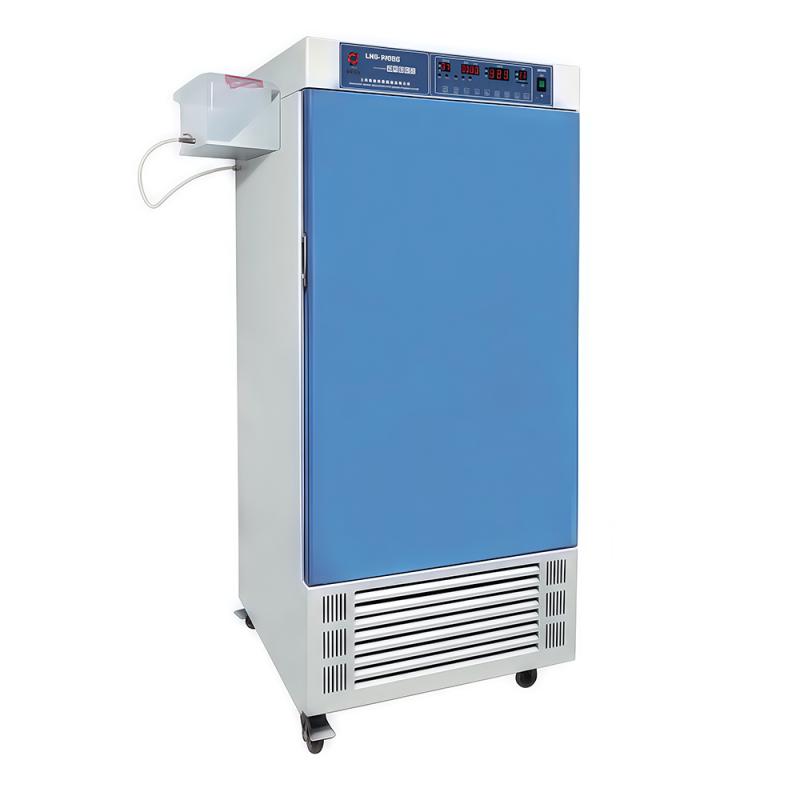

HUITAI LHS-250SC Constant Temperature and Humidity Chamber is a device with precise Temperature and Humidity Control system, which can provide various environment simulation conditions required for industrial research and biotechnology testing. It is widely used in sterility testing such as Spinning & weaving, Food processing, Stability inspection, and testing of raw material performance, product Encasement, product life of industrial products.
Features
1. Humanized design: large-screen LCD display, multiple sets of data one-screen display, menu-type Operating interface is simple and easy to understand; energy saving and environmental protection without fluorine refrigerant; mirror stainless steel liner is easy to clean, shelf spacing is adjustable; double-decked door structure Good insulation performance; optional test hole and box door observation window.
2. Quality assurance: brand Compressor and self-developed cooling system are used to extend the service life; JAKEL tube flow circulating fan and unique air duct ensure Temperature uniformity; International brand Humidity Sensor and built-in water tank electric heating tube humidification system ensure Humidity accuracy; PID Control mode Temperature control and humidity accurate fluctuations are small; 99 cycles of complex experimental programming are supported.
3. Independent temperature limit alarm system: automatically interrupt operation and sound and light alarm when the temperature exceeds the limit to ensure the safety of the experiment.
4. Convenient data processing: Optional USB or RS485 interface to connect to printer or computer to record temperature parameter changes.
Principle
The equipment realizes temperature control through brand Compressor and self-developed cooling system, and adopts JAKEL pipe flow circulating fan and unique air duct structure to establish an air circulation system to ensure uniform temperature in the box. Humidity control is realized through international brand Humidity Sensor and built-in water tank electric heating pipe humidification system, and PID Control mode ensures accurate and stable heat preservation Humidity.
Applications
Spinning & weaving, Food processing and other aseptic test, Stability inspection, Industrial product raw material performance test, Product Encasement test, Product life test
Steps
1. Set the Temperature and Humidity parameters through the Large Screen LCD Menu Operating interface.
2. Adjust the shelf spacing in the box as needed.
3. Start equipment operation, PID Control system automatically maintain temperature and Humidity stability.
4. Optional connection to USB or RS485 interface for data logging.
Notice
• The performance parameter test should be carried out under no-load, no strong magnetic and no vibration conditions.
• Ambient Temperature 20 ℃, Environmental humidity 50% RH.
• When the temperature exceeds the limit, the equipment will automatically interrupt operation and alarm, pay attention to safe operation.
• Some functions such as test holes, box door observation windows, and data processing interfaces are optional and need to be configured according to requirements.
