Overview
HUITAI LHS-500SC Constant Temperature and Humidity Chamber has a precise Temperature and Humidity Control system, which can provide various environment simulation conditions required for industrial research and biotechnology testing. The device adopts a user-friendly design, is equipped with a large-screen LCD display and a menu-type Operating interface, which is easy for users to operate.
Features

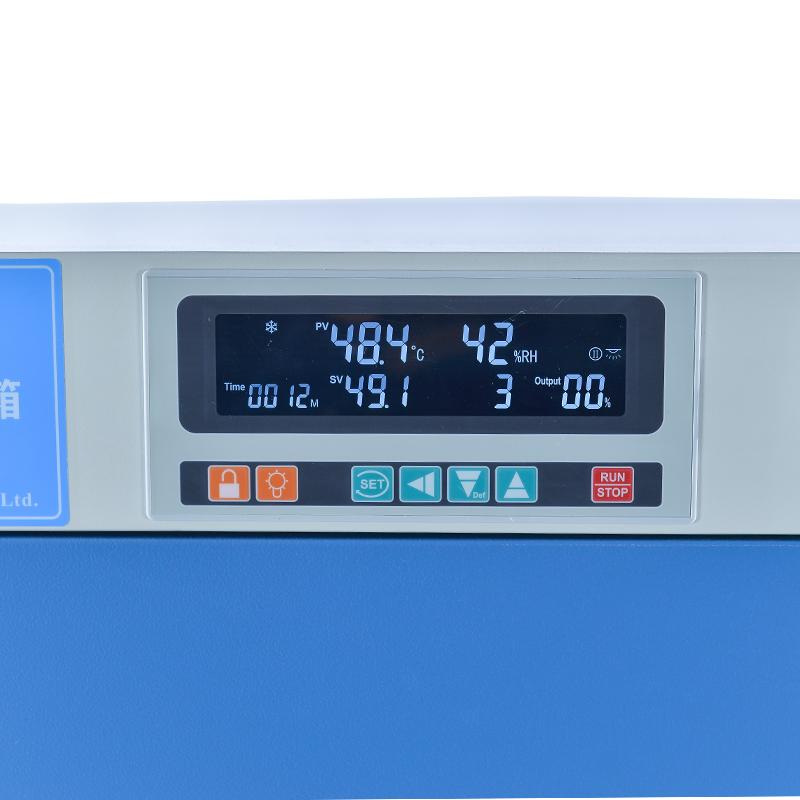

1. Humanized design: Large screen LCD display multiple sets of data, Menu Operating interface is simple and easy to understand; energy saving and environmental protection without fluorine refrigerant; mirror stainless steel liner is easy to clean, shelf spacing is adjustable; double-decked door structure has good thermal insulation performance; optional test hole and box door observation window
2. Quality assurance: brand Compressor and self-developed cooling system are used to extend the service life; JAKEL tube flow circulating fan ensures Temperature uniformity; International brand Humidity Sensor and built-in water tank electric heating tube humidification system ensure Humidity accuracy; PID Control mode Temperature and humidity control are accurate; 99 cycle programs meet complex experimental needs
3. Independent temperature limit alarm system: automatically interrupt operation and sound and light alarm when the temperature exceeds the limit
4. Convenient data processing: optional USB or RS485 interface to connect to printer or computer to record temperature parameters
Principle
Through the Compressor cooling system and JAKEL pipe flow circulating fan with unique air duct structure, a good air circulation system is formed to ensure the Temperature uniformity in the box. Humidity is controlled by the built-in water tank electric heating tube humidification system and the international brand Humidity Sensor, and the PID Control mode ensures the accurate and stable control of heat preservation Humidity.
Applications
Industrial Research, Biotechnology Testing, Spinning & weaving, Food processing and other aseptic testing, Stability inspection, Industrial product raw material performance testing, Product Encasement testing, Product life testing
Steps
1. Connect the AC 220V power supply
2. Set temperature and Humidity parameters through the large-screen LCD menu interface
3. Set Timer Range 1~ 9999 minutes
4, according to the need to adjust the shelf spacing
5. Start the device running
6. Monitor the experimental process through the observation window (optional)
7. Use test holes for experimental operation and measurement (optional)
8. Turn off the equipment after the experiment
Notice
• The performance parameter test needs to be carried out under no-load conditions
• The working environment should be free of strong magnetism and vibration
• Standard Ambient Temperature is 20 ℃
• Environmental humidity of 50% RH
• Power supply voltage AC220V 50HZ before use
• When the temperature exceeds the limit, the device will automatically interrupt operation and alarm
• Optional functions need to be configured separately
