Overview

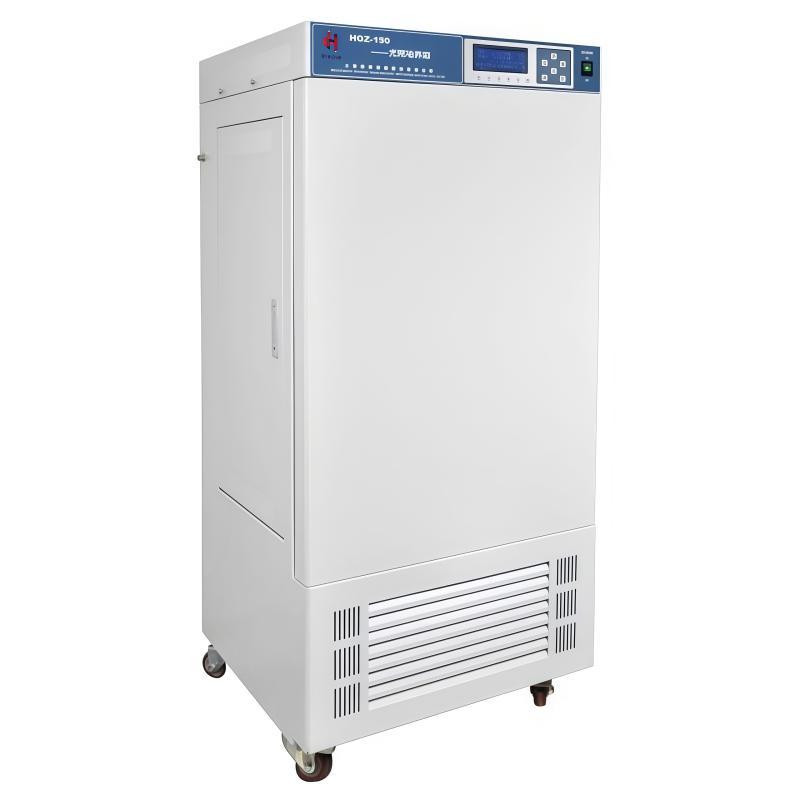

HUITAI HGZ-150 light chamber is a device used to simulate different environment climate conditions, which is widely used in the fields of microbial tissue cell fostering, seed germination, seedling experiment, plant cultivation, and insect and small animal feeding.
Features
1. Humanized design: large-screen LCD display, multiple sets of data one-screen display, menu-type Operating interface; use without fluorine refrigerant; mirror stainless steel liner, four corners and half arc design easy to clean, adjustable shelf spacing; double-decked door structure, good thermal insulation performance.
2. Quality assurance: using brand Compressor, independent research and development of Compressor cooling system; JAKEL tube flow circulating fan and unique air duct structure; three-sided lighting design, T4 incubator special lamp; microcomputer control temperature, Illumrination degree, temperature can be different day and night settings with light; PID Control mode; with 99 cycle programs, each cycle is divided into 30 sections, each section is 99 hours and 99 minutes cycle steps.
Continuous Operating Technology: Long-term continuous operation, Continuous Operating Time is not less than 360 hours.
4. Independent temperature limit alarm system (optional): If the temperature exceeds the limit, the operation will be automatically interrupted, and the sound and light alarm will prompt.
5. Convenient data processing (optional): With USB or RS485 interface, you can connect a printer or computer to record temperature parameter changes.
Principle

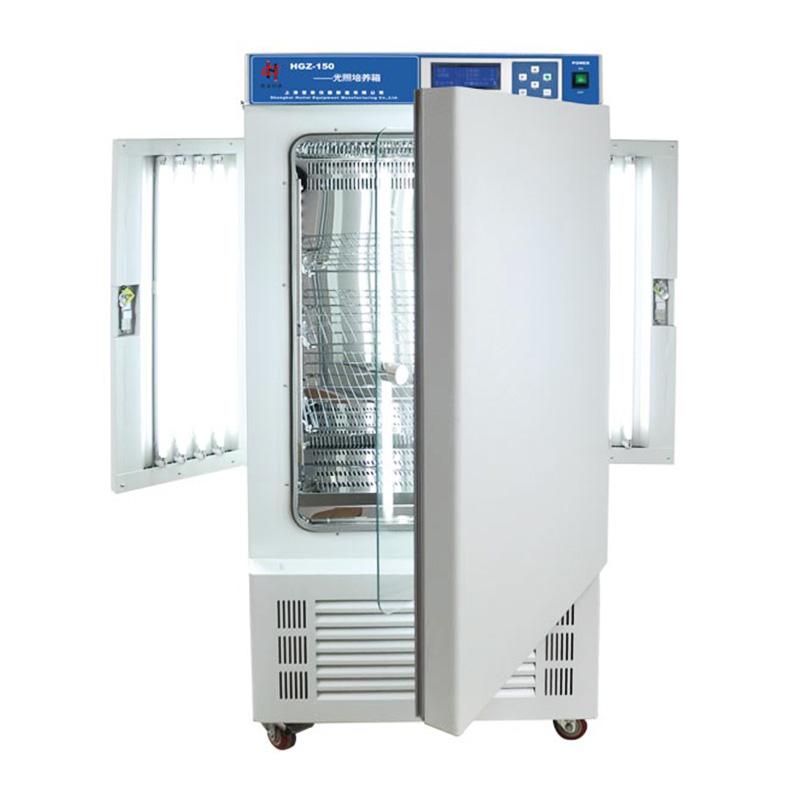

The light chamber precisely adjusts the temperature and illuminance through the microcomputer Control system, and adopts the PID Control mode to ensure that the temperature fluctuation is small. JAKEL tube flow circulating fan and unique air duct structure are used to manufacture the air circulation system to ensure the temperature uniformity in the box. The three-sided lighting design and T4 special lamp provide no dead angle light, the light intensity can be adjusted in six levels, and the temperature can be set differently day and night with or without the light.
Applications
Microbial tissue cell fostering, seed germination, seedling experiment, plant cultivation, insect feeding, small animal feeding
Steps
1. Connect the power supply and ensure that the voltage is AC220V 50Hz.

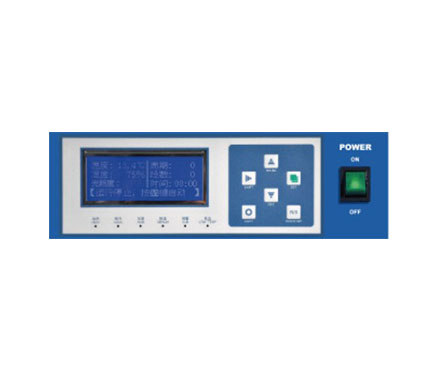

2. Set parameters such as temperature and Illumrination degree through large-screen LCD display and menu Operating interface.
3. Adjust the shelf spacing as needed.
4. Start the device, the microcomputer automatically controls the operation, and the periodic program can be set.
5. Monitor the running status, and choose an independent temperature limit alarm system to automatically interrupt and alarm when the temperature exceeds.
6. When the data processing function is optional, connect the external device to record data through the USB or RS485 interface.
Notice
• Ambient Temperature should be maintained at 5~ 30 ℃.
• The performance parameter test is carried out under no-load, no strong magnetic, no vibration conditions, Ambient Temperature 20 ℃, Humidity 50% RH.
• Use refrigerants without fluorine to ensure environmental protection and health.
• Optional features such as independent temperature limit alarm system and data processing interface require additional configuration.
• Customized non-standard product cycle is 30 to 40 working days after indent confirmation.
