Overview

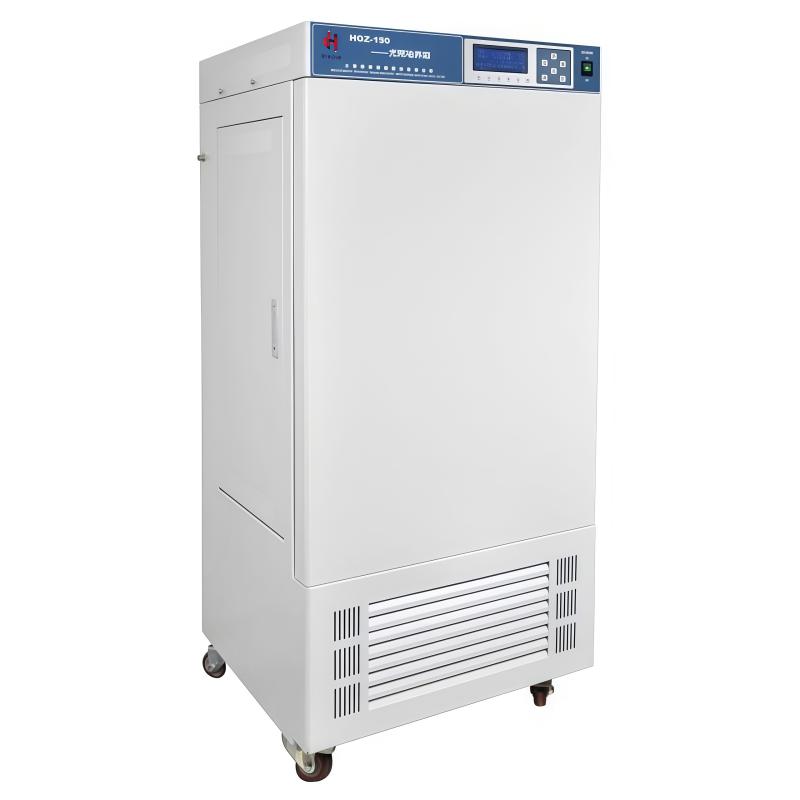

HUITAI HGZ-400 light chamber is a device used to simulate different environment climate conditions, which is widely used in the fields of microbial tissue cell fostering, seed germination, seedling test, plant cultivation, and insect and small animal feeding.
Features

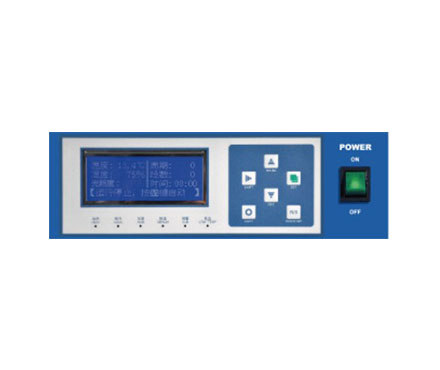

1. Humanized design: large-screen LCD display, multiple sets of data one-screen display, menu-type Operating interface is simple and easy to understand; use without fluorine refrigerant 134s and 406a, energy saving and environmental protection; mirror stainless steel liner is easy to clean, shelf spacing adjustable; double-decked door structure Good insulation performance.

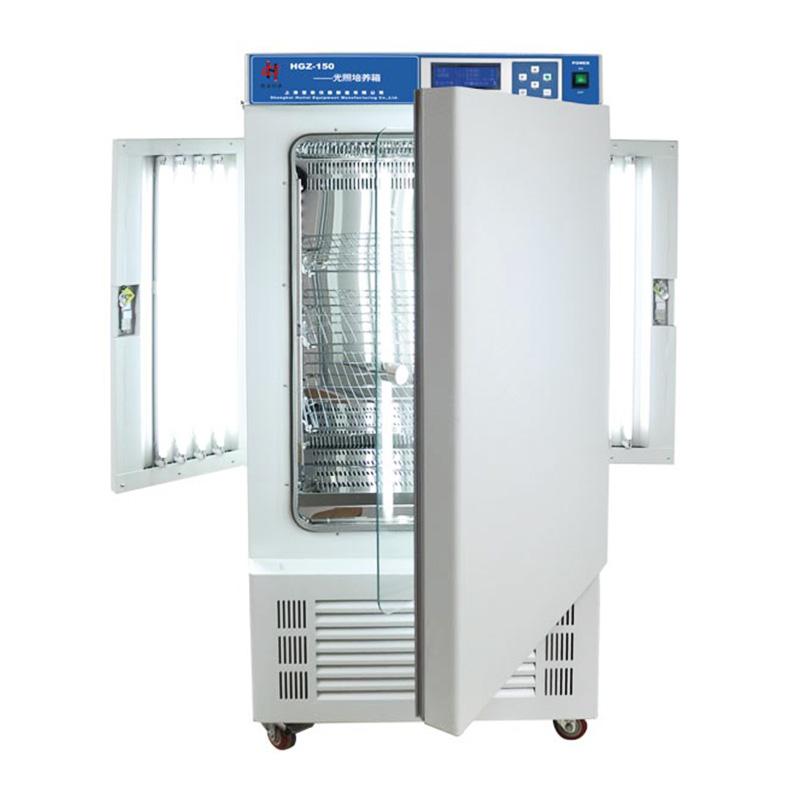

2. Quality assurance: brand Compressor and self-developed cooling system are used to prolong Compressor life; JAKEL tube flow circulating fan and unique air duct design ensure uniform temperature; three-sided lighting design, T4 special lamp to ensure light intensity without dead ends; microcomputer control temperature and illumination, support different settings day and night; PID Control mode accurate fluctuation is small; with 99 cycle programs, 30 cycles per cycle, 99 hours and 99 minutes per cycle.
3. Continuous operation technology: no less than 360 hours of continuous operation for a long time.
4. Independent temperature limit alarm system (optional): automatic interruption and sound and light alarm when the temperature exceeds the limit.
Convenient data processing (optional): USB or RS485 interface can be connected to a printer or computer to record temperature parameters.
Principle
The light chamber precisely adjusts the temperature and illumination through the microcomputer Control system, and adopts PID Control mode to achieve stable control. The built-in JAKEL tube flow circulating fan and unique air duct structure form an air circulation system to ensure uniform temperature in the box. The three-sided lighting design and T4 special lamp provide uniform lighting, support different settings day and night, and simulate natural lighting conditions.
Applications
Microbial tissue cell fostering, seed germination, seedling experiment, plant cultivation, insect feeding, small animal feeding
Steps
1. Connect the power supply to AC220V 50Hz.
2. Set parameters such as temperature and Illumrination degree through the menu-type Operating interface, and support different settings of day and night.
3. Adjust the shelf spacing as needed.
4. Start the equipment, monitor the operating status, and optional independent temperature limiting alarm system to ensure safety.
5. Optional USB or RS485 interface can be used to connect external devices to record data.
Notice
• Ambient Temperature should be in the range of 5~ 30 ℃.
• The performance parameter test is carried out under no-load, no strong magnetic, no vibration conditions, Ambient Temperature 20 ℃, Humidity 50% RH.
• Use refrigerants without fluorine and pay attention to environmental protection requirements.
• Optional accessories such as independent temperature controller, embedded printer, etc. require additional configuration.
• Customized non-standard product cycle is 30 to 40 working days after indent confirmation.
