Overview

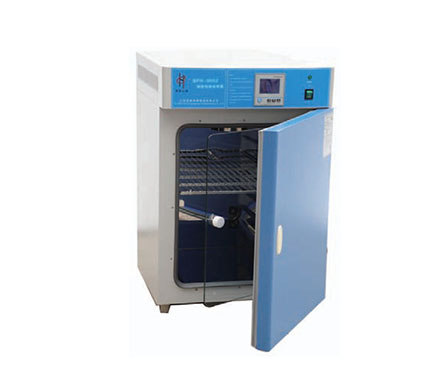

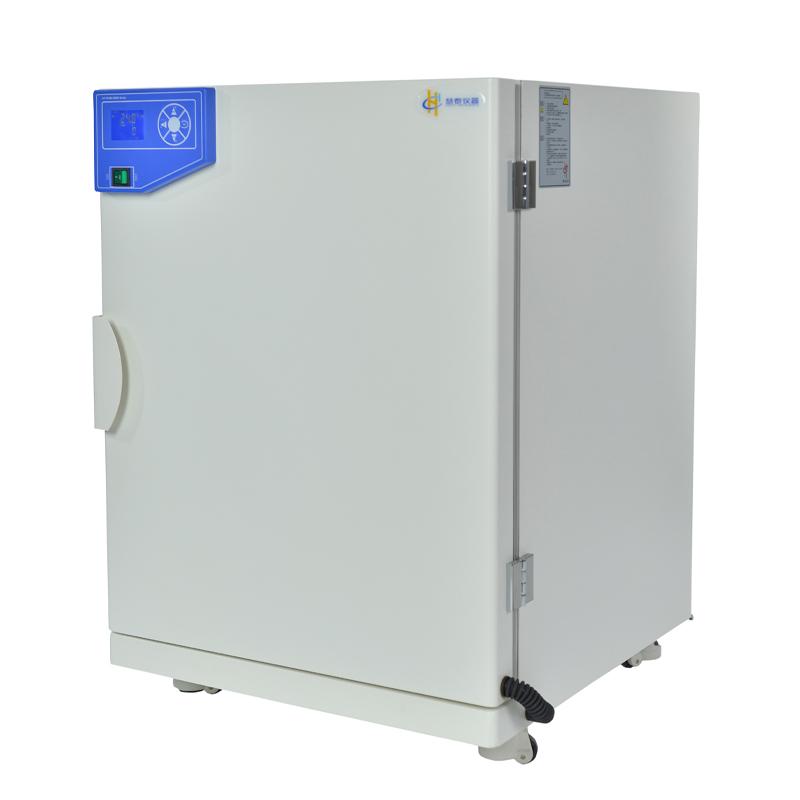

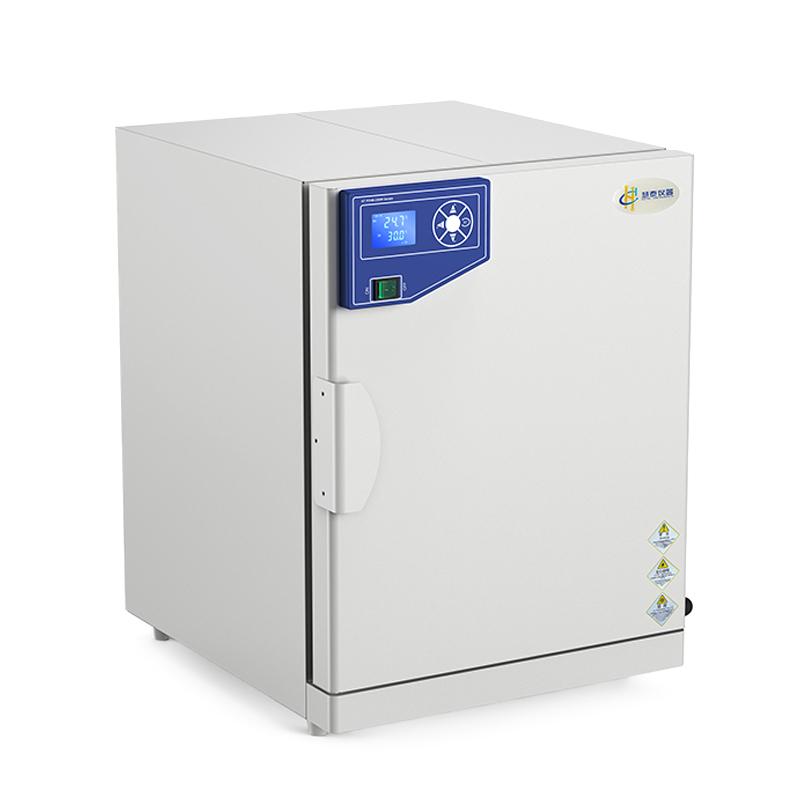

HUITAI BPH-9162 Precision thermostatic incubator is an experimental equipment specially designed for Universities & colleges, biology, agriculture, scientific research and other departments, suitable for scientific research needs such as storage of bacteria and biological foster. The equipment uses advanced technology to ensure accurate temperature control and stable working performance.
Features

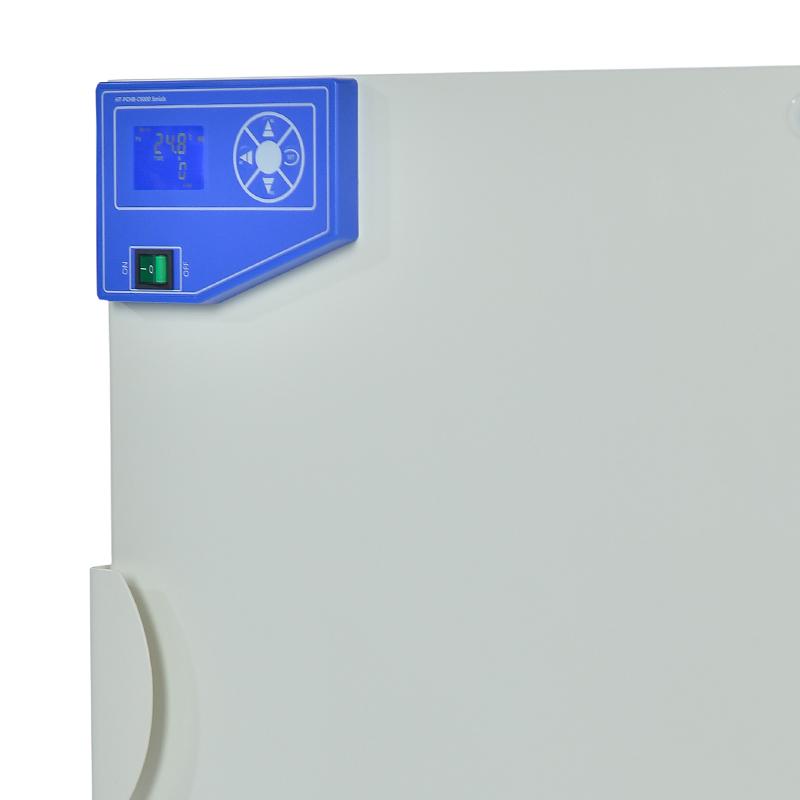

1. Large-screen LCD display, one-screen display of multiple sets of data, menu-type Operating interface, easy to understand and easy to operate (standard)

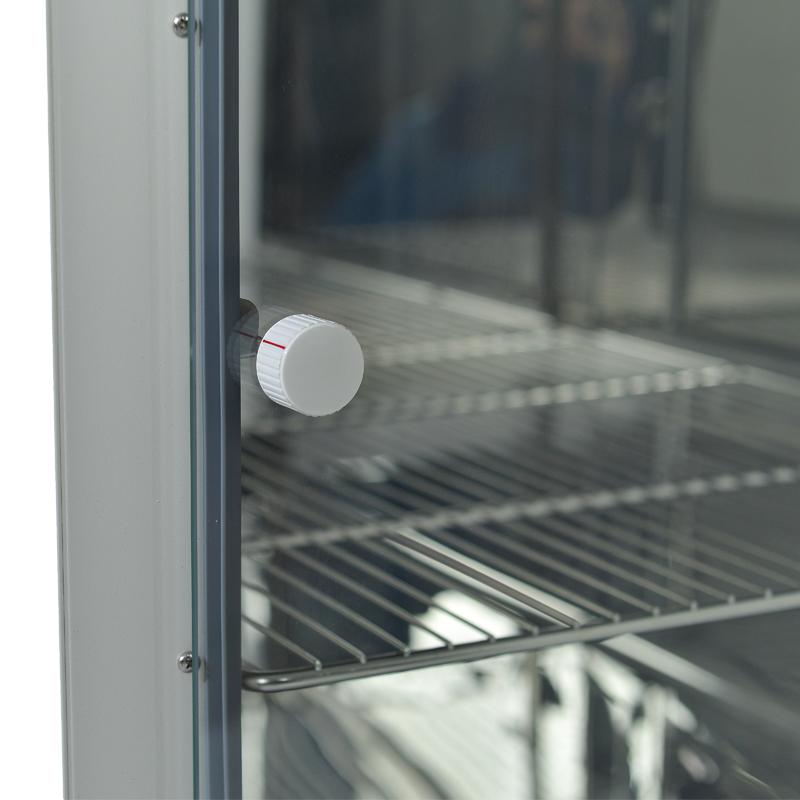

2. Double-decked door structure, good thermal insulation performance, does not affect the temperature inside the box when observing the situation inside the box
3, mirror stainless steel liner, four corners half arc design easy to clean, shelf spacing adjustable
4. Cold rolled steel plate, electrostatic spray on the surface
5. Heating mode of electric heating film, fast heating speed
6. Independent temperature limit alarm system, which automatically interrupts when the temperature exceeds the limit to ensure the safe operation of the experiment without accidents (optional)
7. With RS485 interface, it can be connected to a recorder and a computer, capable of recording changes in temperature parameters (optional).
Principle
The incubator quickly raises the temperature in the box through the electric heating film Heating mode, and uses a precision temperature control system to achieve thermostatic control. Temperature Fluctuation is only +/- 0.2 ° C to ensure the Stability of the foster environment. Double-decked door structure and thermal insulation design effectively reduce heat loss and maintain constant internal temperature.
Applications
Universities & colleges, biology, agriculture, research
Steps
1. Connect the power supply AC220V 50Hz
2. Set the required temperature parameters through the large-screen LCD menu
3, adjust the shelf spacing to adapt to foster goods
4. Set Timer Range 1~ 9999min (if required)
5, start the equipment to start thermostatic foster
6. Monitor internal conditions through observation windows without affecting temperature
Notice
• The performance parameter test is carried out under no-load conditions
Equipment working environment should be no strong magnetic, no vibration
• Standard test environment is 30 ℃, Humidity 50% RH
• Independent temperature limit alarm system is an optional function and requires additional configuration
• RS485 interface and dedicated software are optional functions
• Before use, please make sure that the Ambient Temperature is around 20 ℃
• Net weight of equipment 81Kg, pay attention to safety when handling
