Overview

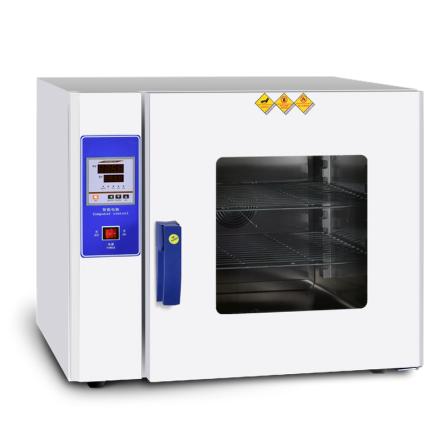

HUITAI DHG-9030A blast drying oven is a drying equipment for industrial and mining enterprises, laboratories, R & D institutions, etc., suitable for drying, baking wax melting, sterilizing and other purposes.
Features
1. Large-screen LCD display, one-screen display of multiple sets of data, menu-type Operating interface, easy to understand and easy to operate (standard)
2. Control mode of fan speed is adopted to improve the Temperature uniformity of the studio
3. Adopt the self-developed air duct circulation system to automatically discharge the water vapor inside the box without manual adjustment
4. Adopt microcomputer temperature controller with over-temperature deviation protection and digital display, with timing function, accurate and reliable temperature control
5. The liner is made of mirror stainless steel, the shelf bracket can be freely loaded and unloaded, and the semi-circular four-corner design makes cleaning more convenient
6. Cold rolled steel plate, electrostatic spray on the surface
7. Independent temperature limit alarm system, which automatically interrupts when the temperature exceeds the limit to ensure the safe operation of the experiment without accidents (optional)
8. With RS485 interface, the recorder and computer can be connected, and the change of temperature parameters can be recorded (optional).
Principle
The blower drying oven automatically discharges the water vapor inside the box through the fan speed Control mode, combined with the self-developed air duct circulation system, to achieve uniform distribution and precise control of the studio temperature.
Applications
Industrial and mining enterprises, laboratories, R & D institutions
Steps
1. Connect the power supply and ensure that the voltage is AC 220V 50Hz
2. Set temperature, time and other parameters through the large-screen LCD menu Operating interface
3. Start the equipment, the fan runs automatically, and the air duct circulation system starts to work
4. The equipment automatically controls the temperature and remains thermostatic after reaching the set value
5. Timing function can automatically end operation within 1~ 9999 minutes
Notice
• Power supply voltage check before use meets AC 220V 50Hz requirements
• Set temperature must not exceed Temperature range RT + 10~ 250 ℃
• Regularly clean the liner, using a semi-circular four-corner design for easy maintenance
• When selecting an independent temperature limit alarm system, pay attention to the over-temperature protection function
Avoid operating equipment in humid or flammable environments
