Overview

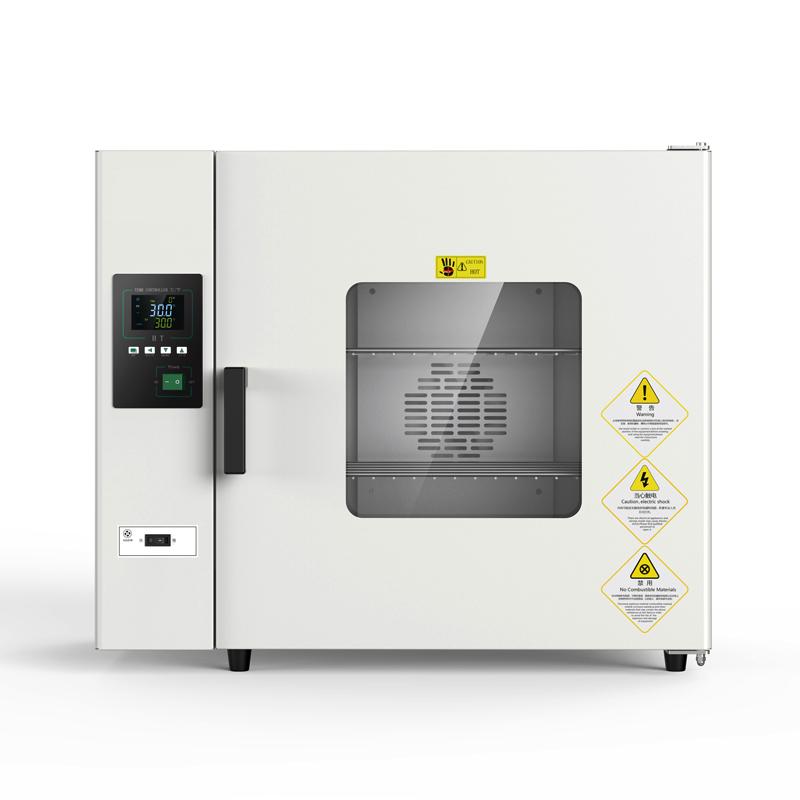

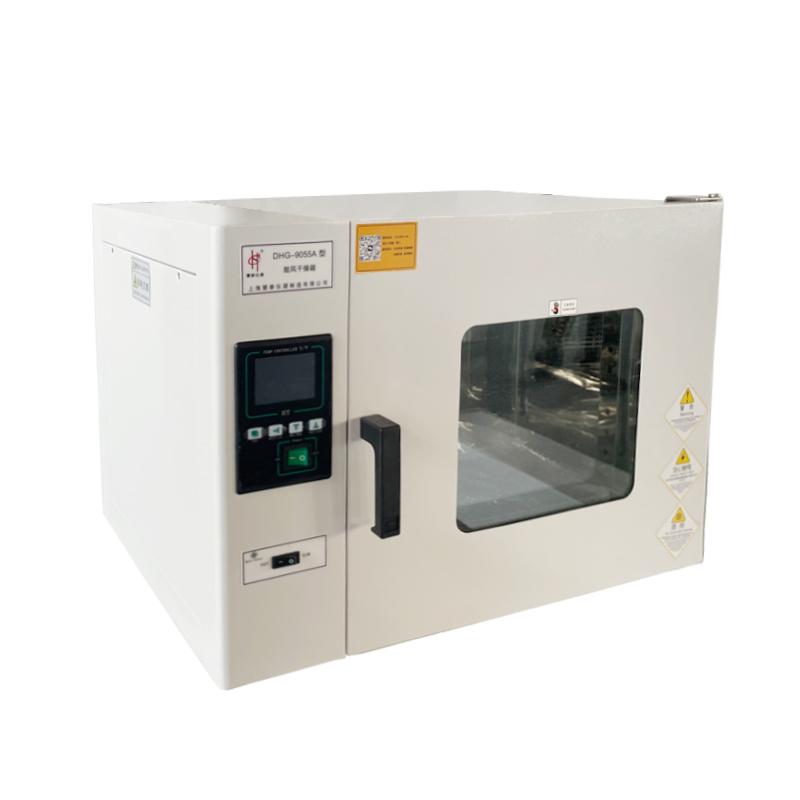

HUITAI DHG-9070A blast drying oven is a drying equipment for industrial and mining enterprises, laboratories, R & D institutions, etc., with drying, baking wax melting, sterilizing and other functions.
Features
1. Large-screen LCD display, one-screen display of multiple sets of data, menu-type Operating interface, easy to understand and easy to operate (standard)
2. Control mode of fan speed is adopted to improve the Temperature uniformity of the studio
3. Adopt the self-developed air duct circulation system to automatically discharge the water vapor inside the box without manual adjustment
4. Adopt microcomputer temperature controller with over-temperature deviation protection and digital display, with timing function, accurate and reliable temperature control
5. The liner is made of mirror stainless steel, the shelf bracket can be freely loaded and unloaded, and the semi-circular four-corner design makes cleaning more convenient
6. Cold rolled steel plate, electrostatic spray on the surface
7. Independent temperature limit alarm system, which automatically interrupts when the temperature exceeds the limit to ensure the safe operation of the experiment without accidents (optional)
8. With RS485 interface, the recorder and computer can be connected, and the change of temperature parameters can be recorded (optional).
Principle
Control mode of fan speed combined with self-developed air duct circulation system, to achieve uniform distribution of temperature in the studio, and automatically discharge the water vapor inside the box, through the microcomputer temperature controller to precisely control the temperature.
Applications
Industrial and mining enterprises, laboratories, R & D institutions
Steps
1. Power on AC 220V 50Hz
2. Set parameters such as temperature and time through the large-screen LCD display menu
3. Place the sample on the shelf
4. Start the device and start working
5. The equipment automatically controls the temperature and completes the work regularly
Notice
• Power supply voltage meets AC 220V 50Hz requirement
• Do not exceed the Temperature range RT + 10~ 250 ℃ when setting the temperature
• Regularly clean the liner and keep the equipment hygienic
• If you need over-temperature protection function, please choose an independent temperature limit alarm system
• Do not open the box door at will when the equipment is working
• Please set the Working time reasonably according to the Timer Range 1~ 9999min
