Overview

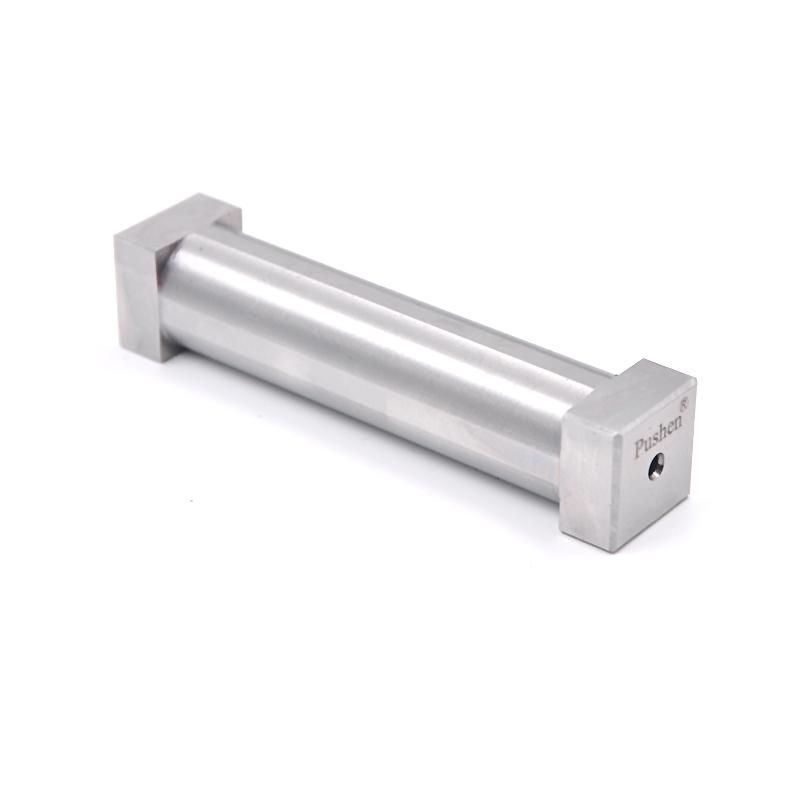

The PUSHEN 4-sided Film Applicator (Model: ZBQ 50-200um) is a laboratory-designed film tool for scraping uniform film layers of specified thickness and width on flat and solid substrates. It is made of hard stainless steel to ensure that the film applicator is not eroded by acid or alkaline substances in coatings or cleaning agents. It is widely used in paints, inks, varnishes, glues, cosmetics and other products for testing to control sample mass and evaluate Appearance characteristics such as Color, Gloss and hiding power.
Features
1. Material is stainless steel, acid and alkali erosion, to ensure long-term use Reliability.

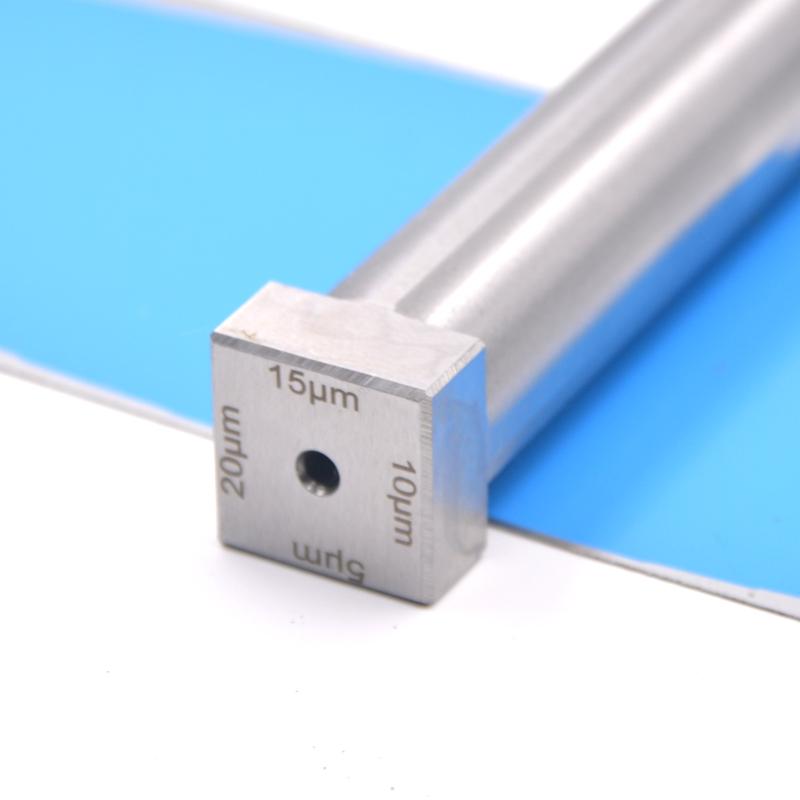

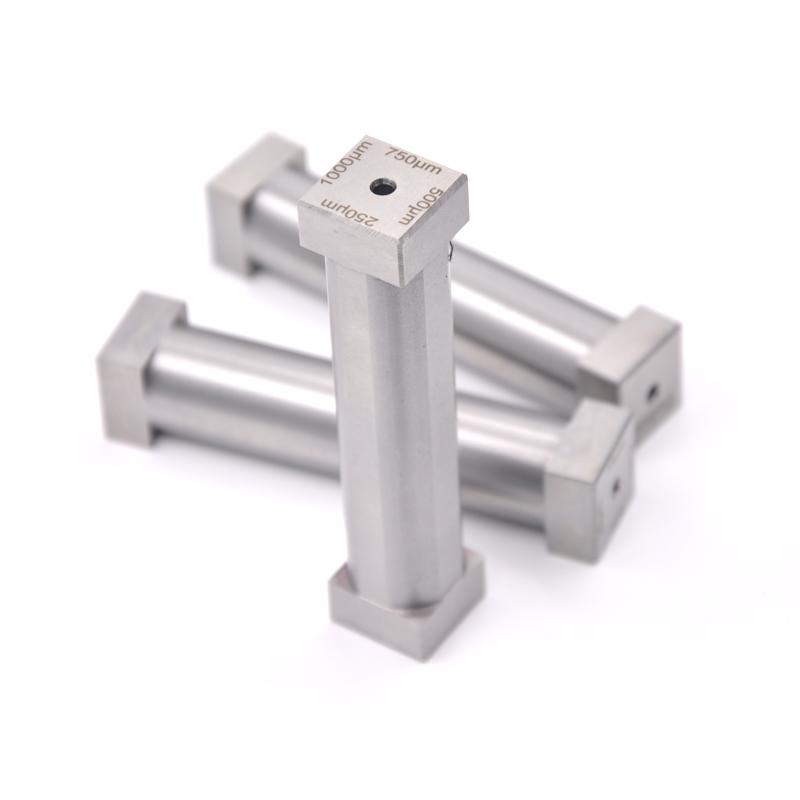

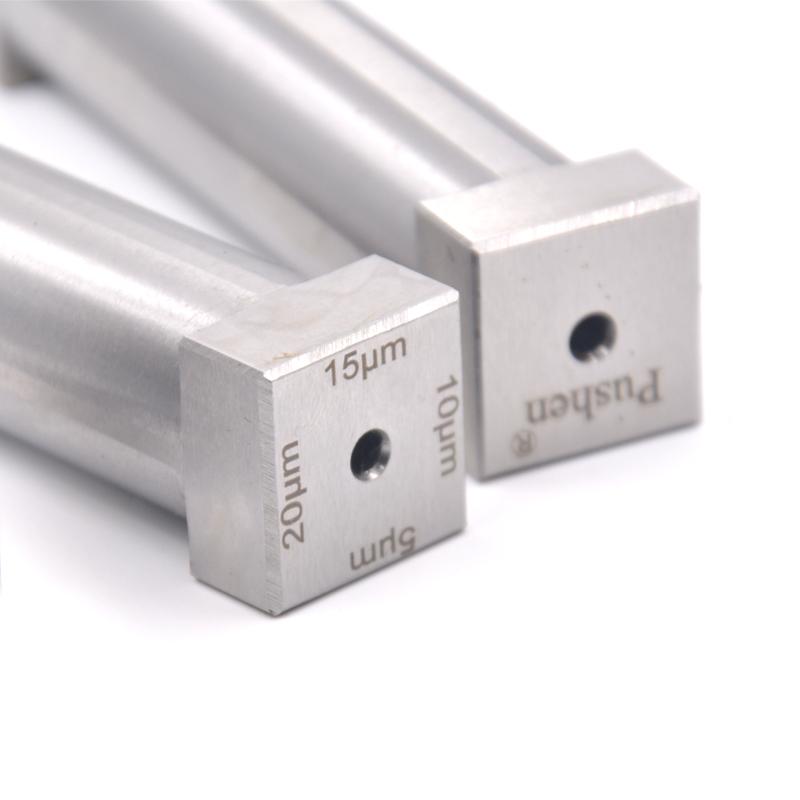

2. Multi-faceted design, can provide 4 different film thicknesses (such as 50/100/150/200μm), can be switched by simply changing the angle.
3. The application width is fixed as 80mm, the total length is 100mm, the weight is light (300g), and the operation is convenient.
4. Suitable for a variety of liquids or slurries, such as Coatings, inks, pigments, etc., to help determine particle size and dispersion.
5. Compact design, measuring 100 x 18 x 18mm, making it easy to use and store in the laboratory.
Principle
The 4-sided Film Applicator utilizes its High Accuracy fixed film thickness design by scraping on a flat substrate to prepare a uniform and controllable wet-film. Users simply switch the angle of the film applicator to select different film thicknesses to quickly obtain comparable pairs of samples for subsequent tests such as color, hiding power, or leveling evaluation.
Applications
Coatings, inks, dyestuffs, pigments, glues, cosmetics, plastics, Printing inks, paper, ceramics, food
Steps
1. Select a flat and solid substrate as the Spreader surface.
2. According to the test requirements, convert the angle of the 4-sided Film Applicator to select the desired film thickness.
3. Place the Applicator on the substrate and scrape evenly to form a wet-film.
4. Remove the Applicator, observe and record the film status for subsequent testing.
Notice
• Ensure that the substrate is flat and solid before use to avoid uneven film.
• When cleaning the film applicator, avoid using strong acid or strong alkaline cleaning agent to prevent corrosion.
• Pay attention to the gentle conversion angle during operation to prevent damage to the film thickness accuracy.
• Only suitable for laboratory environments, not for industrial mass production.

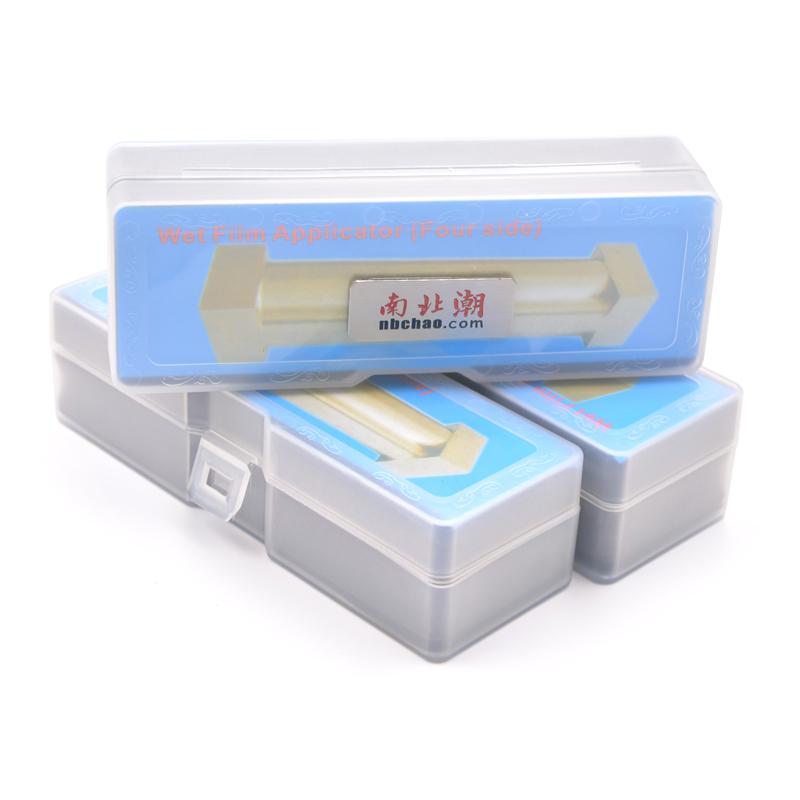

Keep drying during storage to avoid heavy pressure to maintain dimensional accuracy.
