Overview

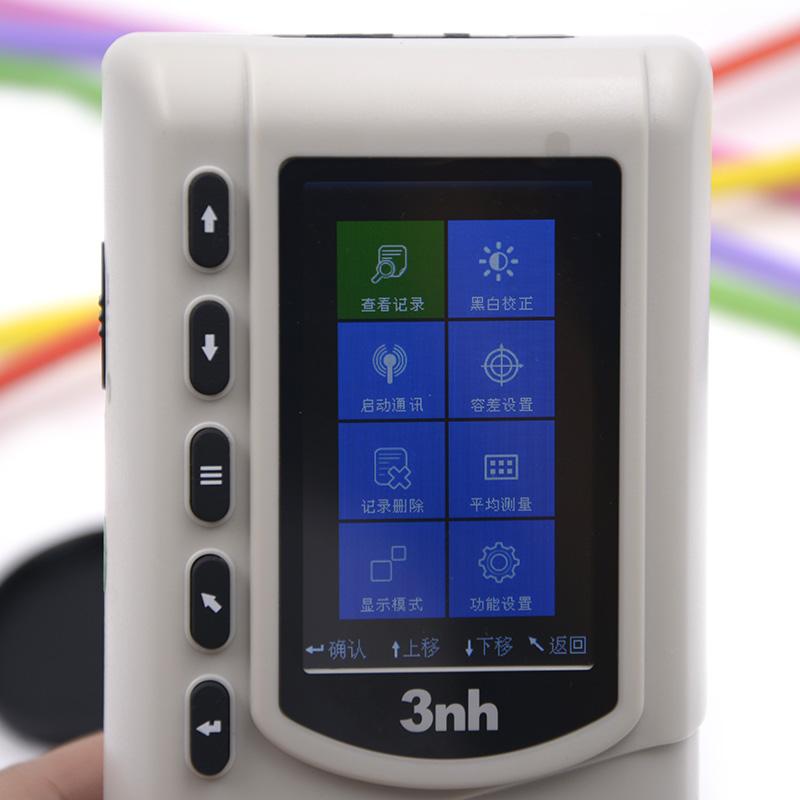

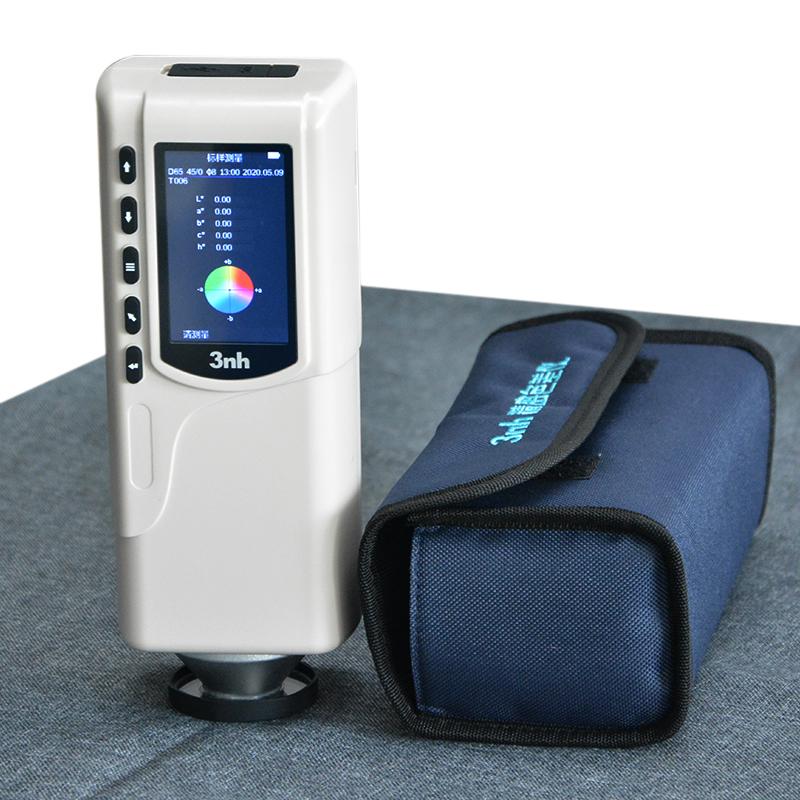

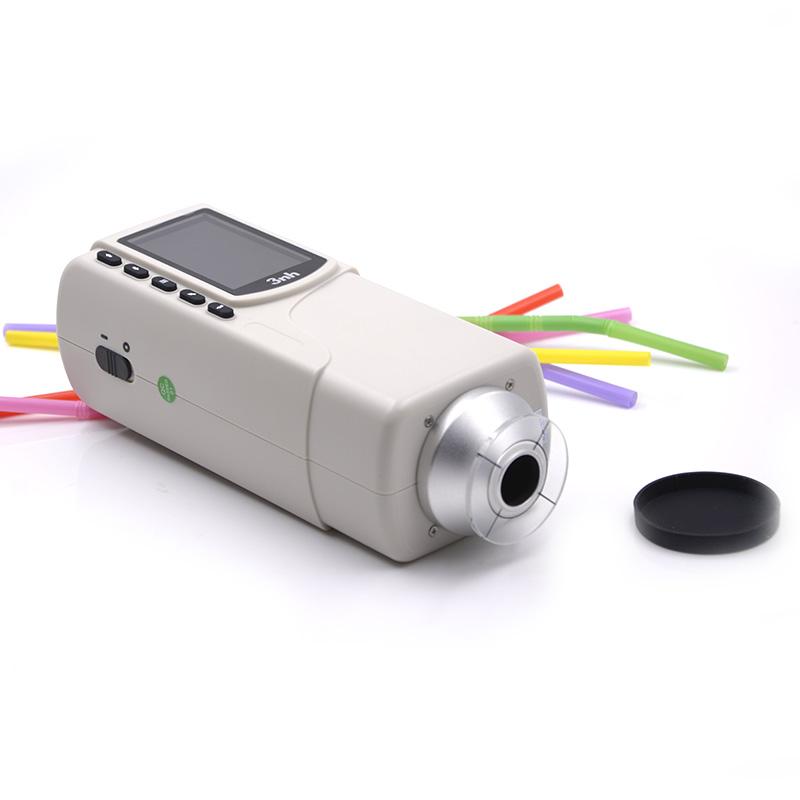

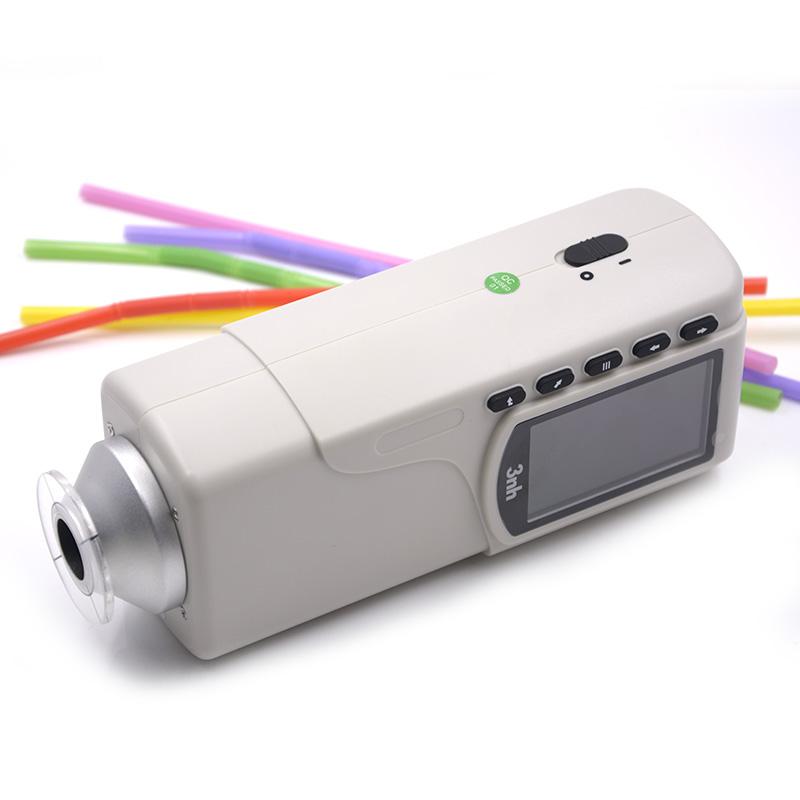

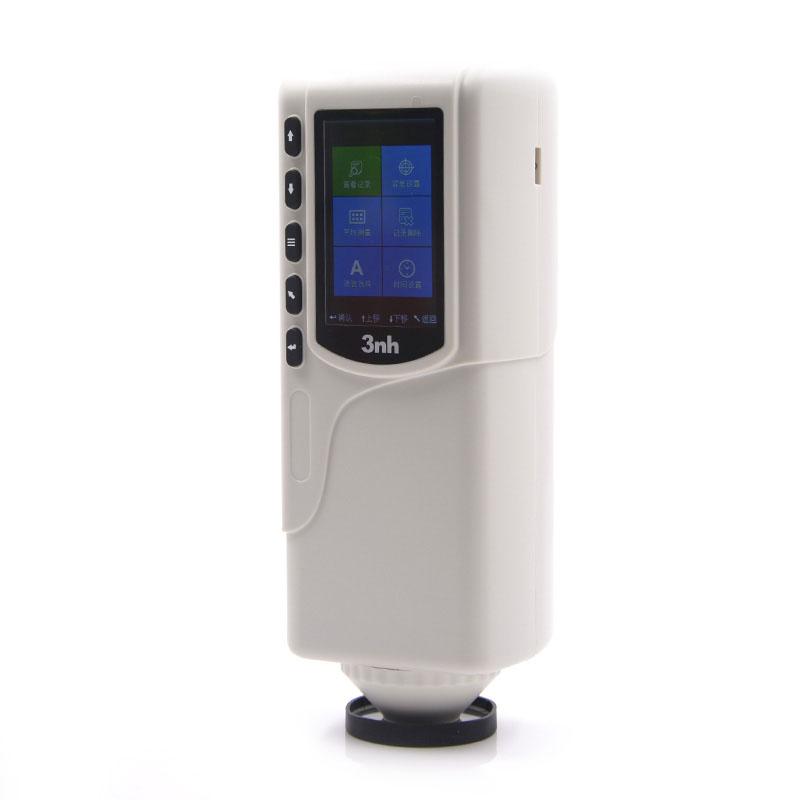

The NR145 Handheld color difference meter is designed with a white plastic shell and a vertical structure, with test buttons on the back, a large LCD screen on the front, and five operation buttons on the left. The instrument is ergonomic and suitable for handheld measurement of small area products without soiling the fuselage.
The NR145 Handheld color difference meter has an error value of ≤ 0.08Delta E * ab, ensuring that the measurement is within the standard range, using 45 °/0 ° Optical inspection geometry, powerful, and applying a number of innovative technologies to meet the accurate measurement of 45 ° illumination/0 ° reception in SCE mode.
Features
1. Built-in whiteboard parameters, no need for each calibration, to achieve fast boot measurement
2. Dual positioning: new technology of lighting positioning and precise positioning of cross architecture
3. Utilize three core technologies of super optical path, dynamic integration and measurement timing to improve measurement Stability and accuracy
4.45 °/0 ° Optical inspection geometric structure, the measured results are more consistent with the visual inspection effect
5.8Mm measurement diameter, vertical lightweight design, suitable for more measurement occasions
Principle
The NR145 Handheld color difference meter uses a 45 °/0 ° Optical inspection geometry to achieve measurement at 45 ° illumination and 0 ° reception in SCE mode. It uses LED Illuminant lighting to collect data through silicon photodiode sensors, combined with super optical path, dynamic integration and measurement timing core technology to ensure measurement stability and accuracy.
Applications
Any industry
Standards
CIE No.15、GB/T 3978
Steps
1. Quick measurement without calibration after boot
2. Use light positioning or cross architecture for precise positioning
3. Align the measurement part and trigger the back test button for measurement
4. View chromatic value, color difference value and other results through the LCD screen
Notice
• When the battery power is lower than 30%, it is recommended to replace the battery or charge it; turn off the machine when charging to prolong the Battery life
• Do not test immediately after the product is produced, leave it for 3-4 hours until the temperature is constant before measurement
• Measurement mode for complex parts to improve data accuracy
• Fixed measurement personnel, measurement location and measurement direction to achieve standardization
• Return to the factory for maintenance after accuracy problems; it is recommended to do manual black and white board correction at least once a week, or correct when the data is inaccurate
