Overview

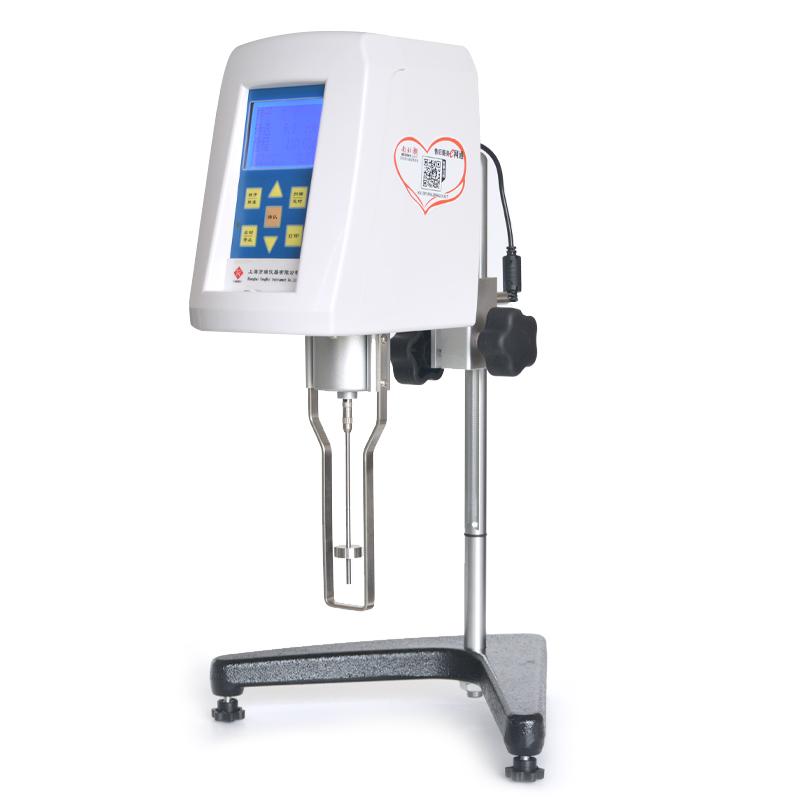

The FANGRUI NDJ-5S digital Viscometer adopts microcomputer drive technology, imported stepper motor and LCD backlight display. It has program setting and automatic control functions, which can realize smooth Rotation speed, good accuracy, easy operation, automatic scanning and error alarm. The screen directly displays information such as viscosity, Rotation speed, rotor number, percentile torque, maximum viscosity of range and liquid temperature. The instrument uses standard silicone oil for full scale and Linearity correction through PC interface to ensure high sensitivity, High Accuracy and High Repeatability, and the data is accurate and reliable. The absolute viscosity of Newtonian liquids or the apparent viscosity of non-Newtonian liquids can be determined, and the rheological performance of non-Newtonian liquids can be analyzed with software.
Features
1. The measurement data is displayed directly on the LCD screen without secondary calculation.
2. Using microcomputer drive technology and imported stepper motor, Rotation speed is accurate, stable and reliable.
3. Adopt professional switching power supply technology, wide voltage and Frequency range, power fluctuation does not affect Measurement accuracy.
4. The whole machine is designed in one machine, making it easy to operate and reliable.
5. Optional No. 0 rotor, accurate test of 0.1~ 100mPa · s ultra-low viscosity value.
6. Optional temperature sensor, real-time measurement of sample temperature.

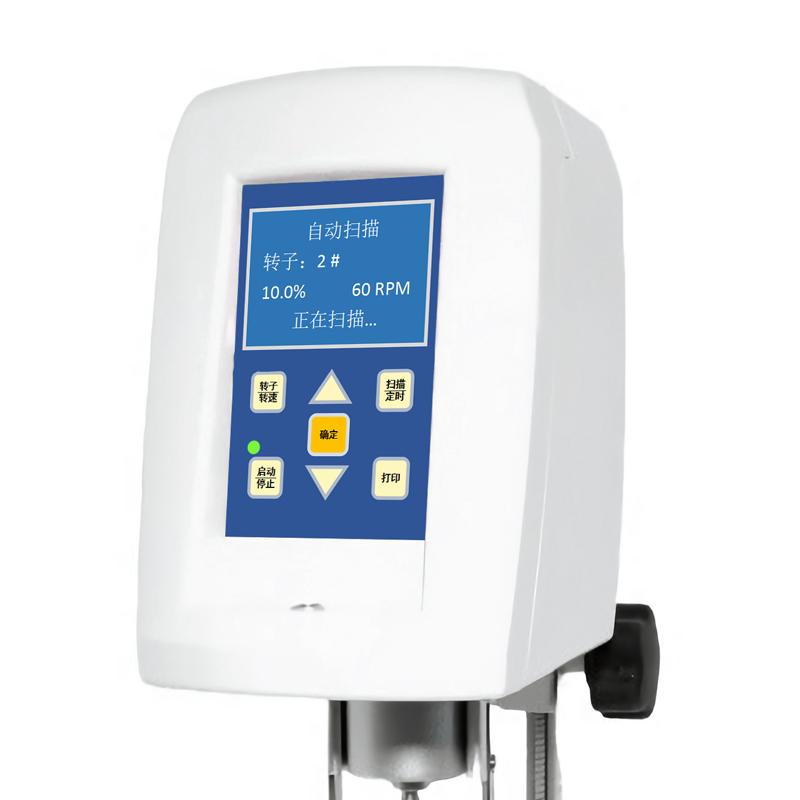

7. With automatic scanning function, it automatically recommends the best combination of rotor and Rotation speed.

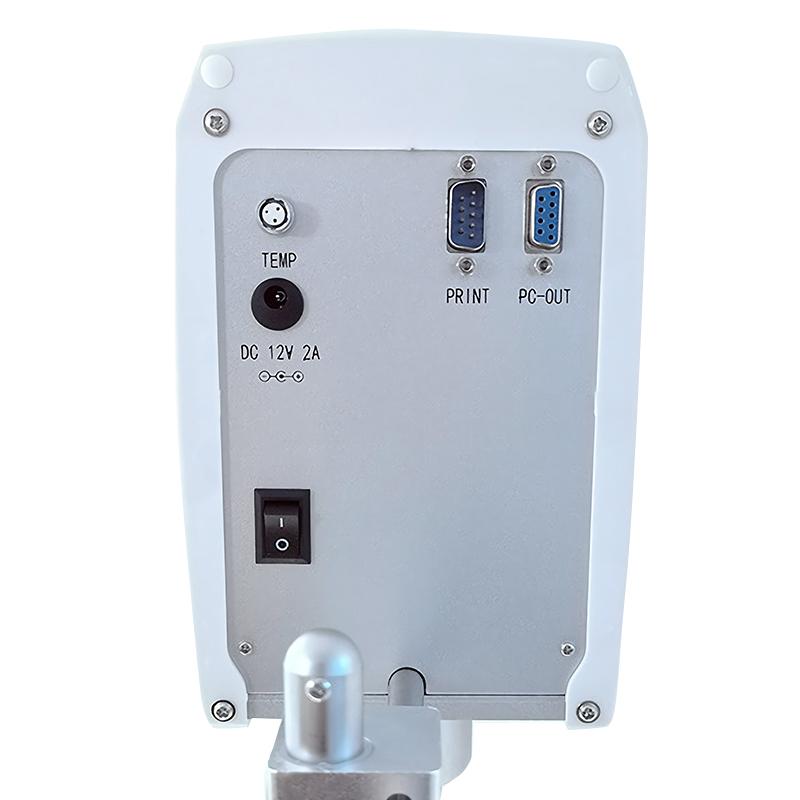

8. With RS232 interface (or USB 2.0 interface), it can output data and connect to external devices.
9. Optional data processing software can record the change of viscosity with time, Rotation speed, rotor or temperature in real time, and analyze the rheological characteristics of non-Newtonian liquids.
Principle
The FANGRUI NDJ-5S digital Viscometer is based on microcomputer drive technology and stepper motor control, and automatically adjusts the Rotation speed through the setting program to measure the viscosity of the liquid. The instrument uses the torque generated by the rotor when swirling/spinning in the liquid, combined with liquid crystal display technology, to directly output information such as viscosity, Rotation speed, rotor number, etc. Measurement accuracy and Repeatability are ensured through the PC interface for standard silicone oil correction, which can be adapted to the viscosity determination of Newtonian and non-Newtonian liquids.
Applications
Oil, paints, Coatings, Stock, Spinning & weaving, Food, Adhesive, Cosmetics and other fluids, semi-fluid production industries and R & D institutions
Steps
1. Connect the power supply and turn on the instrument.
2. Choose the right rotor and Rotation speed combination.
3. Immerse the rotor in the tested liquid.
4. Start measurement, the instrument automatically displays viscosity, Rotation speed, rotor number and other information.
5. Optimize rotor and Rotation speed combination with automatic scanning function (optional).
6. Interface output measurement results (optional).
7. Optional temperature sensor to monitor liquid temperature in real time.
Notice
• Power supply voltage matches the instrument requirements (110V/60Hz or 220V/50Hz).
• Measurement accuracy is ensured by calibration with standard silicone oil before use.
• When selecting a rotor, pay attention to the viscosity range, and use a No. 0 rotor for ultra-low viscosity.
• Avoid use in environments with large power fluctuations to prevent affecting accuracy.
• Regularly inspect rotors and interfaces to ensure no damage or contamination.
• Follow automated scanning recommendations when operating for best measurement results.
• Optional accessories such as temperature sensors and thermostatic equipment must be properly installed and used.
