Overview

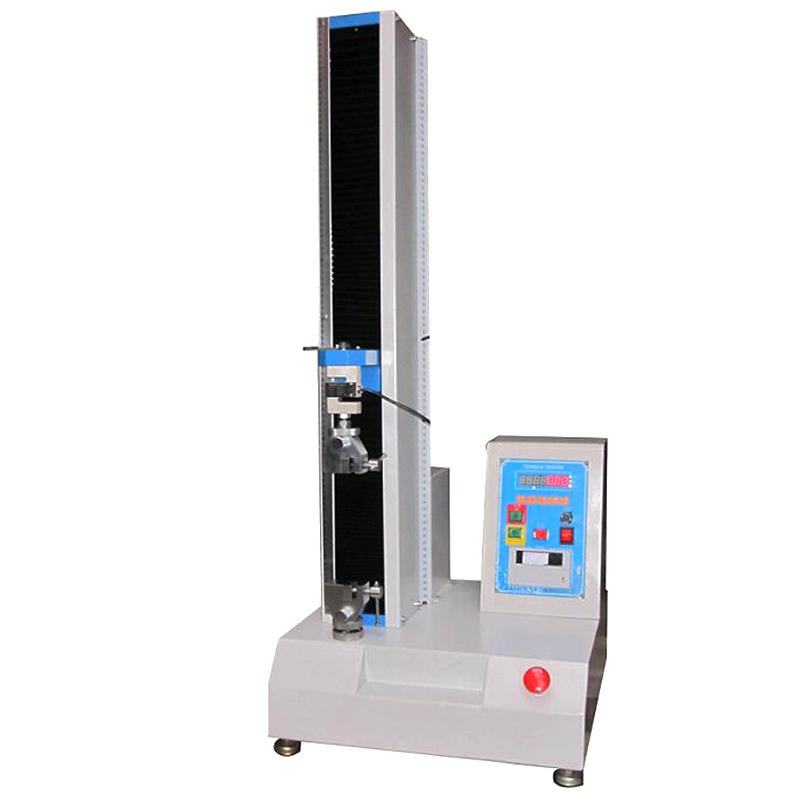

HUIDA HD-1003 Universal Testing Machine can test the physical performance of various materials and finished products, work in progress, and purchase a variety of different fixtures for tensile, compressive, tensile, compressive, bending, tearing and other tests. Satisfying testing and research equipment for factories and enterprises, technical supervision departments, commodity inspection agencies, scientific research institutes and Universities & colleges and other departments.
Features
1. Capacity selection 200Kg
2. Load analysis 1/10000
3. Force Precision < 0.5%
4. Measurement range 0.5~ 100% F.S
5. Sensor sensitivity 1~ 20mV/V
6. Displacement Indication Error Better than +/- 0.5%
7. Effective Travel 700mm (including fixture)
8. Force units include kgf, lbf, N (with printing function)
9. Dimensions 43 * 43 * 110cm
10. Machine weight about 85kg
11. Power supply voltage 1PH, AC220V, 50/60Hz, 5A
Principle
By selecting different fixtures for tensile, compressive, tensile, compression, bending, tearing and other tests, test the physical performance of various materials and finished products and work in progress.
Applications
Aerospace, Petrochemicals, Machinery Manufacturing, Leather and Products, Wire and cable, Rubber and Plastic Materials, Paper and Color Printing Encasement, Adhesive Tape, Turtle Glue, Luggage and Handbags, Spinning & weaving Fibers, Food
Steps
Step 1 Choose the right fixture
2. Installation sample
3. Set test parameters
Step 4 Start the test
Step 5 Record data
Step 6 Print the results
Notice
• Power supply voltage meets 1PH, AC220V, 50/60Hz, 5A requirements
• Check whether the fixture installation is firm before operation
• Pay attention to the operation status of the equipment during the test
• Precision of regularly calibrated force values
• Keep equipment clean and drying
