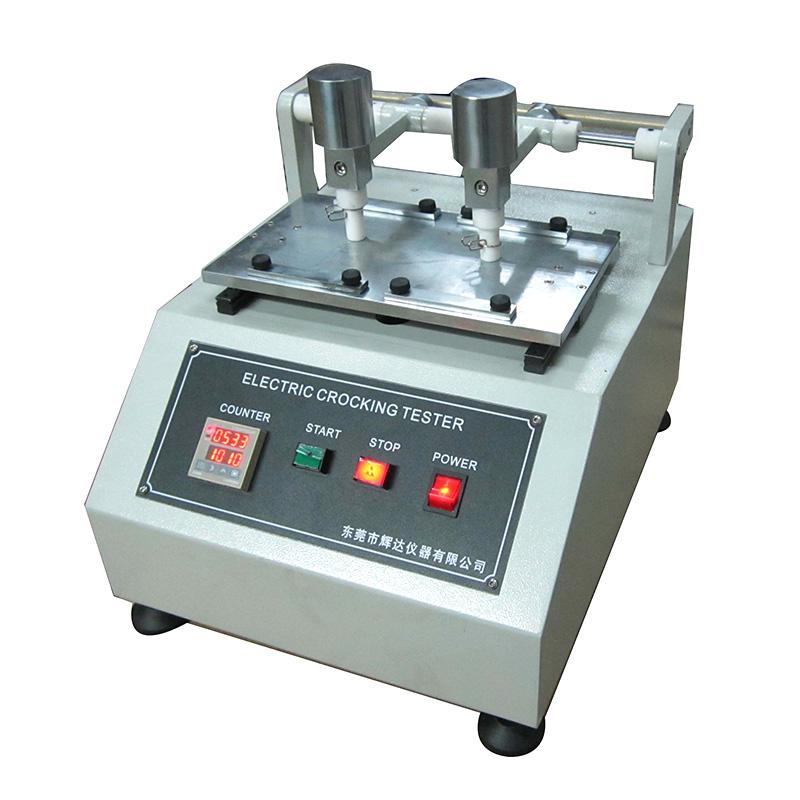

HUIDA HD-2033 Electric Rub Resistance Tester

Name: HUIDA HD-2033 Electric Rub Resistance Tester
Brand: Huida
SKU: NB007585
Price: 1395.0 USD
Availability: InStock

$ 1395.00Ex works

Using reciprocating friction method, friction load 9N, Frequency 60cpm, can be set 0~ 999900 times test, support drying wet white cotton cloth for dyeing fastness evaluation.

Model

HD-2033

Get Quote

Category : Color Fastness Tester

Brand : Huida

SKU : NB007585

Service :The delivery and service By NBCLab.Com

Overview

HUIDA HD-2033 Electric Rub Resistance Tester is used to test the degree of decolorization of dyed fabrics and leather by friction. The test method is to use a dried or wet white cotton cloth, wrap it in a friction cone, and then rub the test piece on the test bench reciprocally to evaluate the dyeing fastness grade.

Features

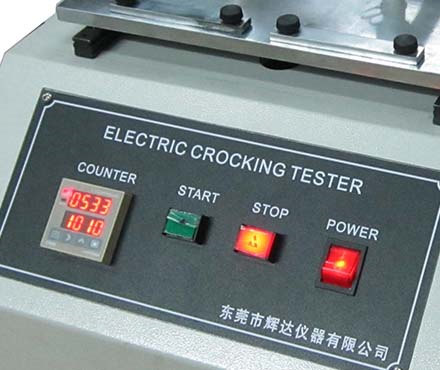

1. Adopt reciprocating friction method and double hammer electric friction contact form 2. Frequency setting range 0~ 999900 to meet a variety of testing requirements 3. Equipped with a digital display screen, the operation is intuitive and convenient 4. Standard white cotton accessories, easy to use directly

Principle

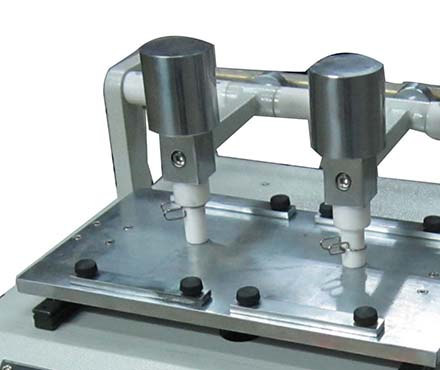

The testing machine uses a drying or wet white cotton parcel friction cone, and makes the friction cone reciprocate friction movement on the surface of the sample clamped on the test bench by electric drive to simulate the friction conditions in actual use, so as to evaluate the dyeing and decolorization of fabric or leather.

Applications

Fabric, leather

Standards

ISO-105、ASTM-D2054、AATCC-8、JIS-L0849

Steps

Prepare a 140 * 50mm specimen and hold it on the test bench 2. Rub cone with drying or wet cotton parcel 3. Set the required number of friction (0~ 999900) 4. Start the equipment for reciprocating friction testing 5. Evaluate the degree of decolorization of the specimen and evaluate the dyeing fastness grade

Notice

• Ensure that the sample size meets the 140 * 50mm requirements • The friction load is fixed at 9N, do not adjust it at will • Check whether the white cotton cloth is in good condition before use • Regular maintenance of motors and transmission components • Pay attention to safety protection during operation

Type
Double hammer electric
Specimen Size
140*50mm
load
9N
motor
1/4HP
Friction velocity
60c.p.m.
friction distance
100mm
friction hammer
ψ16*25mm
counter
Digital display, 0~ 999900
Volume
55*50*45cm
accessories
White cotton 1 close
