HUIDA HD-2028 Flexibility Testing Machine Reciprocating Bending Tester

Name: HUIDA HD-2028 Flexibility Testing Machine Reciprocating Bending Tester
Brand: Huida
SKU: NB007588
Price: 1411.0 USD
Availability: InStock

$ 1411.00Ex works

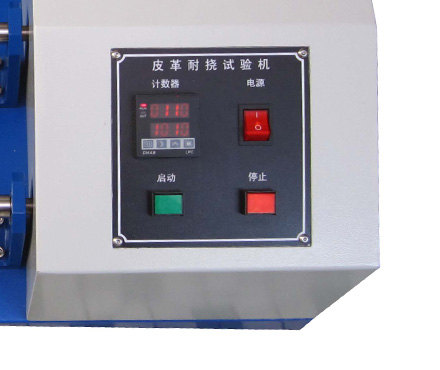

The equipment is equipped with 12 sets of stainless steel clamps with a bending angle of 22.5 °, allowing multiple test pieces to be tested simultaneously. The LCD liquid crystal counter accurately records the number of bends from 0 to 999999.

Model

HD-2028

Get Quote

Category : Other Instruments

Brand : Huida

SKU : NB007588

Service :The delivery and service By NBCLab.Com

Overview

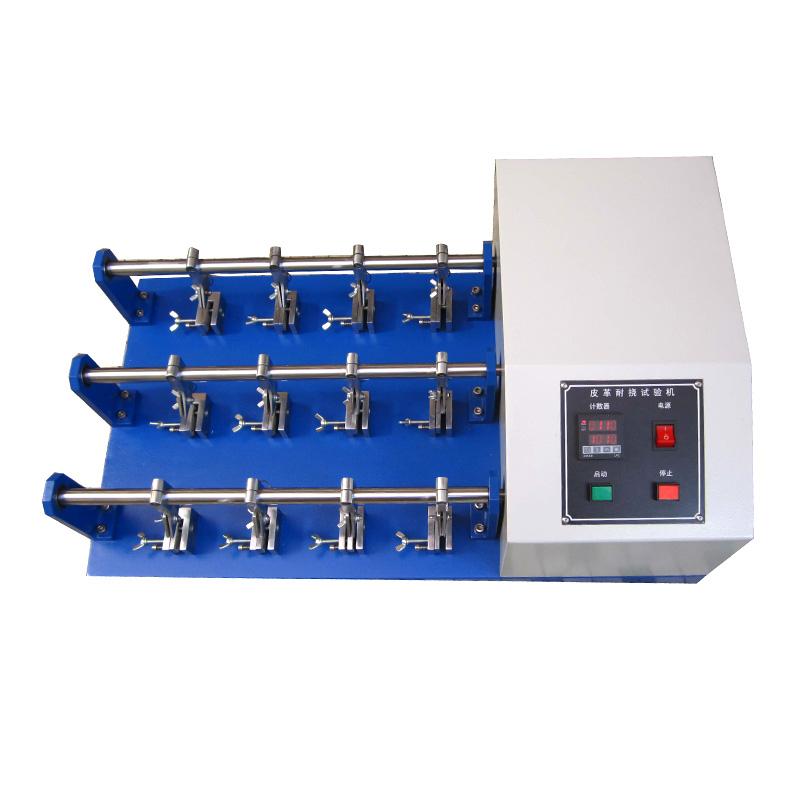

HUIDA HD-2028 Flexibility testing machine is a professional testing equipment. It records the number of bending times when the test piece is damaged by reciprocating the surface of one end of the test piece as the inner side and the other end as the outer side. The testing machine is suitable for flexible testing of thin leather materials such as uppers, clothing materials, and bags.

Features

1. Equipped with 12 sets of stainless steel die opening fixtures 2. Adopt LCD liquid crystal display counter, counting range 0~ 999999 3. The bending angle is precisely set to 22.5 ° 4. Specimen size is 70 × 45mm 5. Compact structure, Dimension 50 * 58 * 30cm 6. weight about 55kg, easy to use in the laboratory 7. The power requirements are 1, AC 220V, 2A

Principle

The testing machine drives the test piece to reciprocate bending motion through the mechanical structure. One end of the test piece is used as the inner side and the other end is used as the outer side to repeatedly bend. When the test piece is damaged, the equipment automatically records the number of bending times and displays the test results through the LCD liquid crystal display.

Applications

Thin leather for upper, thin leather for clothing, thin leather for bags

Steps

1. Prepare a 70 x 45mm specimen 2. Install the test piece into a stainless steel fixture 3. Set one end of the test piece to the inside and the other end to the outside 4. Start the device to start the reciprocating bending test 5. Observe the status of the test piece and stop the test when damage occurs 6. Record the number of bends displayed by the LCD liquid crystal display

fixture
12 groups (the fixture is stainless steel mold opening)
Specimen Size
70*45mm
Bending angle
22.5°
counter
LCD liquid crystal display; 0~ 999999 (6 digits)
Dimension
50*58*30cm
weight
About 55kg
power supply
1∮,AC 220V,2A
