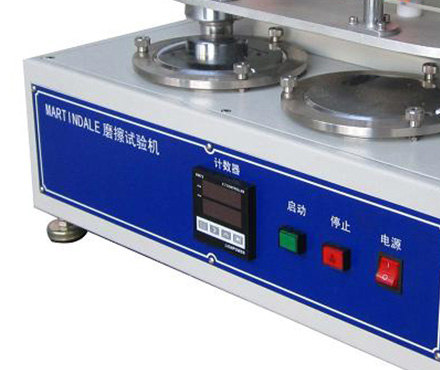

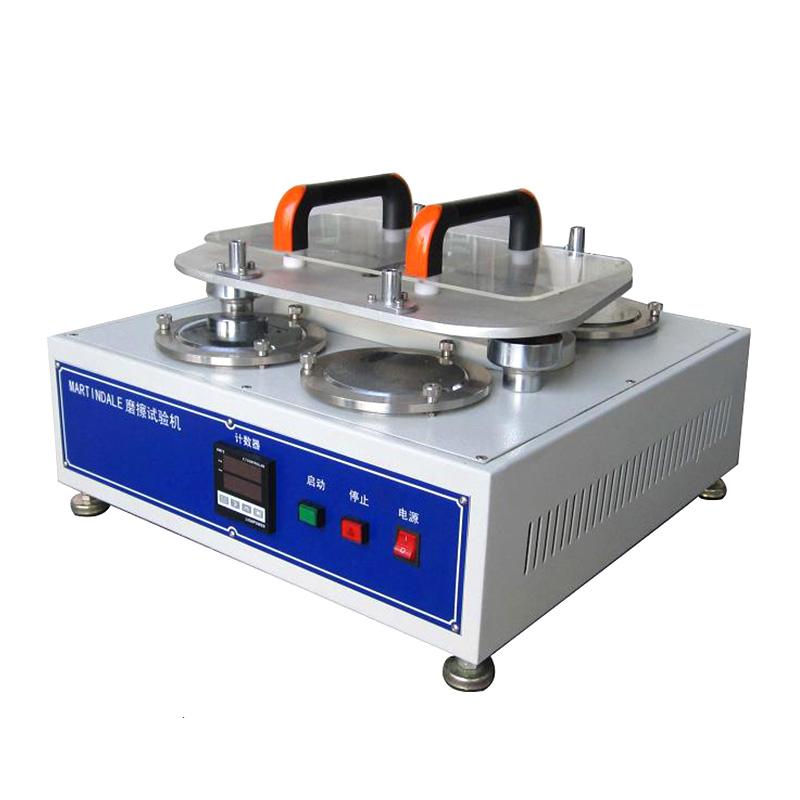

HUIDA HD-2032 Martindale Wear resistance Tester Spinning & weaving film material abrasion resistance test

Name: HUIDA HD-2032 Martindale Wear resistance Tester Spinning & weaving film material abrasion resistance test
Brand: Huida
SKU: NB007590
Price: 1698.0 USD
Availability: InStock

$ 1698.00Ex works

It has two LISHARU graphic motion track test modes, supports 60 × 40mm moving range, adopts 4 grinding head design, and the non-turning guide plate is convenient for sample loading operation.

Model

HD-2032

Get Quote

Category : Abrasion Tester

Brand : Huida

SKU : NB007590

Service :The delivery and service By NBCLab.Com

Overview

HUIDA HD-2032 Martindale Wear resistance tester for Spinning & weaving products, film material abrasion resistance, abrasion and Appearance change (pilling) performance testing.

Features

1. Two test modes, plus and minus two counting methods: Mode 1:60 × 60mm Lissajous graphic motion trajectory; Mode 2:40 × 40mm Lissajous graphic motion trajectory 2. Flip-free guide plate design, no need to move the sample

Principle

The instrument uses the swirl/spin friction method and the surface contact form to make the gripper and the grinding table rub at a relative movement speed of 50-2r/min, simulating the abrasion process of the material in actual use.

Applications

Spinning & weaving products, membrane materials

Number of stations
4 digits
count Range
0~ 999999 times
maximum travel
Horizontal: 60.5 +/- 0.5mm; Vertical: 24 +/- 0.5mm
Pressurized mass
Gripper: 200 +/- 1g
Relative velocity of gripper and mill
50-2r/min
Dimension
580*560*320mm
Power supply Voltage
Ac220V 50Hz 500W
weight
67kg

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
