Overview

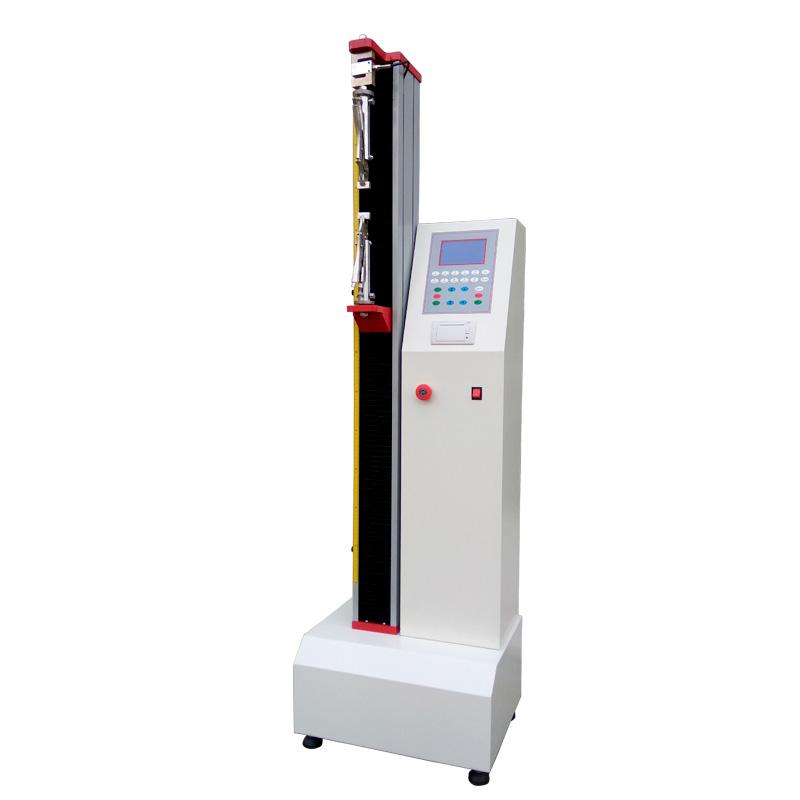

HUIDA HD-1007 Floor-Standing Rubber Universal Testing Machine is suitable for Petrochemicals, Machinery Manufacturing, Metal Materials and Products, Wire and Cable, Rubber and Plastic Materials, Paper and Color Printing Encasement, Adhesive Tape, Turtle Glue, Luggage Handbags, Spinning & Weaving Fiber, Food and other industries. It can test the physical performance of various materials and finished products, work in progress, and purchase various fixtures for tensile, compressive, tensile, and pressure tests. Satisfactory testing and research equipment for factories, technical supervision departments, commodity inspection agencies, scientific research institutes, and Universities & colleges.
Features
1. Capacity selection 200Kg, load analysis degree 1/10000, force value Precision < 0.5%.
2. Measurement range 0.5~ 100% F. S, Sensor sensitivity 1~ 20mV/V.
3. Displacement Indication Error is better than +/- 0.5%, effective Travel 1000mm (including fixture).
4. Support a variety of force units including kgf, lbf, N, KN, KPa, Mpa, and users can customize the required units.
5. Machine weight about 85kg, Power supply voltage AC220V, 50/60Hz, 10A, standard clamp 1 set.
Principle
Sensor measurement of the material during stretching or compression, combined with displacement indication system to record deformation data, to achieve physical performance testing. Users can choose different fixtures for tensile, compressive, tensile, holding pressure and other tests.
Applications
Petrochemicals, Machinery Manufacturing, Metal Materials and Products, Wires and cables, Rubber and Plastic Materials, Paper and Color Printing Encasement, Adhesive Tapes, Turtle Glue, Luggage Handbags, Spinning & weaving Fibers, Food
