Overview

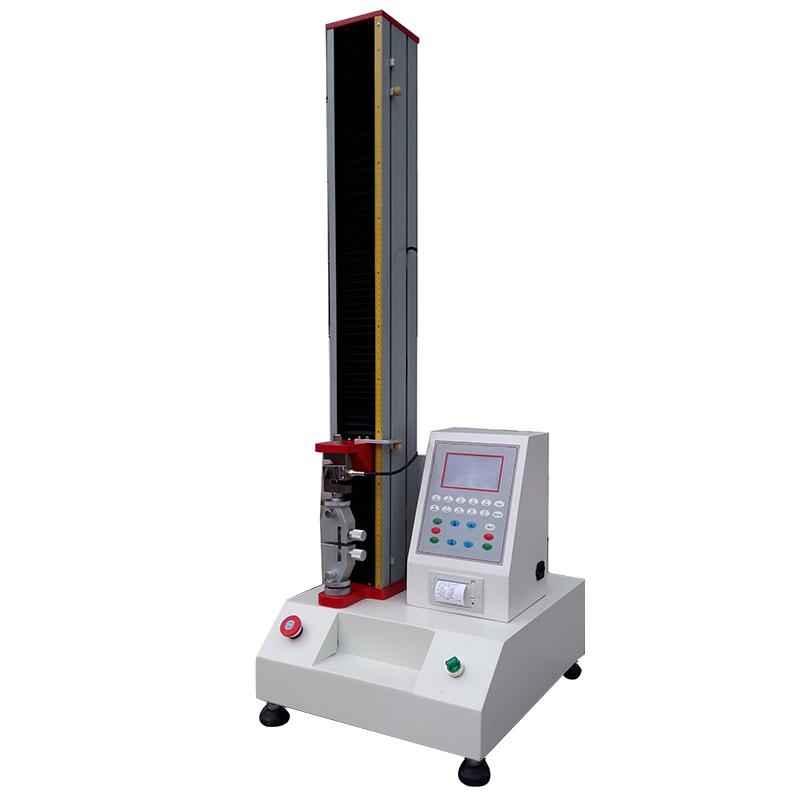

HUIDA HD-1003-B Zipper Compression Universal Testing Machine can test the physical performance of various materials and finished products and work in progress. By purchasing different fixtures, tensile, compressive, tensile, compressive, bending, tearing, disbonding, adhesion, shear force and other tests can be carried out. The equipment is a satisfactory testing and research equipment for factories and enterprises, technical supervision departments, commodity inspection agencies, scientific research institutes and Universities & colleges and other departments.
Features
1. Capacity selection 50Kg, load analysis degree 1/25000, force value Precision < 0.5%.
2. Measurement range 0.5~ 100% F. S, Sensor sensitivity 1~ 20mV/V.
3. Displacement Indication Error is better than +/- 0.5%, effective Travel 700mm (including fixture).
4. Support a variety of force units such as kgf, lbf, N, KN, KPa, Mpa, etc. Users can customize the required units.
5. Using variable frequency motor, Dimension 43 * 43 * 110cm, machine weight about 85kg.
6. Power supply voltage 2PH, AC220V, 50/60Hz, 10A.
Applications
Aerospace, Petrochemicals, Machinery Manufacturing, Metal Materials and Products, Wires and cables, Rubber and Plastic Materials, Paper and Color Printing Encasements, Adhesive Tapes, Turtle Glue, Luggage and Handbags, Spinning & Weaving Fibers, Food
