Overview

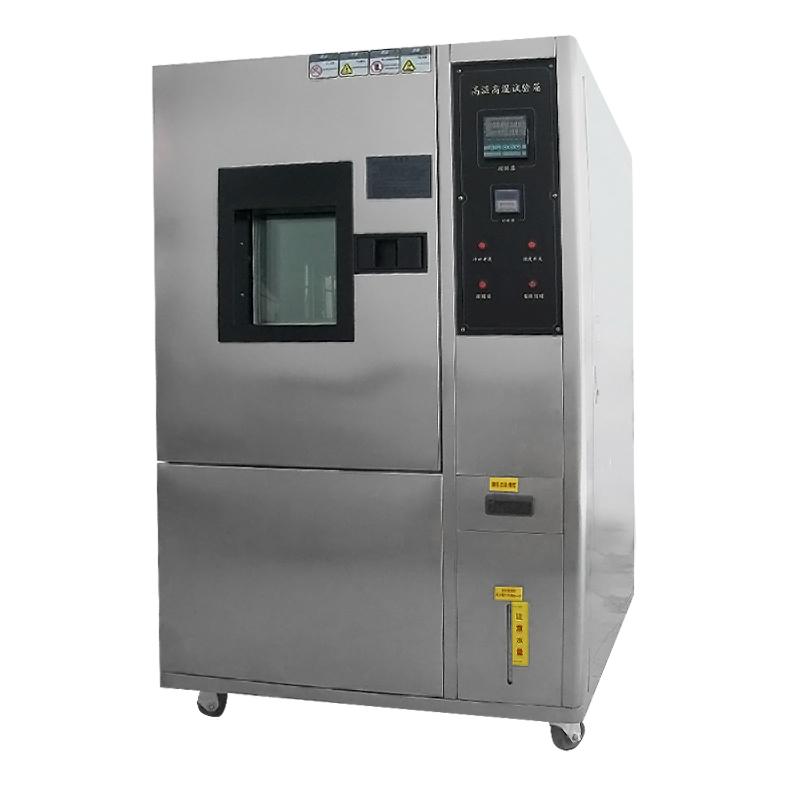

HUIDA HD-3003 humidity chamber (150L) is a professional test equipment with equilibrate temperature control system and PID Control mode, which can operate stably for a long time. The equipment has independent heating, cooling, humidification and dehumidification systems, which is suitable for various environment simulation test needs.
Features
1. Adopt equilibrated temperature control system to control SSR drive in PID mode to achieve long-term stable operation
2. The outer box is fully welded or sprayed with brushed stainless steel plate, and the inner box is fully welded with SUS #304 black-faced stainless steel plate
3. Equipped with rectangular multi-layer insulating Glass observation window and lighting
4, using polyurethane foam high temperature and high voltage foam insulation material
5. The load-bearing capacity of the sample holder is not more than 30 kilograms
6, using fully enclosed effective provincial refrigeration Compressor and environmental protection snow R404A, R23A
7, forced ventilated equilibrating method (BTC) air conditioning system
8. U-shaped fin type high-speed heating electric heater
9. Electronic juxtaposition fretting humidification system
10. Dehumidification mode of independent freezing compression system
11. Safety protection devices include over-temperature protection, water shortage protection, over-current protection, etc
Principle
The test chamber adopts the equilibrate temperature control system, and the SSR drive is controlled by PID mode, so that the heating amount of the system is equal to the heat loss, so as to achieve long-term stable operation. The air conditioning adopts the forced ventilated equilibrate temperature control method (BTC). In the case of continuous operation of the refrigeration system, the Control system controls the output of the heating device through PID automatic operation according to the set temperature point to achieve dynamic equilibrate. The humidification system adopts electronic parallel mode for fretting humidification, and the dehumidification system adopts independent freezing compression system Dehumidification mode.
Applications
Environment simulation test, Reliability test, Material performance test, Electronic component test, Industrial product test
Steps
1. Connect the power supply, ensure that the Power supply voltage is AC220V, 50HZ, and the system power fluctuation is not more than +/- 10%
2. Connect the water supply system, the water pressure is 2kg/cm2, and the pipe diameter is 5x8mm.
3. Set Required Temperature and Humidity Parameters
4. Start the device running
5. After the test is completed, remove the experimental wastewater through 3 pipes
Notice
• When the Operating Environment is no-load, the machine air-cooled room temperature is 25 ° C, or the water-Cooled water temperature is 25 ° C
• The load-bearing capacity of the sample holder shall not exceed 30kg
• Power supply voltage fluctuation must not exceed +/- 10%
• The water pressure of the water supply needs to be kept at 2kg/cm2
• Wastewater after experimental use must be removed in time
• Pay attention to observe the operating status of the equipment to ensure the normal operation of the Safety protection device
