Overview

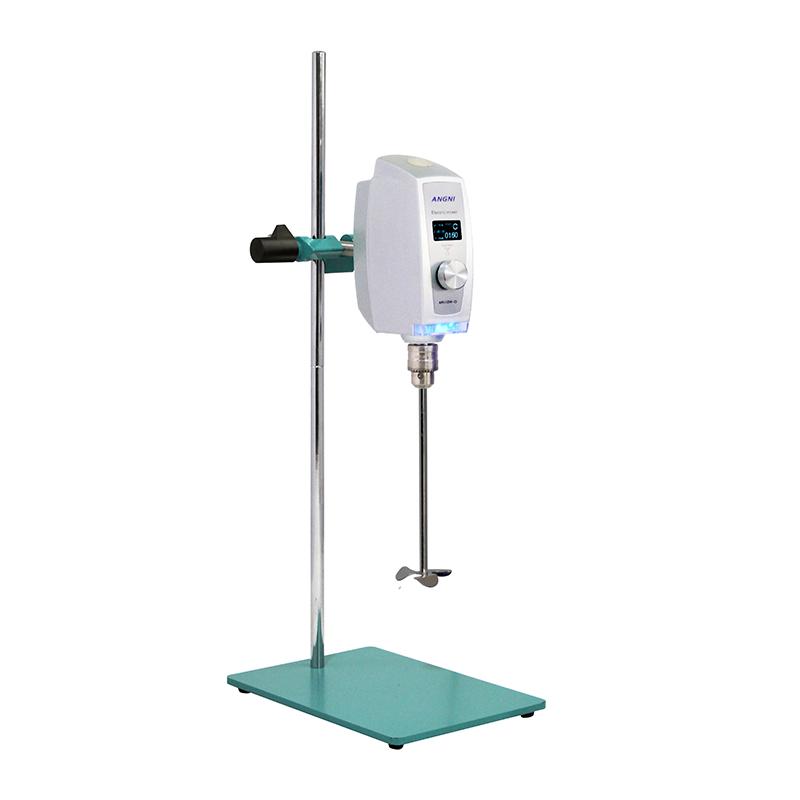

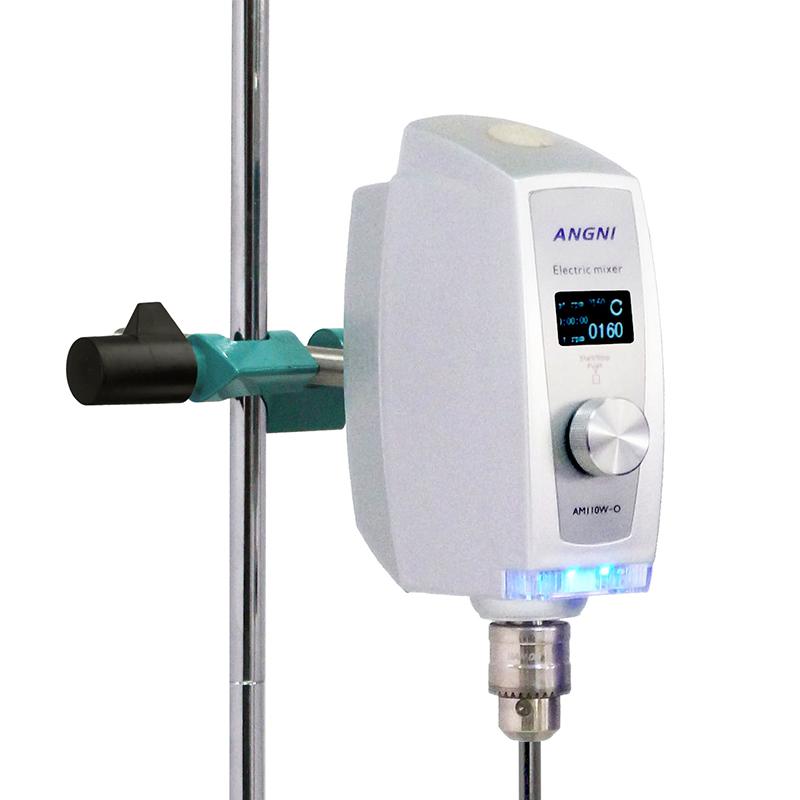

The ANGNI AM110W-O laboratory constant speed Stirrer is driven by a brushless DC motor, which is suitable for stirring and mixing of low to medium and high viscosity liquids in the laboratory. The machine has a reasonable and compact structure, ultra-low noise and maintenance-free. The stirring Rotation speed is controlled by a microprocessor, which can instantly and effectively compensate for changes in Rotation speed caused by load changes and Power supply voltage fluctuations, and the constant speed is reliable. Built-in automatic overload protection device to ensure the safety of continuous operation of the experiment for a long time with high load; knob control of operating state, making the experimental operation easier; stepless adjustment of stirring Rotation speed to meet the correction of stirring Rotation speed at any time in the experiment; digital display setting and actual output Stirring Rotation speed to ensure intuitive collection of experimental data; operation timing control to ensure that the time of the experiment is effectively controllable. Stable stirring Rotation speed, competent for high viscosity medium, Stock stirring.
Features
1. Driven by brushless DC motor, ultra-low noise and maintenance-free
2. Rotation speed controlled by microprocessor, immediate compensation for load and voltage fluctuations, constant speed reliable
3. Built-in automatic overload protection device to ensure long-term high-load continuous operation safety
4. Knob-type control of operating status, easy to operate
5. Rotation speed stepless adjustment, can be corrected at any time
6. Digital display settings and actual output Rotation speed, intuitive data acquisition
7. Run timing control to ensure that the experiment time is controllable
8. Rotation speed dynamic detection and memory function
9. Suitable for high viscosity medium and Stock mixing, the maximum viscosity is 100000mPa · s
Principle
The constant speed Stirrer is driven by a brushless DC motor, and the stirring Rotation speed is precisely controlled by the microprocessor. When the load changes or Power supply voltage fluctuations, the microprocessor can detect and effectively compensate in real time to ensure the constant Rotation speed. The Rotation speed is adjusted in the range of 30~ 2000rpm through stepless speed regulation, and is monitored in real time by digital display. The built-in overload protection device automatically cuts off the power supply in abnormal situations to ensure the safe operation of the equipment.
Applications
Laboratory mixing of low to medium and high viscosity liquids
Standards
Protection Rating IP40
Steps
1. Connect the power supply, ensure that the Rated voltage AC100~ 240V, Frequency 50/60Hz
2. Select the appropriate Impeller, fix it through the rotating chuck, and the clamping range is φ 2~ 10mm.
3. Use the combined control knob to set the required Rotation speed, range 30~ 2000rpm
4. If you need timing, set the Timer Range 1~ 6000min
5. Monitor settings and actual Rotation speed via OLED display
6. Start the equipment and start the mixing operation
7. After the experiment, turn off the power and clean the equipment
Notice
• Ambient Temperature must not exceed 40 ℃
• The relative humidity should not exceed 80%
• Stirringrod penetration diameter is limited to 10mm
Processing capacity up to 20L
• Rated voltage range only
• Avoid overload operation to prevent triggering the protection device
• Regularly check the fixing of the rotary chuck to ensure safety
