Overview

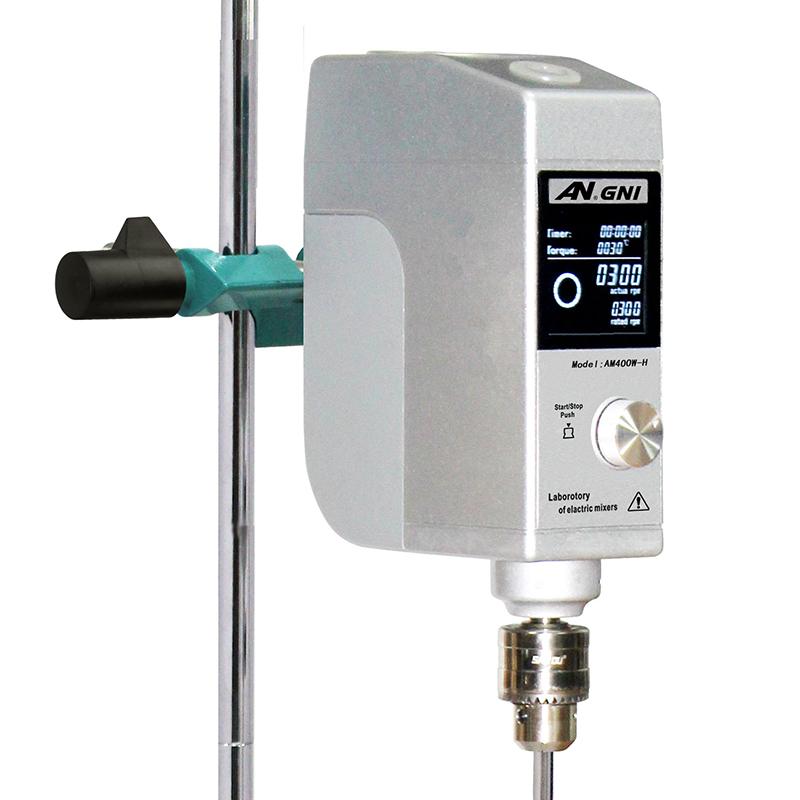

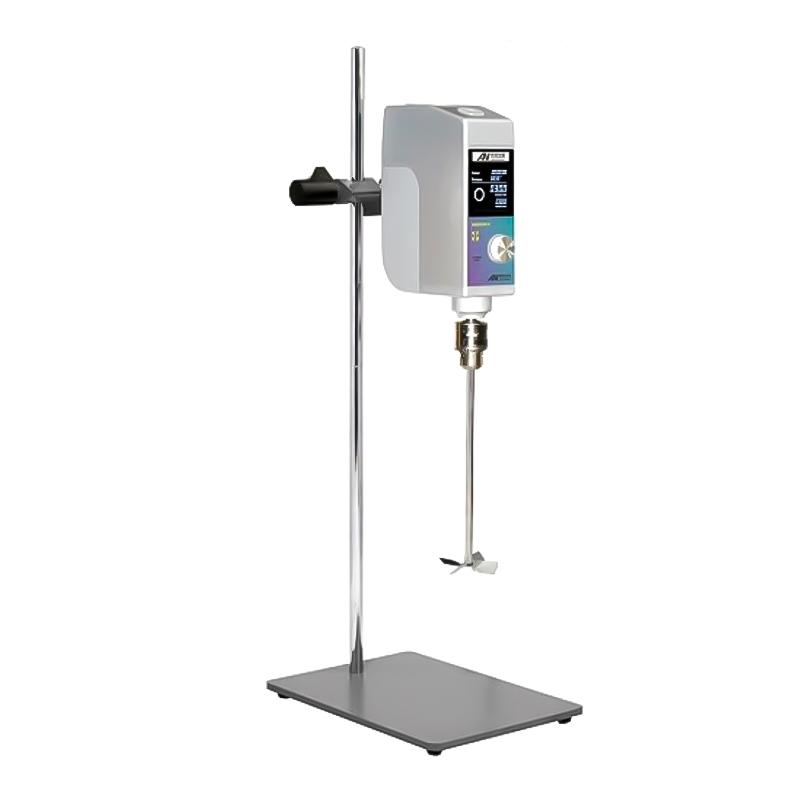

ANGNI AM400W-H Constant Speed Stirrer is a laboratory electric stirring equipment, driven by a high-power and high-torque DC brushless motor, suitable for mixing and stirring low to medium and high viscosity liquids in the laboratory. The machine has a reasonable and compact structure, ultra-low noise, maintenance-free, running state control adopts international professional digital circuit technology, Rotation speed is controlled by a microprocessor, which can instantly compensate for load changes and Power supply voltage fluctuations to ensure constant speed and reliability.
Features
1. Driven by high-power and high-torque DC brushless motor
2. Reasonable and compact structure, ultra-low noise, maintenance-free
3. Operating state control adopts international professional digital circuit technology, microprocessor controls Rotation speed, instant compensation for changes
4. Built-in automatic overload protection device to ensure long-term high-load continuous operation safety
5. Combined operating status control knob, easy to operate
6. Rotation speed stepless adjustment, Rotation speed can be corrected at any time
7. TFT color screen display digital settings and actual output Rotation speed and torque increase or decrease process trend, data intuitive collection
8. Run timing control to ensure that the experimental timeliness is effectively controllable
9. Stable Rotation speed, competent for high viscosity medium, Stock mixing
Principle
The Stirrer is driven by a DC brushless motor, and the Rotation speed is controlled by a microprocessor, which can instantly and effectively compensate for the Rotation speed changes caused by load changes and Power supply voltage fluctuations to achieve constant speed operation. The built-in automatic overload protection device ensures safety, and the TFT color screen displays the Rotation speed and torque change trend in real time, which is convenient for experimental data collection.
Applications
Mixing and stirring of low to medium and high viscosity liquids in laboratory, stirring of high viscosity medium, and stirring of stock
Steps
1. Connect power supply (Rated voltage AC 100~ 240V, Frequency 50/60Hz)
2. Use the combined control knob to set operating parameters
3. Adjust the stirring Rotation speed by stepless speed regulation (range 30~ 2000rpm)
4. Set Timer Range (1~ 6000min)
5. Rotation speed and torque changes monitored by TFT color screen
6. Start Stirrer for experimental operation
Notice
• Ensure Ambient Temperature does not exceed 40 ℃
• relative humidity not more than 80%
• Check whether the Power supply voltage meets the rated range before use

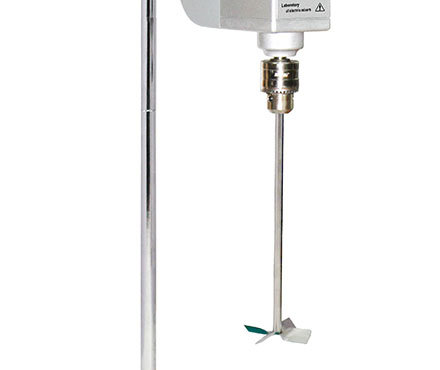

• Note that the fixing method of Impeller is quick-acting chuck, and the clamping range is 2~ 13mm.
• Avoid overload operation, built-in protection device but need to be used reasonably
• Regularly check the operating status of equipment to ensure safety
