Overview

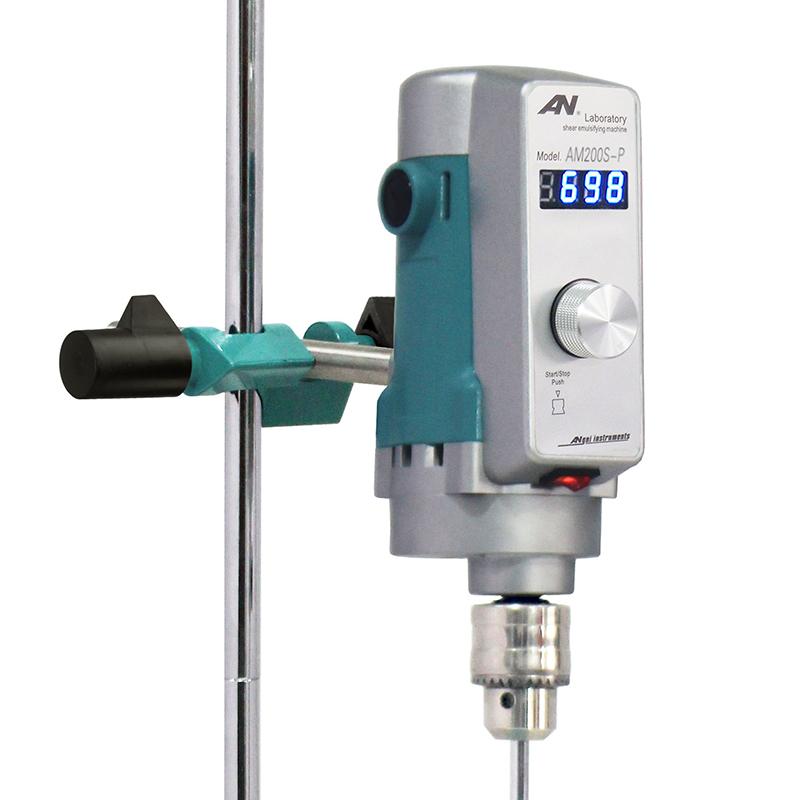

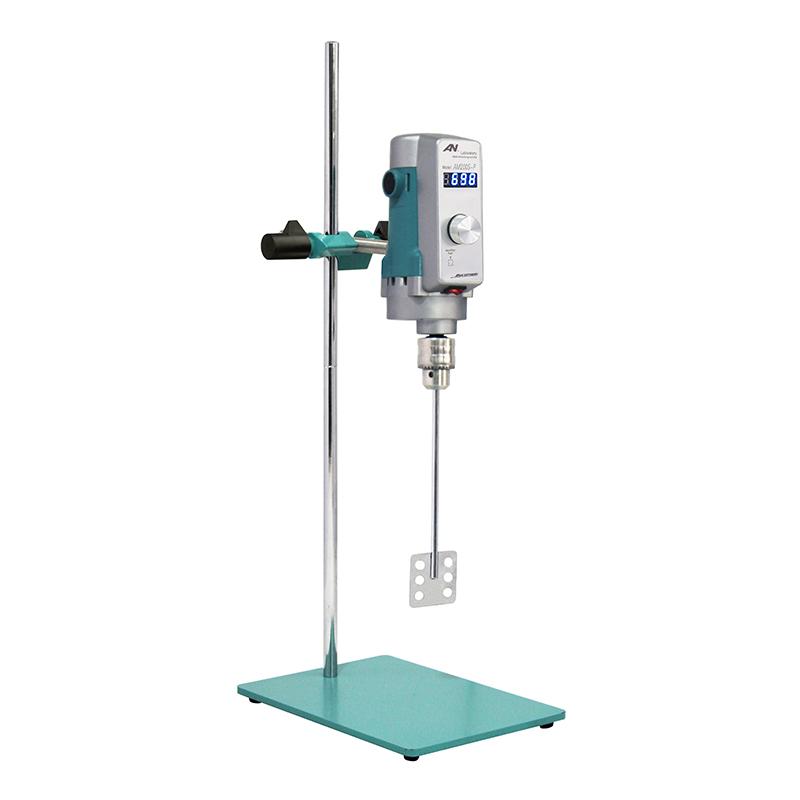

The ANGNI AM200S-H electric Stirrer is a digital display device driven by a series motor, suitable for mixing and stirring low to medium and high viscosity liquids in the laboratory. The machine consists of a drive motor, a speed control controller and a torque increasing mechanism. It uses an engineering plastic and die-cast aluminum alloy body to ensure stable operation, and provides constant speed control, soft start and overload protection functions.
Features
1. Driven by a compact series motor, suitable for stirring low to medium and high viscosity liquids
2. The machine body is made of engineering plastics and die-casting aluminum alloys, and the operation state is stable
3. The output terminal applies a variable speed booster mechanism, and the output torque is doubled
4. Rotation speed controlled by microprocessor, can instantly compensate for load changes and Power supply voltage fluctuations, constant speed reliable
5. Built-in soft start and automatic overload protection ensure the safety of continuous operation at full load for a long time
6. Rotation speed stepless adjustment meets the constant correction of Rotation speed in the experiment
7. Rotation speed of digital display is intuitive, convenient for experimental data collection
8. Run the timing control function to ensure that the experiment time is effectively controllable
Principle
The electric Stirrer is driven by a series-excited micro-motor, combined with a speed control controller and a torque increasing mechanism to achieve stirring. The microprocessor controls the Rotation speed, which can instantly compensate for the Rotation speed changes caused by load changes and Power supply voltage fluctuations to ensure constant speed operation. The output terminal adopts a variable speed boosting mechanism to increase the output torque and ensure the safety of the equipment through soft start and overload protection mechanism.
Applications
Laboratory liquid mixing and stirring
Steps
1. Connect power to AC 220V, Frequency 50/60Hz
2. Use the combined control knob to set the Speed range 100~ 1800rpm for stepless speed regulation
3. Set Timer Range 1~ 1000min, start running timing control

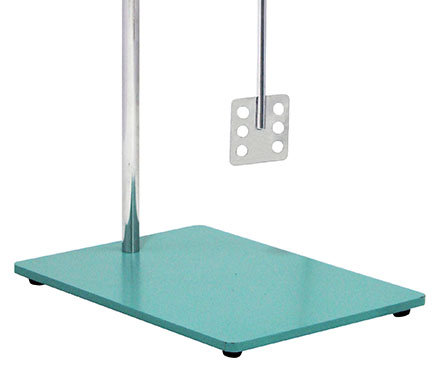

4. Fix the Impeller by quick-acting chuck, clamping range 2~ 13mm
5. Start the device and observe the LED digital display Rotation speed to ensure normal operation
Notice
• Ensure that the Ambient Temperature does not exceed 40 ° C and the relative humidity does not exceed 80%
Processing capacity range is 50~ 30000ml, mixing viscosity processing range is 0~ 30000mPa.s, do not exceed the limit
Equipment has an overload protection function, but long-term overload operation should be avoided
• Timely cleaning and maintenance after use to extend equipment life
