Overview

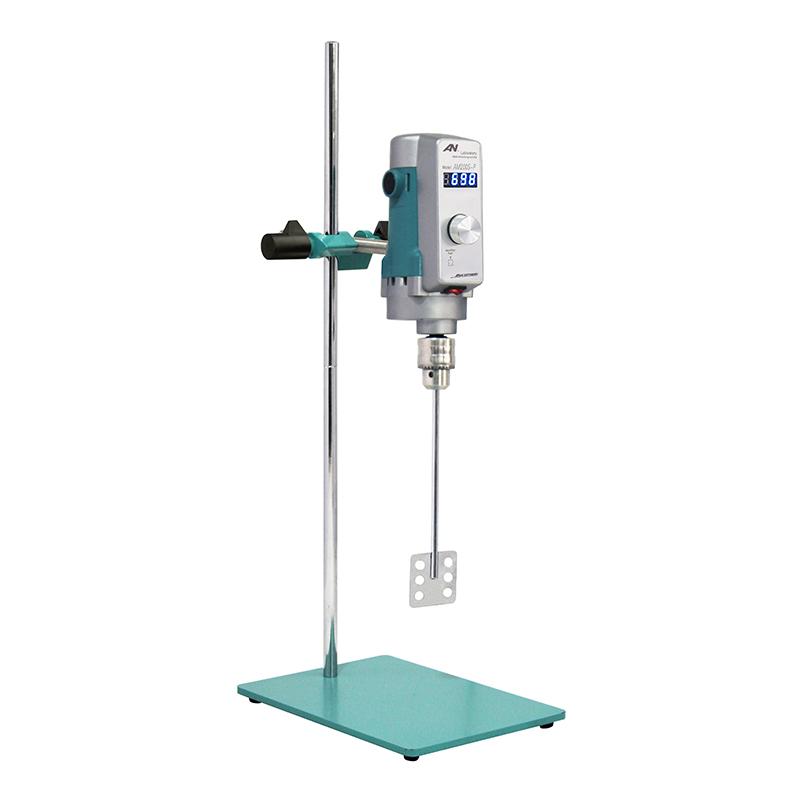

The ANGNI AM300S-H electric Stirrer (digital display) is a laboratory equipment driven by a series micro motor, suitable for mixing and stirring low to medium and high viscosity liquids. The machine consists of a drive motor, a speed control controller and a torque increasing mechanism. It uses an engineering plastic and die-cast aluminum alloy body to operate stably. The output torque is doubled by a force increasing mechanism. Rotation speed is controlled by a microprocessor to achieve constant speed and reliability.
Features
1. Driven by a compact series motor, it is suitable for mixing and stirring low to medium and high viscosity liquids.
2. The machine body is made of engineering plastics and die-casting aluminum alloys, providing stable operation.
3. A variable speed booster mechanism is applied at the output end, and the output torque is doubled.
4. Rotation speed controlled by microprocessor, can instantly compensate for load changes and Power supply voltage fluctuations, constant speed reliable.
5. Built-in soft start and automatic overload protection ensure the safety of continuous operation at full load for a long time.
6. Rotation speed stepless adjustment to meet the needs of Rotation speed correction at any time in the experiment.
7. Rotation speed of digital display is intuitive, which is convenient for experimental data collection; it has the function of running timing control to ensure that the experimental time is controllable.
Principle
The electric Stirrer is driven by a series micro-motor, combined with a speed control controller and a torque increasing mechanism to realize the stirring function. The microprocessor controls the stirring Rotation speed, which can instantly compensate for the Rotation speed changes caused by load changes and Power supply voltage fluctuations to ensure constant speed operation. The output end adopts a variable speed boosting mechanism to double the output torque, and at the same time has a built-in soft start and overload protection mechanism to ensure the safe and stable operation of the equipment.
Applications
Mixing and stirring of low to medium and high viscosity liquids in the laboratory
Standards
Protection Rating: IP40
Steps
1. Connect the power supply to Rated voltage AC 220V.
2. Use the combined control knob to set the desired Rotation speed and Timer Range.

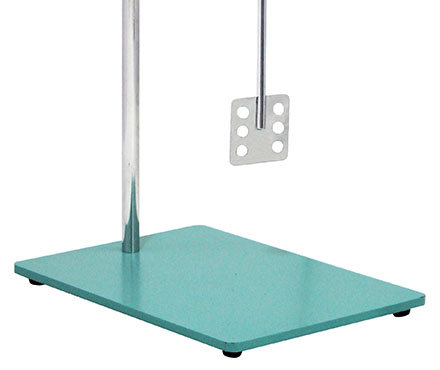

3. Fix the Impeller through the quick turn chuck to ensure that the clamping range is within 2~ 13mm.

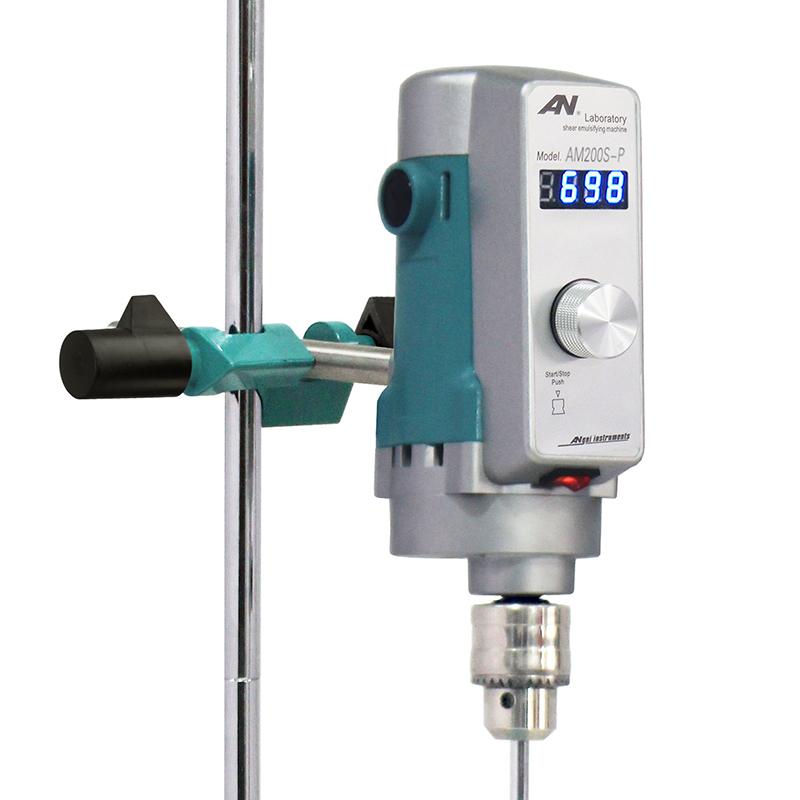

4. Start the device, observe the LED digital display Rotation speed, and adjust according to the experimental needs.
5. During the operation of the equipment, the microprocessor automatically compensates for the change of Rotation speed to ensure constant speed.
6. After the experiment is completed, turn off the power and clean the equipment.
Notice
• Ensure that the Ambient Temperature does not exceed 40 ° C and the relative humidity does not exceed 80%.
Processing capacity range is 50~ 40000ml, mixing viscosity processing range is 0~ 50000mPa.s, do not exceed the limit.
• Power supply voltage is checked before use to avoid voltage fluctuations affecting equipment performance.
The equipment has built-in overload protection, but it should be avoided from overloading for a long time to prevent damage.
• Regularly check the Impeller fixation to ensure that the rotary chuck is firmly clamped.
• Equipment Protection Rating is IP40, avoid use in humid or dusty environments.
