Overview

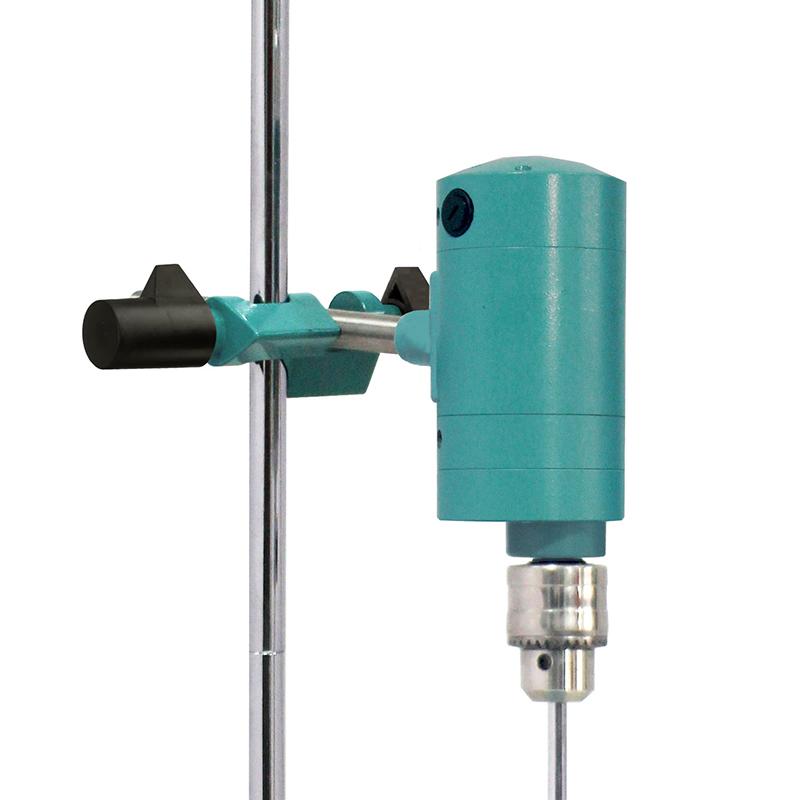

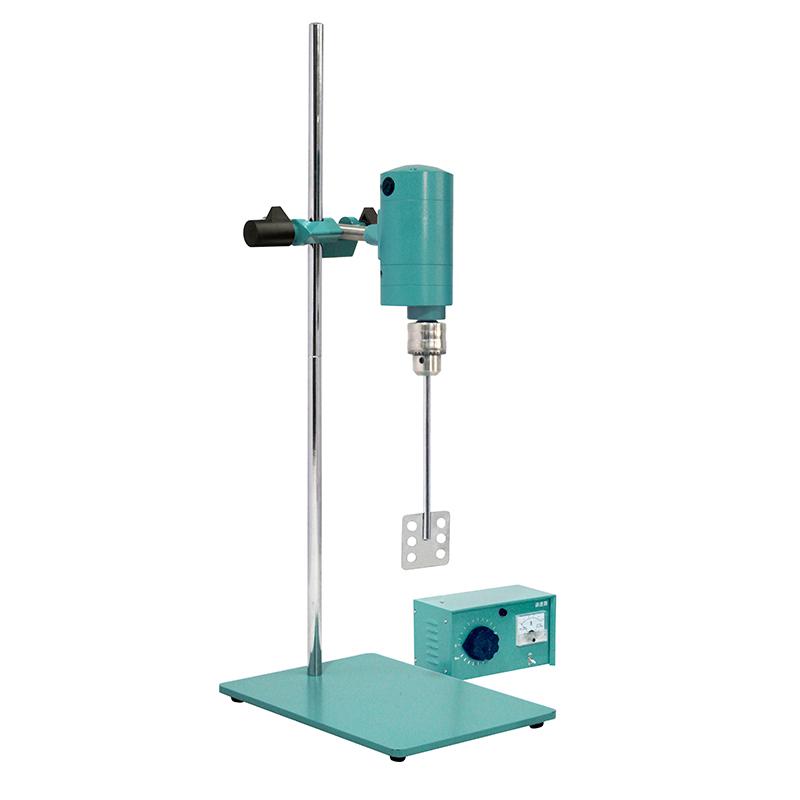

The ANGNI AM300L-P powerful electric Stirrer is a laboratory electric Stirrer. It is driven by a compact series motor and is suitable for mixing and stirring low to medium and high viscosity liquids in laboratories or pilot workshops. The machine has a compact design and structure, consisting of a drive motor, a torque increasing mechanism and a speed control controller. It has the characteristics of high output power, high torque and convenient speed regulation.
Features
1. Adopt high-density die-casting aluminum alloy body for stable operation
2. Apply a force-boosting transmission mechanism at the output end to double the output torque
3. Driven by serial micro motor
4. With high output power, high torque, and convenient speed regulation
5. Adopt stepless speed regulation, Speed range 0~ 1800rpm
6. Processing capacity range is wide, up to 50~ 40000ml
7. Wide range of stirring viscosity treatment, up to 0~ 50000mPa · s
Principle
The Stirrer is driven by a series micro-motor, which doubles the output torque of the motor through a torque increasing mechanism, and then realizes stepless speed regulation through a speed control controller to drive the Impeller to mix and stir liquids.
Applications
Laboratory, pilot workshop
Standards
Duty Cycle S1 (Continuous)
Steps
1. Connect the power supply AC220V
2. Select the appropriate Impeller and fix it on the chuck
3. Impeller in the liquid to be stirred

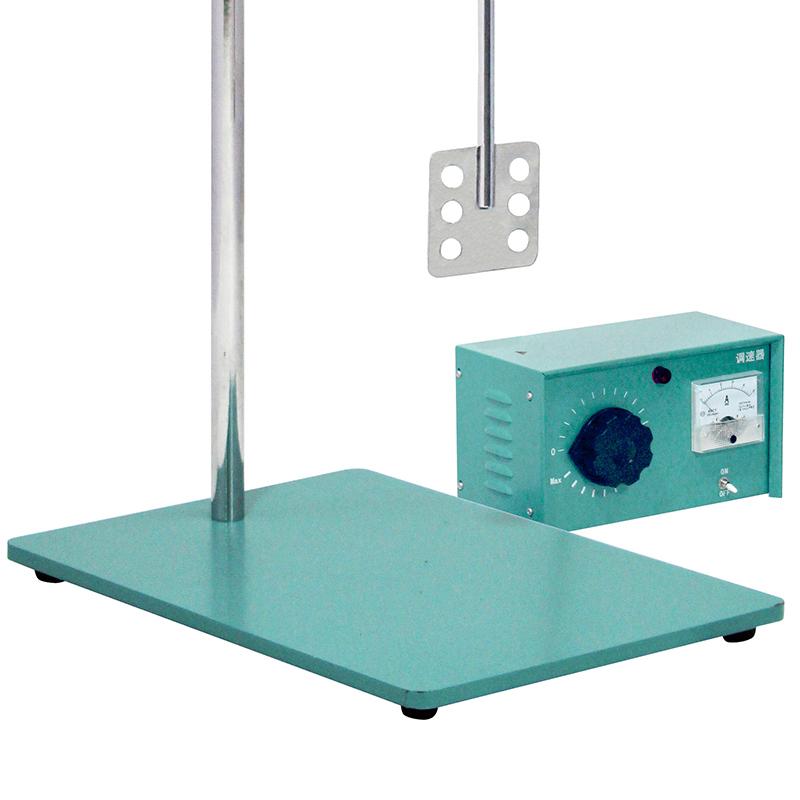

4. Adjust the required Rotation speed through the speed control box
5. Start Stirrer for stirring operation
6. Turn off the power after use
Notice
• Rated voltage must be AC220V
• Ambient Temperature must not exceed 40 ℃
• The relative humidity should not exceed 80%
• The clamping range of the rotary collet is limited to φ 2~ 13mm
Processing capacity should be within the range of 50~ 40000ml
• The stirring viscosity should be in the range of 0~ 50000mPa · s
• Make sure the Impeller is firmly fixed before use
• Pay attention to safety protection during operation
