Overview

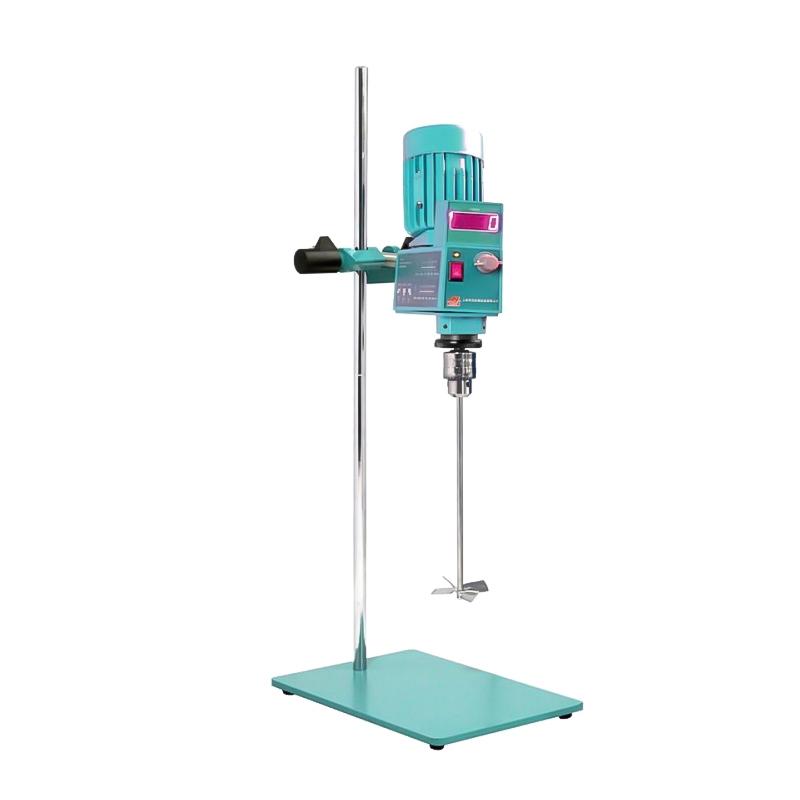

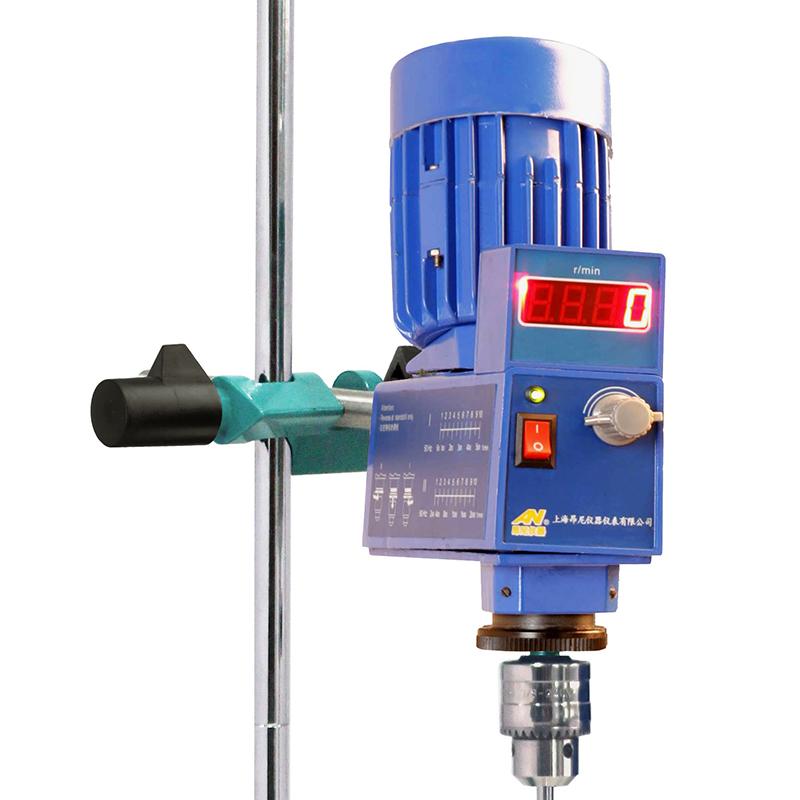

The ANGNI AM120Z-H digital display cantilever Stirrer is driven by a compact micro-motor, which is suitable for stirring and mixing of low to medium and high viscosity liquids in the laboratory. The machine is exquisitely designed and composed of a drive motor, a friction transmission mechanism and a speed control controller. The stirring host adopts high-density die-casting aluminum alloy as the body, and the running state is stable. Rotation speed and torque at the output end are basically kept constant.
Features
1. Adopt high-density die-casting aluminum alloy body for stable operation
2. Rotation speed and torque at the output are basically constant
3. Rotation speed doubles the torque
4. The speed controller adopts IC speed detection full constant power speed regulation technology
5. Rotation speed changes caused by load changes and Power supply voltage fluctuations
6. Screen display intuitive digitalization Rotation speed for data collection
7. Quick turn chuck fixing method, clamping range φ 2~ 10mm
8. Stepless speed regulation mode, Speed range 60~ 500rpm/240~ 2000rpm
Principle
The Stirrer is driven by a micro motor and realizes power transmission through a friction transmission mechanism. The speed controller adopts IC speed detection full constant power speed regulation technology, which can instantly and effectively compensate for the Rotation speed changes caused by load changes and Power supply voltage fluctuations, ensuring Stability of stirring Rotation speed.
Applications
Laboratory liquid stirring and mixing
Steps
1. Connect the power supply AC 220V
2. Select High and Low Rotation speed
3. Stepless speed regulation through the control knob
4. Use Quick Swivel Collet to Fix Impeller
Step 5 Start the mixing operation
Notice
• Rated voltage AC 220V, Rated Frequency 50/60Hz
• Input Power 180W, Output Power 120W
• Max Torque 52N.cm
• Duty Cycle S1 (continuous)
• Stirringrod penetration diameter 8mm
• Processing capacity 50~ 20000ml
• Stirring viscosity processing range 0~ 10000mPa.s
• Permissible Ambient Temperature ≤ 40 ℃
• Allowable relative humidity ≤ 80%
• Machine weight 10kg
