Overview

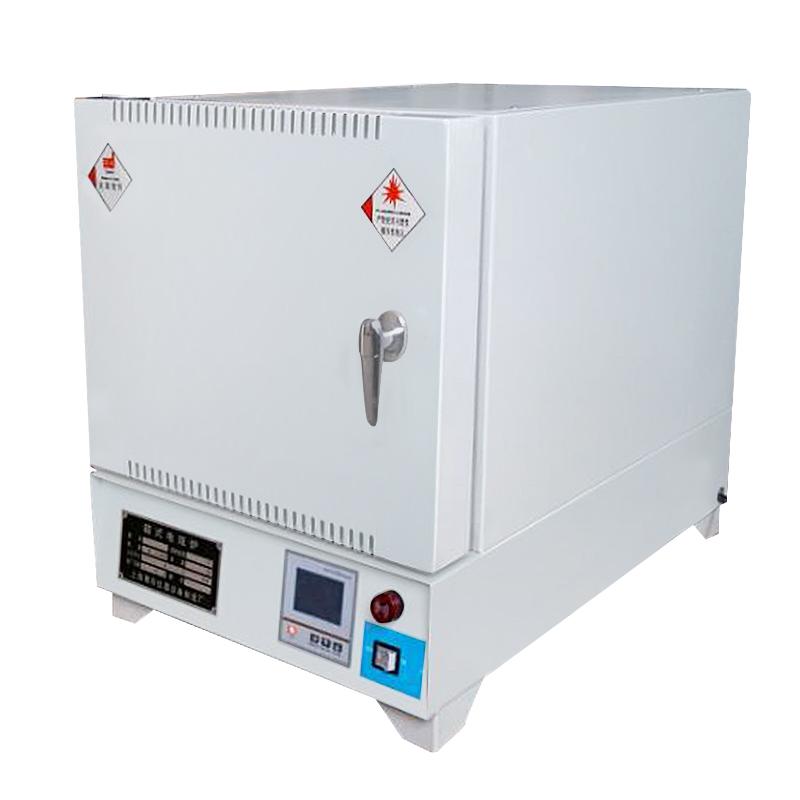

BOZHEN BZH-10-12 ash determination muffle furnace is a new generation of energy-saving intelligent products with high performance mechatronics. It is mainly used to determine the content of plastic glass fiber and Miscellaneous. It is a satisfactory equipment for plastic processing, production enterprises, scientific research departments, and universities. The equipment can intelligently control time and temperature in sections, in line with ISO 3451-1:1997 and GB/T9345.1-2008 standards.
Features
1. Adopting domestic professional technology, the furnace shell is made of good steel plate by folding welding and drawing, and the control box and the furnace body are integrated.
2. Beautiful appearance, the inner lining is a rectangular overall lining made of high aluminum and silicon carbide refractory materials.
3, made of iron-nickel-chromium-aluminum alloy wire wound into a spiral heating element through the inner lining, the lower, left and right wire groove, up and down left and right heating.
4. The furnace is a sealing structure, and the fire-resistant fiber aluminum silicate cotton and diatomaceous earth products are used as insulation layers between the furnace and the furnace shell.
5. The overall design is reasonable, the service life is long, and the left opening door and chimney exhaust device are convenient to operate, beautiful in appearance, elegant in craftsmanship, sturdy and durable, and not easy to deform.
Principle
Adopting industrial PID self-tuning control technology, microcomputer intelligently controls the temperature. After setting the temperature, the instrument controls the heating output by itself, and the temperature control is accurate and stable. With start timing or thermostatic start Timing function after setting the temperature, over-temperature alarm and automatically cut off the heating output.
Applications
Plastic processing, production enterprises, scientific research departments, universities
Standards
ISO 3451-1:1997, GB/T9345.1-2008 Plastics, Determination of ash, Part 1 General methods
Steps
1. Working time and temperature.
2, start the equipment, the instrument controls the heating output by itself.
3. Automatic shutdown after the thermostatic time arrives.
Notice
• The equipment has an over-temperature alarm device, which automatically cuts off the heating output when it exceeds the temperature.
• Power supply voltage is 220V 50Hz before use.
• The temperature measurement port is above the back of the furnace body, and Thermocouple enters from here.
• The heating wire terminal is located below the back of the furnace body.
• The controller is located under the furnace body and has a built-in Control system.
• Avoid overtemperature during operation, with built-in secondary overtemperature protection device.
