Overview

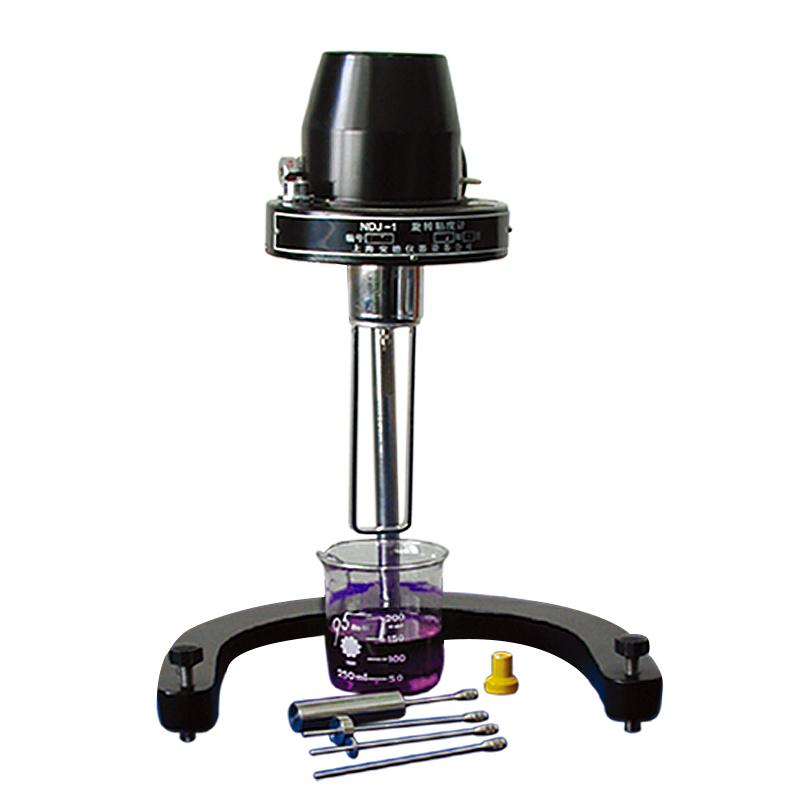

ANDE NDJ-1 Rotational Viscometer is a new type of instrument for measuring the viscosity of liquids, which is widely used in the determination of the viscosity of various fluids such as oils, paints, plastics, food, Adhesives, etc.
Features
1. Dial Display mode
2. Wide viscosity measurement range, 10~ 100000mPa · s
3. Equipped with a variety of rotor specifications: 1 #, 2 #, 3 #, 4 #
4. Multi-gear Rotor speed optional: 6/12/30/60rpm
5. Measurement accuracy of +/- 5% F.S
6. Power supply voltage adaptability: 220V +/- 10V 50Hz
7. Dimensions Compact: 300 * 300 * 450mm
8. Lightweight: 1.5kg (excluding bracket)
Principle
This instrument indirectly determines the viscosity of the liquid by measuring swirl/spin resistance of the rotor in the liquid.
Applications
Oil, Grease, inks, Stock, Food, Coatings, Cosmetics
Steps
1. Select the appropriate rotor and install it
2. Rotation speed required
3. Immerse the rotor in the liquid to be tested
4. Start the instrument for measurement
5. Read the viscosity value displayed by the pointer
Notice
• Only for viscosity measurement of Newtonian liquids
• Power supply voltage within 220V +/- 10V range before use
• The rotor needs to be completely immersed in the liquid during measurement
• Periodically calibrated for Measurement accuracy
• Avoid use in humid or corrosive environments
