Overview

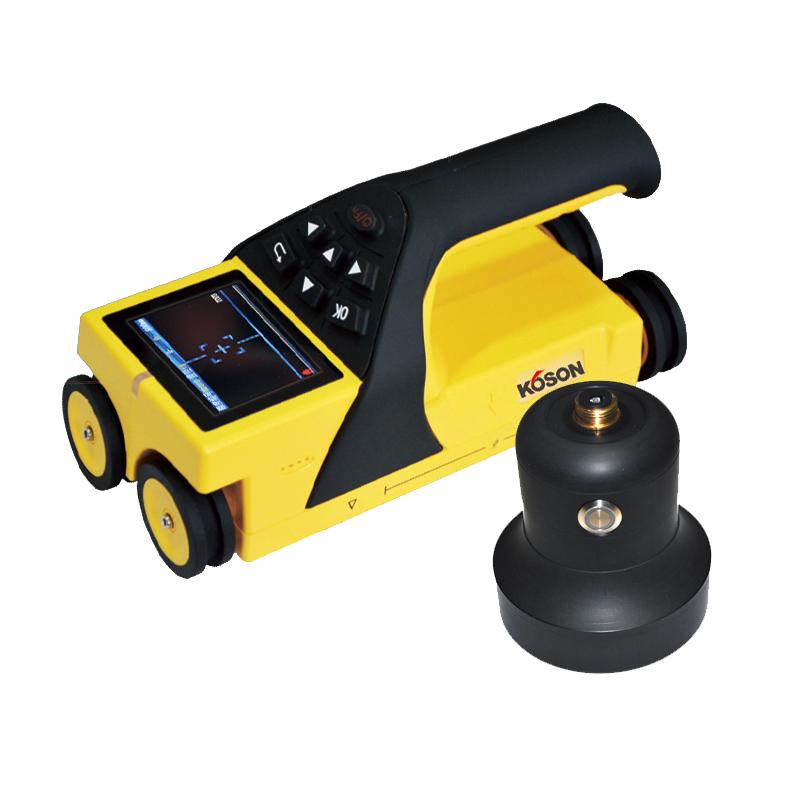

KOSON KS-90 integrated floor thickness gauge is mainly used for nondestructive detection of concrete structures or other non-ferromagnetic medium thickness measurement, such as: casting floor, wall, beam, column, wood and ceramics and other non-ferromagnetic thickness measurement; The unique design method of receiving Probe and the host is one, only needs to be tested on the corresponding surface of the transmitting Probe (floor, etc.) to measure the non-ferromagnetic thickness value.
Features
1. Adopt fast real-time positioning, display the position of the transmitting Probe in real time, and realize fast positioning through direction indication;
2. Adopt real-time display measurement value, automatically lock the true thickness;
3.2.8-Inch high-resolution color LCD screen, the detection data can be clearly seen in any situation indoors and outdoors;
4. Adopt single-hand grip and operation design, easy to operate and fast to automatically find the position of the launching Probe;
5. Using USB mode data transmission, the stored data can be quickly uploaded to the computer through the USB cable;
6. Data storage, view, delete and other functions in the data management mode can store more than 200,000 test point data;
7. Adopt host and receiver Probe integrated design, small size, light weight, easy to carry;
8. Using four-wheel positioning mode, the outer wheel is equipped with high-strength wear-resistant tires, which is convenient for protecting the abrasion of the instrument;
9. Standard calibrated test block with professional unique design;
10. The standard telescopic rod adopts a professional and unique double 90-degree universal joint, which can be adjusted within a 360-degree range.
Principle
The unique design of the receiver Probe and the host is integrated into one, and the nondestructive measurement of the thickness of the non-ferromagnetic medium is realized by testing the transmitting Probe on the corresponding surface.
Standards
GB50204-2002、JJF1224-2009
Steps
1. Place the launch Probe on the corresponding surface of the object to be measured;
2. Hold the host with one hand and quickly locate the position of the transmitting Probe through the direction indication;
3. Real-time display measurement value, automatically lock the true thickness;
4. Upload the stored data to the computer via a USB cable.
