Overview

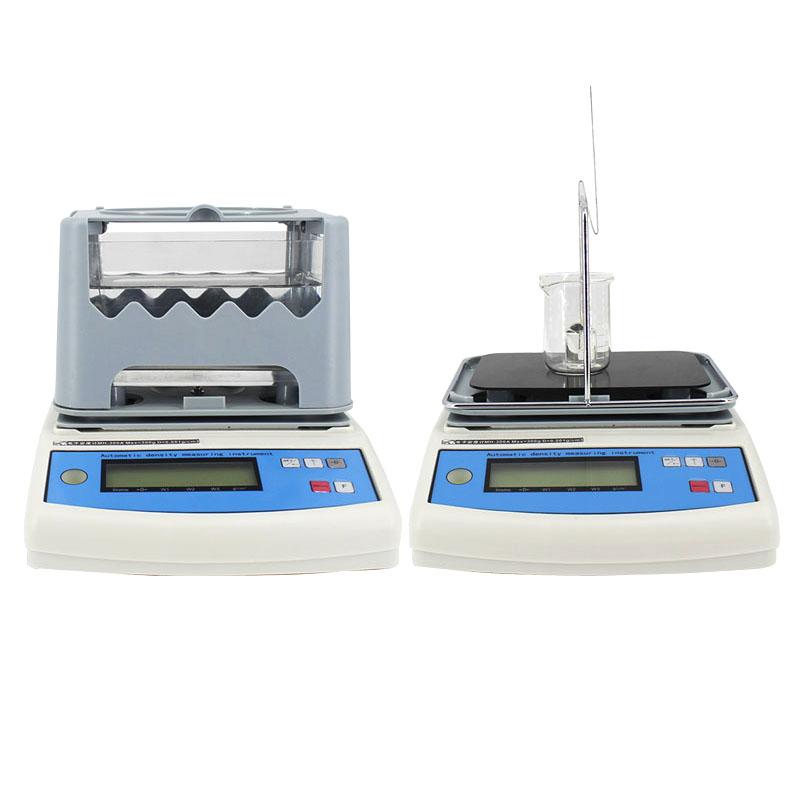

XIONGFA GP-300S solid-liquid dual-use Density Meter is a solid-liquid dual-use density measuring instrument. It applies the principle of Archimedes, is durable, has fine workmanship, stable performance, is simple and fast to operate, and can read density values instantly. Designed in strict accordance with national standard operating specifications, it is a good choice for quality management in various industries and laboratory specific gravity density testing.
Features
1. Directly read the density value and volume value of any shape with a density greater than one or less than a block, particle, floating body
2. Simple operation, high accuracy, Repeatability
3. Can set temperature compensation, solution compensation setting, more user-friendly operation, more in line with field operation needs
4. Adopt integrated molding large sink design (length, width and height 150 * 100 * 70mm), which can measure the density of relatively large block objects
5. Integrated injection molding of density accessories, durable, not easy to break, and more convenient to operate
6. Configure Draft Shield for better field testing
7. One-step operation makes it easy to achieve multiple consecutive rapid tests
8. Fast measurement of any solution
9. Digital display, Measurement accuracy, easy operation, stable and durable
10. Convenient sampling, only 50ml of the tested sample
11.The measurement cup is easy to clean, not limited by the small diameter of the Specific Gravity bottle, can be used for repeability, and can also use disposable measurement cups
12. No Wechsler Balance, Specific Gravity bottling cumbersome debugging and operation
Principle
The solid model uses the Archimedes principle buoyancy method to accurately read the measured values directly. The liquid model uses the Archimedes buoyancy method and the water displacement method to quickly and directly read the liquid density value/concentration value.
Applications
Rubber, Plastic, Pipe, Plate, Wire and cable, Carbide, Polyurethane, Insulation material, Refractory material, Solid board, PE particles, New material, Solid profile, Foam material, Colloidal particles, Sponge, Foam, Ceramics, Powder metallurgy, Rock, Plastic particles, EVA material, PU foam, Plastic composite, Polymer material, Graphite material, Glass products, Flux, Colloid, Oily body, Crude oil, High viscosity, Suspension, Emulsion, Colloid density and other products
Standards
GB/T533, ISO2781, ASTMD297-93, DIN 53479, ASTMD792, D618, D891, ISO1183, GB/T1033, ASTM D792-00, JISK6530, GB/T5526, 13531, 15223, 5009, JIS, ISO specifications
Steps
1. Solid mode: According to the standard, the Archimedes principle buoyancy method is used to accurately read the measured values directly
2. Liquid mode: apply Archimedes' buoyancy method and water displacement method to quickly and directly read the liquid density value/concentration value
Notice
• Measurement types include solids, particles, films, floats, liquids
• Weighing range is 0.01~ 300g
• density accuracy of 0.001g/cm ³
• Measurement range of density 0.001~ 99.999g/cm ³
The test time is approximately 5 seconds
• The result is displayed as density
• The temperature compensation solution temperature can be set to 0~ 100 ℃
• Solution compensation can be set to 19.999
