Overview

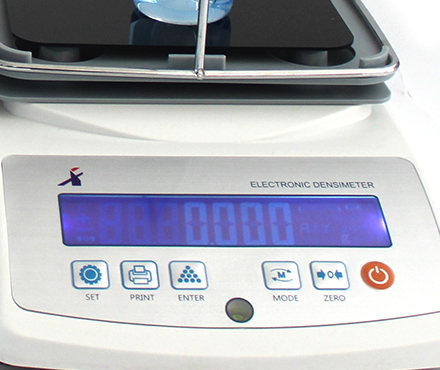

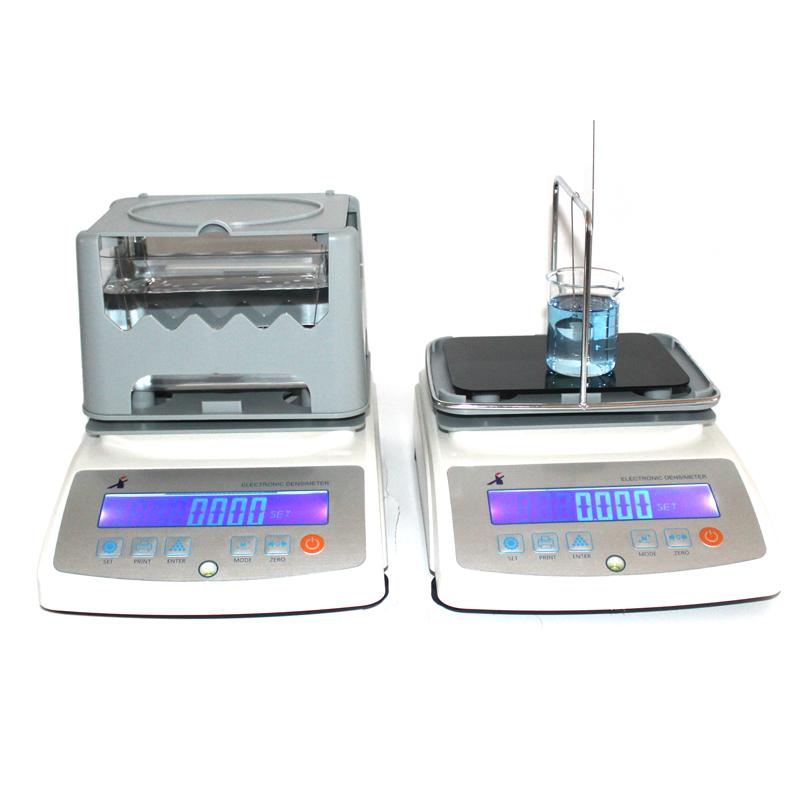

XIONGFA XF-300M solid-liquid dual-use Density Meter is a solid-liquid dual-use density measuring instrument. It applies the principle of Archimedes, is durable, has fine workmanship, stable performance, is simple and fast to operate, and can read density values instantly. Designed in strict accordance with national standard operating specifications, it is a good choice for quality management in various industries and laboratory specific gravity density testing.
Features
1. Solid characteristics: direct reading of any shape density greater than one or less than the density value and volume value of a block, particle, floating body; simple operation, high accuracy, good Repeatability; temperature compensation setting, solution compensation setting, more user-friendly operation; with RS-232C computer interface, can be connected to the printer; integrated molding large sink design, can measure the density of large block objects; density accessories integrated injection molding, durable; configuration Draft Shield, suitable for field testing.
2. Liquid characteristics: one-step operation, convenient for multiple continuous rapid tests; any solution can be quickly measured; digital display, Measurement accuracy is high, easy to operate, stable and durable; easy sampling, only 50ml sample; measurement cup easy to clean or disposable use; No Wechsler Balance method, Specific Gravity bottle method cumbersome debugging; with RS-232C communication interface, can be connected to PC and printer; Configure Draft Shield, suitable for on-site testing.
Principle
The solid model uses Archimedes' principle buoyancy method to accurately read the measured value directly. The liquid model uses Archimedes' buoyancy method and water displacement method to quickly read the liquid density value or concentration value directly.
Applications
Rubber, Plastic, Pipe, Sheet, Wire and cable, Carbide, Polyurethane, Insulation material, Refractory material, Solid board, PE particles, New material, Solid profile, Foam material, Colloidal particles, Sponge, Foam, Ceramics, Powder metallurgy, Rock, Plastic particles, EVA material, PU foam, Plastic composite, Polymer material, Graphite material, Glass products, Flux, Colloid, Oily body, Crude oil, High viscosity, Suspension, Emulsion, Colloid and other products
Standards
Solid mode: GB/T533, ISO2781, ASTMD297-93, DIN 53479, ASTMD792, D618, D891, ISO1183, GB/T1033, ASTM D792-00, JISK6530, ASTM D792-00, JISK6530 standards; Liquid mode: GB/T5526, 13531, 15223, 5009, JIS, ISO specifications
Steps
1. Solid measurement: place the sample on the measurement table, operate according to the instrument prompts, and directly read the density value and volume value.
2. Liquid measurement: Take about 50ml of sample into the measurement cup, start the instrument, and quickly read the density value or concentration value.
Notice
• Ensure sample cleanliness to avoid impurities affecting Measurement accuracy
• Check the instrument status before use to ensure that Draft Shield is configured correctly
• Pay attention to the sample temperature during liquid measurement, and temperature compensation can be set
• Pay attention to the sample size when measuring solids, and do not exceed the capacity of the sink
• Regularly clean the measurement cup and accessories to keep the instrument stable
When connecting a printer or PC, ensure that the interface is compatible
