Overview

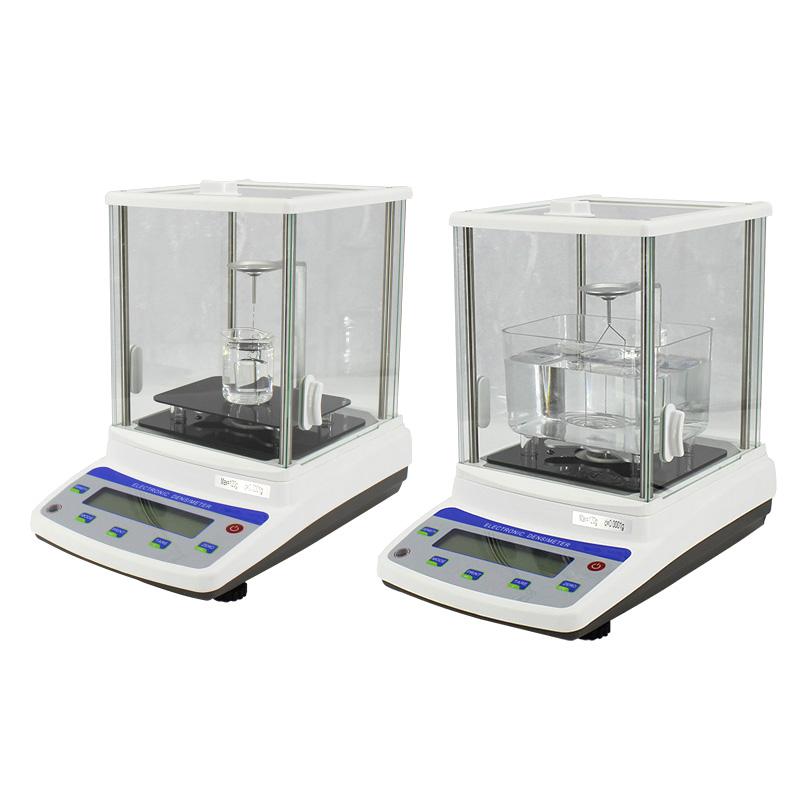

XIONGFA XF-120GY solid-liquid dual-use Density Meter is a solid-liquid dual-use density measuring instrument. It applies the principle of Archimedes, is durable, has fine workmanship, stable performance, is simple and fast to operate, and can read density values instantly. Designed in strict accordance with national standard operating specifications, it is a good choice for quality management in various industries and laboratory specific gravity density testing.
Features
1. Directly read the density value and volume value of any shape with a density greater than one or less than a block, particle, floating body
2, Simple operation, high accuracy, Repeatability
3, temperature compensation setting, solution compensation setting, more user-friendly operation, more in line with the needs of field operations
4. With RS-232C computer interface, it can be easily printed
5. Adopt integrated molding large sink design (length, width and height 150 * 100 * 70mm), which can measure the density of relatively large block objects
6, density accessories integrated injection molding, durable, not easy to break, the operation is more convenient
7. Configure Draft Shield, more suitable for field testing
8. One-step operation makes it easy to achieve multiple consecutive rapid tests
9, any solution can be rapid measurement
10, Digital display, Measurement accuracy, easy operation, stable and durable
11, easy sampling, the sample only 50ml
12. The measurement cup is easy to clean and is not limited by the small diameter of the Specific Gravity bottle. It can be used with repeability. At the same time, disposable measurement cups can also be used
13, No Wechsler Balance, Specific Gravity bottling cumbersome debugging and operation
14, with RS-232C communication interface, easy to connect PC and printer, optional XF-68 printer printing measurement data
Principle
The solid model uses the Archimedes principle buoyancy method to accurately read the measured values directly. The liquid model uses the Archimedes buoyancy method and the water displacement method to quickly and directly read the liquid density value/concentration value.
Applications
Rubber, Plastic, Pipe, Plate, Wire and cable, Carbide, Polyurethane, Insulation material, Refractory material, Solid board, PE particles, New material, Solid profile, Foam material, Colloidal particles, Sponge, Foam, Ceramics, Powder metallurgy, Rock, Plastic particles, EVA material, PU foam, Plastic composite, Polymer material, Graphite material, Glass products, Flux, Colloid, Oily body, Crude oil, High viscosity, Suspension, Emulsion, Colloid density and other products
Standards
Solid mode: GB/T533, ISO2781, ASTMD297-93, DIN 53479, ASTMD792, D618, D891, ISO1183, GB/T1033, ASTM D792-00, JISK6530
Liquid mode: GB/T5526, 13531, 15223, 5009, JIS, ISO specifications
Steps
1. One-step operation makes it easy to achieve multiple consecutive rapid tests
2, easy sampling, the sample only 50ml
3, measurement cup is easy to clean, not limited by Specific Gravity bottle diameter, can be used repeability
4, No Wechsler Balance, Specific Gravity bottling cumbersome debugging and operation
5, temperature compensation setting, solution compensation setting, more user-friendly operation, more in line with the needs of field operations
6. With RS-232C computer interface, it can be easily printed
