Overview

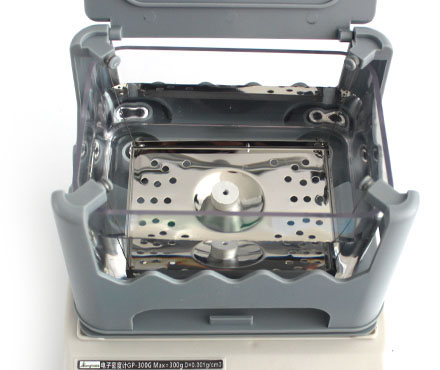

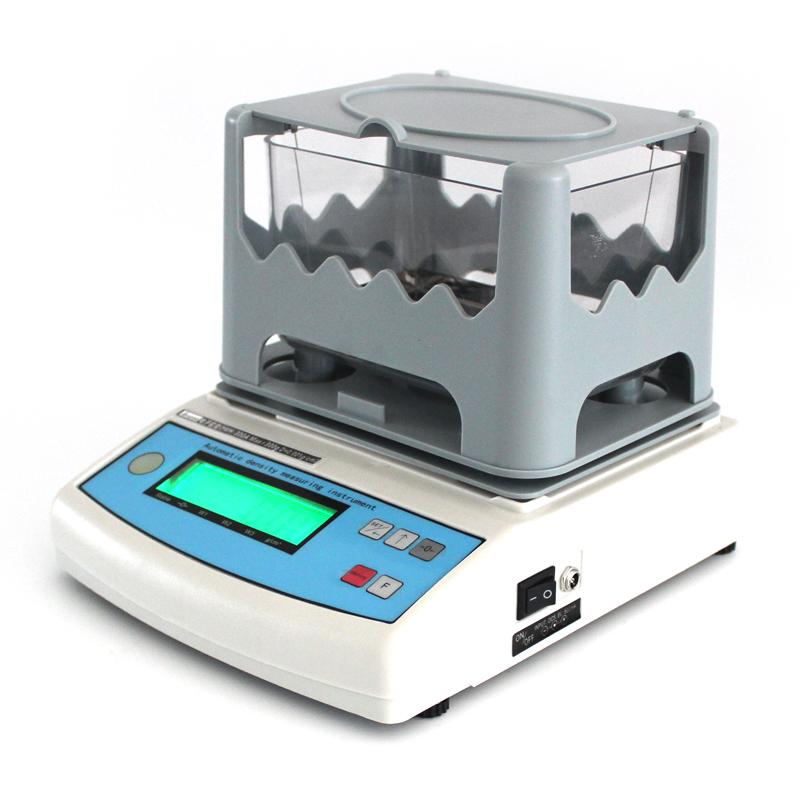

XIONGFA GP-300E Solid Density Meter is a professional equipment with accurate measurement, easy operation, stability and durability. The machine adopts an integrated injection molding measurement frame and a transparent water tank, which has anti-corrosion, drop resistance and break resistance. The water hanging wire is made of 0.5mm stainless steel to ensure that it does not deform and does not touch the water tank perpendicular to the hanging rail.
Features
1. Rapid testing, more effective, more suitable for on-site rapid multiple testing
2. PVC particles, EVA foam, PE film, Calcium Carbonate powder, vulcanized rubber, sealing ring and other similar products can be quickly measured
3. Accurate measurement, easy and smooth operation, durable and economical
4. Automatic Zero tracking, buzzer alarm, overload alarm function
5. With actual water temperature compensation function
6. Use water as a medium, and other liquid media can also be used
7. Using integrally formed large-capacity measurement accessories (size: length 15.3 × width 10.7 × height 8.0cm), the sink is anti-corrosion, drop-resistant and break-resistant
8. Equipped with a special windproof and dust cover, the combination is convenient and sturdy
Principle
The Solid Density Meter calculates the density value by measuring the difference in weight of the sample in an air-neutralized liquid medium. The device uses the water hanging method, using water or Miscellaneous liquid as the medium, combined with automatic Zero tracking and actual water temperature compensation to ensure the accuracy of the measurement results.
Applications
Rubber, Plastic, Wires and cables, Electrical appliances, Sports equipment, Tires, Glass products, Carbide, New materials research laboratory, Metal products, Powder metallurgy, Precision ceramics, Refractory materials, Magnetic materials, Alloy materials, Mechanical parts, Metal recycling, Minerals and rocks, Cement manufacturing, Jewelry industry
Standards
ASTM D792、ASTM D297、GB/T1033、GB/T2951、GB/T3850、GB/T533、HG4-1468、JIS K6268、ISO 2781、ISO 1183
Steps
1. Place the sample on the measurement table
2. measurement of sample weight in air
3. Immerse the sample in a liquid medium for weight measurement
4. The device automatically calculates and displays the density value
5. Read measurement results
Notice
• Make sure the equipment is placed horizontally before use
• Regularly check whether the water hanging wire is in good condition
• Keep the sink clean to avoid contamination
• Sample size should not exceed measurement capacity
• Use the appropriate liquid medium for measurement
• Avoid overloading equipment
