Overview

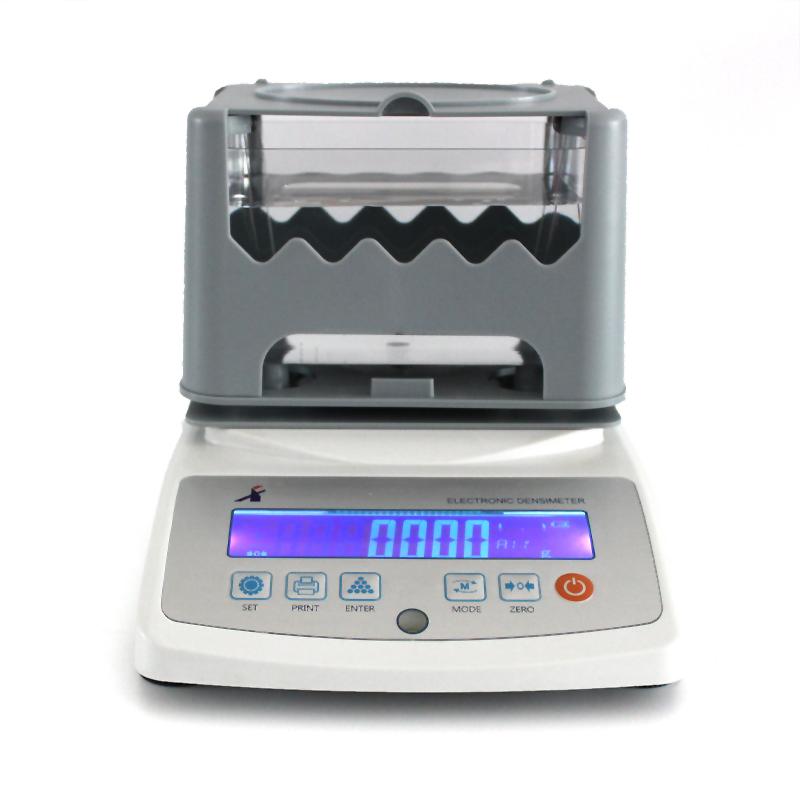

XIONGFA MDJ-300A Solid Density Meter adopts the original imported sensor from German HBM and cooperates with the density component produced by XIONGFA to quickly test the density and volume of various solids. The product is simple to operate and fast to test, and is suitable for density measurement of various solid materials.
Features
1. Directly read the density and volume of any solid block, particle, floating body with a density > 1 or < 1
2. With temperature compensation setting, solution compensation setting function, more user-friendly operation, more in line with the needs of field operations
3. Integrated injection molding of density measurement table, easy and fast installation, longer use time
4. The integrated forming corrosion-resistant large sink design is adopted to reduce the error caused by the buoyancy of the hanging rail line, and it is also convenient to test relatively large block objects
5. With density upper and lower limit functions, it can determine whether the specific gravity of the object to be tested is qualified or not, and a buzzer device is provided
6. With RS-232C computer interface, it can easily connect PCs and printers
7. Built-in battery, with Draft Shield, more suitable for field testing
8. Optional liquid accessories, you can test the density and concentration of the liquid
Principle
MDJ-300A Solid Density Meter meets the standards ASTM D792, ASTM D297, GB/T1033, GB/T2951, GB/T3850, GB/T533, HG4-1468, JIS K6268, ISO 1183, ISO 2781, ASTM D297-93, DIN 53479, D618, D891, ASTM D792-00, JIS K6530 and other standards.
Applications
Rubber, Plastic, Wires and cables, Electrical appliances, Sports equipment, Tires, Glass products, Carbide, Powder metallurgy, Magnetic materials, Seals, Ceramics, Sponge, EVA materials, Foam materials, Alloy materials, Friction materials, New materials research, Battery materials, Research laboratories
Standards
ASTM D792、ASTM D297、GB/T1033、GB/T2951、GB/T3850、GB/T533、HG4-1468、JIS K6268、ISO 1183、ISO 2781、ASTM D297-93、DIN 53479、D618、D891、ASTM D792-00、JIS K6530
Steps
1. Prepare the solid sample to be tested
2. Place the sample on the density measurement table
3. Set temperature compensation and solution compensation as needed
4. Start the measurement and read the result after about 5 seconds
5. Results show weight, density, volume data
6. Data output can be connected to a computer or printer through the RS-232C interface
Notice
• The weighing range is 0.01g~ 300g, please ensure that the sample weight is within this range
• Measurement range of density 0.001~ 99.999g/cm ³
• temperature compensation can be set solution temperature 0~ 100 ℃
• Solution compensation can be set to 19.999
• Suitable for solid, granular, film, floating body and other measurement types
• Built-in battery, suitable for field test use
