Overview

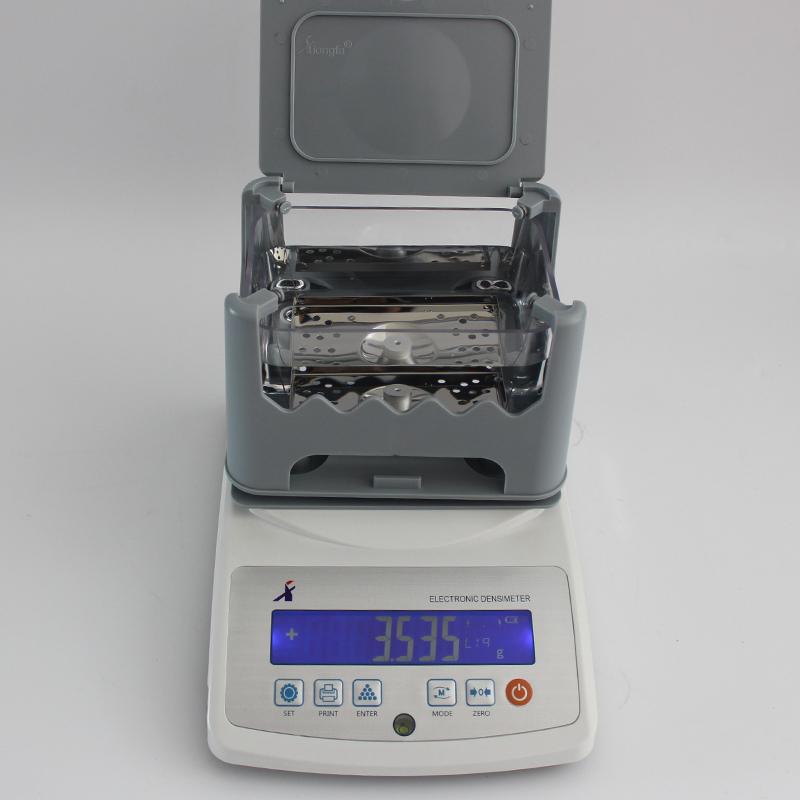

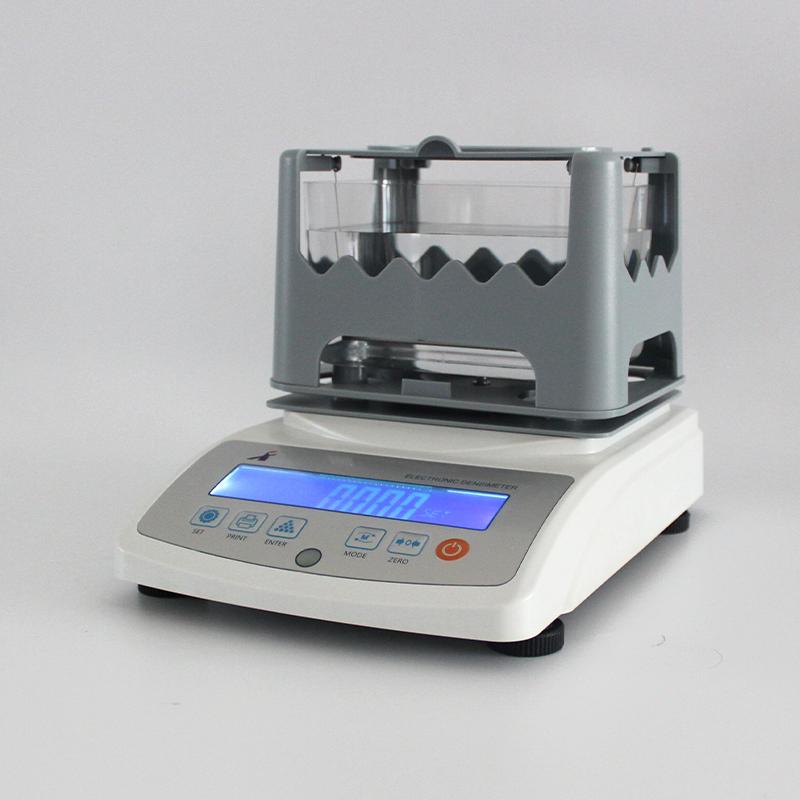

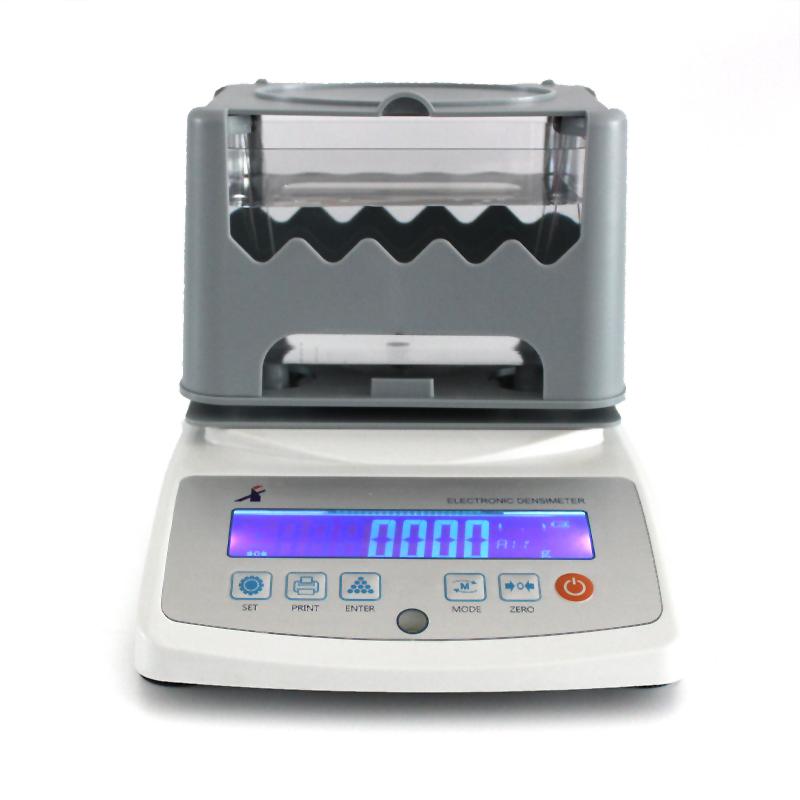

The XIONGFA MDJ-600A Solid Density Meter adopts the original imported sensor from German HBM and cooperates with the density component produced by XIONGFA to quickly test the density and volume of various solids. The product is simple and fast to operate and is suitable for density measurement of various solid materials.
Features

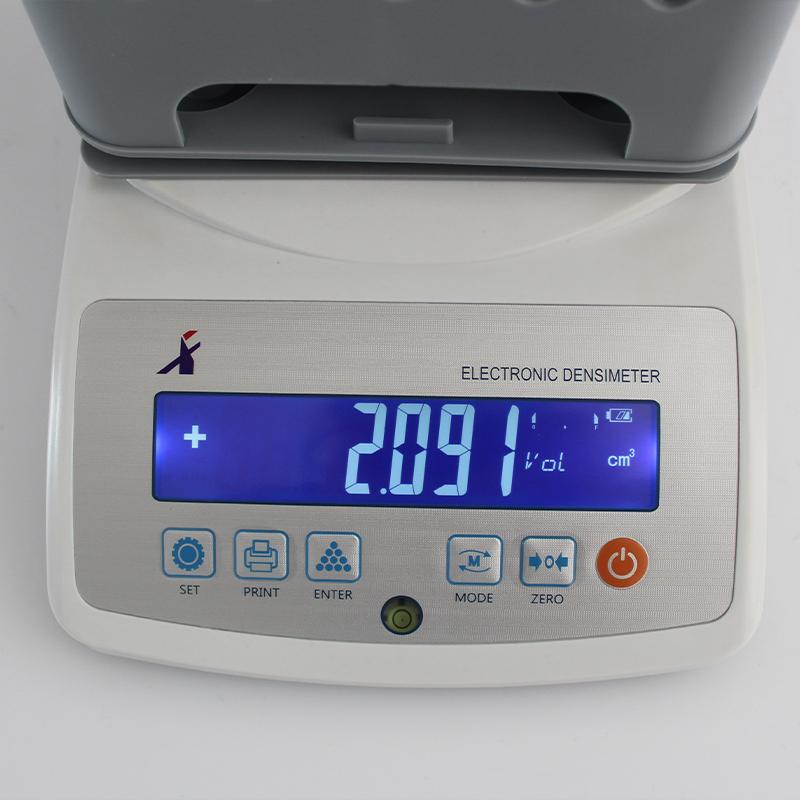

1. Directly read the density and volume of any solid block, particle, floating body with a density greater than 1 or less than 1
2. With temperature compensation setting and solution compensation setting functions, the operation is more user-friendly and meets the needs of on-site operations
3. Integrated injection molding of density measurement table, easy and fast installation, longer use time

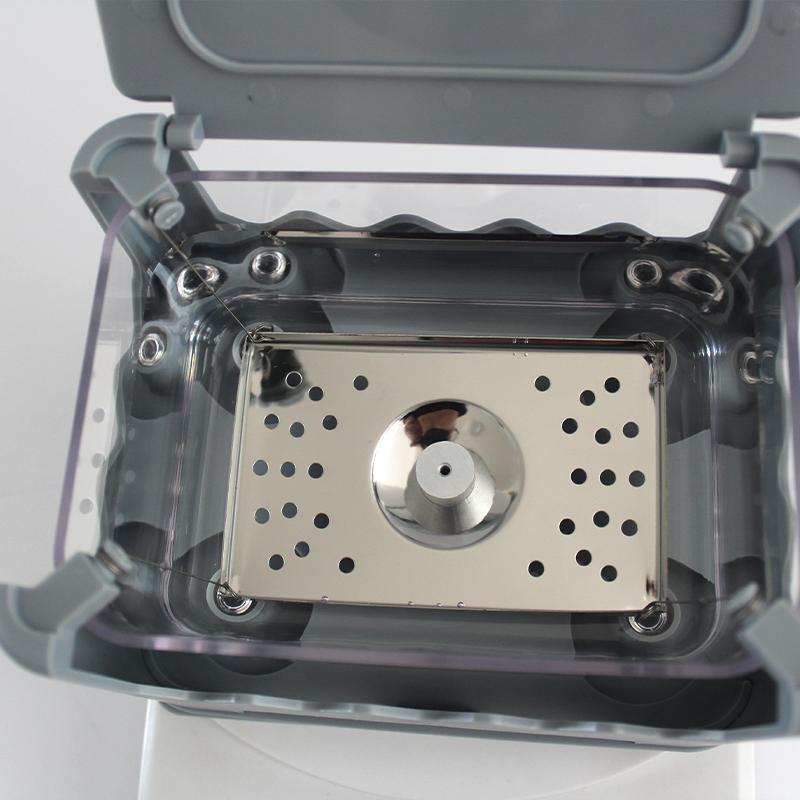

4. Adopt integrated forming corrosion-resistant large sink design to reduce the buoyancy error of the hanging rail line and facilitate the testing of large objects
5. With density upper and lower limit function, can determine whether the specific gravity is qualified or not, with buzzer device

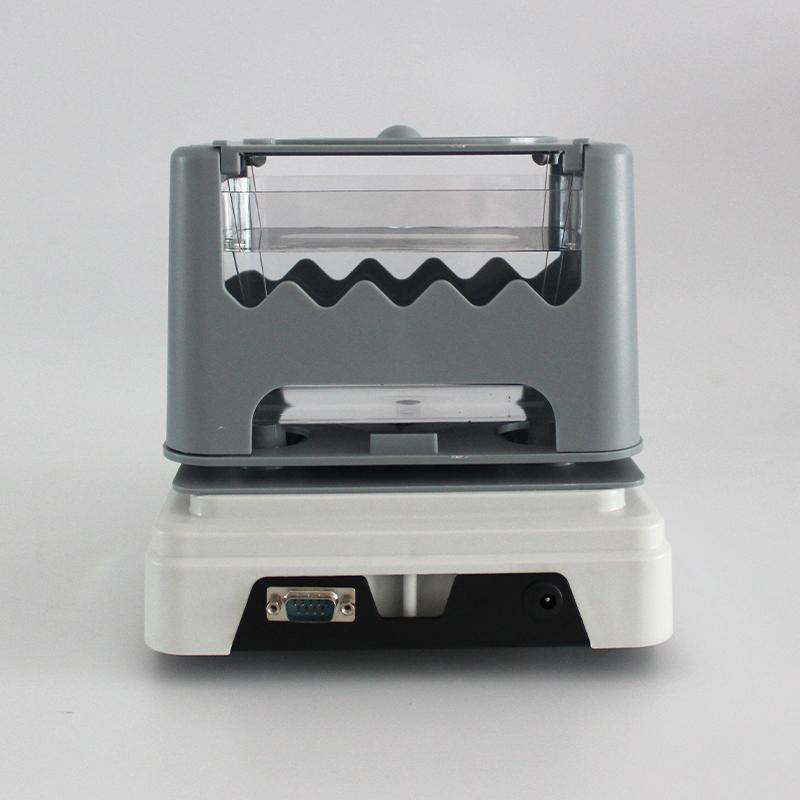

6. With RS-232C computer interface, it can be connected to PCs and printers
7. Built-in battery, with Draft Shield, more suitable for field testing
8. Optional liquid accessories, can test liquid density and concentration
Principle
The MDJ-600A Solid Density Meter is based on the standard ASTM D792, ASTM D297, GB/T1033, GB/T2951, GB/T3850, GB/T533, HG4-1468, JIS K6268, ISO 1183, ISO 2781, ASTM D297-93, DIN 53479, D618, D891, ASTM D792-00, JIS K6530 and other specifications for solid density and volume measurement through weighing and buoyancy principles.
Applications
Rubber, Plastic, Wires and cables, Electrical appliances, Sports equipment, Tires, Glass products, Carbide, Powder metallurgy, Magnetic materials, Seals, Ceramics, Sponge, EVA materials, Foam materials, Alloy materials, Friction materials, New materials research, Battery materials, Research laboratories
Standards
ASTM D792、ASTM D297、GB/T1033、GB/T2951、GB/T3850、GB/T533、HG4-1468、JIS K6268、ISO 2781、ISO 1183、ASTM D297-93、DIN 53479、D618、D891、ASTM D792-00、JIS K6530
Steps
1. Install density measurement table and sink
2. Set temperature compensation and solution compensation parameters
3. Place the solid sample to be tested
4. Start the measurement and read the result after about 5 seconds
5. Connect external devices through RS-232C interface (optional)
Notice
Make sure Sensors and Components are installed correctly
• Check the battery level before use
• Avoid sink corrosion, regular maintenance
• Pay attention to the sink capacity when testing large objects
• Set compensation parameters according to standards to ensure accuracy
