Overview

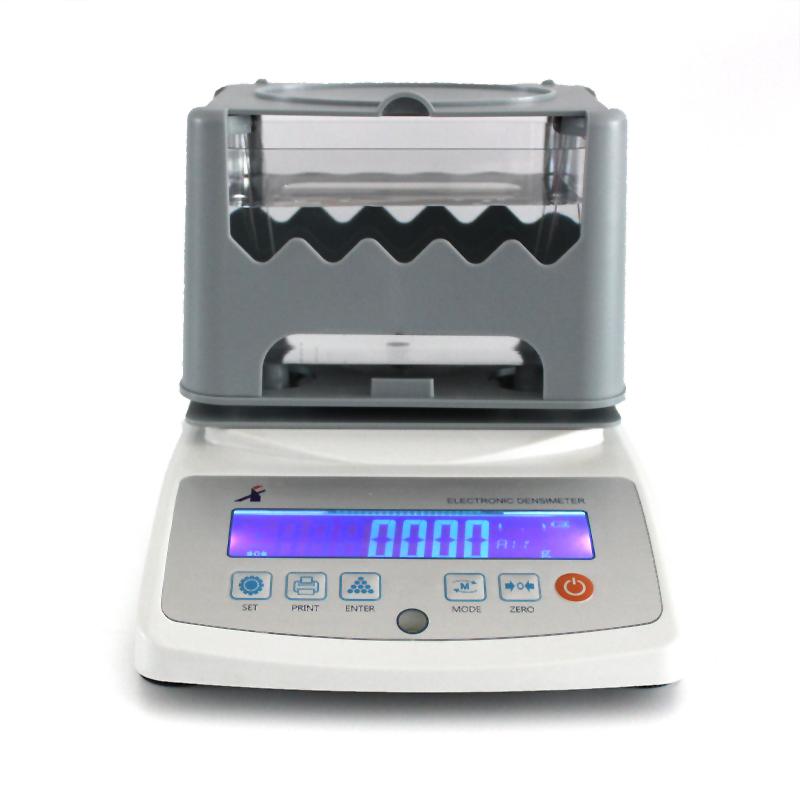

The XIONGFA MDJ-900A Solid Density Meter adopts the original imported sensor from German HBM and cooperates with the density component produced by XIONGFA to quickly test the density and volume of various solids. The product is simple and fast to operate and is suitable for density measurement of various solid materials.
Features
1. Directly read the density and volume of any solid block, particle, floating body with a density > 1 or < 1
2. With temperature compensation setting and solution compensation setting functions, the operation is more user-friendly and more in line with the needs of on-site operations
3. Integrated injection molding of density measurement table, easy and fast installation, longer use time
4. Adopt integrated forming corrosion-resistant large sink design to reduce the error caused by the buoyancy of the hanging rail line and facilitate the testing of larger block objects
5. With density upper and lower limit functions, it can determine whether the specific gravity of the object to be tested is qualified or not, and a buzzer device is provided
6. With RS-232C computer interface, it can easily connect to PCs and printers
7. Built-in battery, with Draft Shield, more suitable for field testing
8. Optional liquid accessories, can test the density and concentration of the liquid
Principle
The MDJ-900A Solid Density Meter is based on the Archimedes principle and calculates density and volume by measuring the weight difference of solids in air and water. The instrument uses High Accuracy Sensor and compensation technology to ensure the accuracy of measurement results.
Applications
Rubber, Plastic, Wires and cables, Electrical appliances, Sports equipment, Tires, Glass products, Carbide, Powder metallurgy, Magnetic materials, Seals, Ceramics, Sponge, EVA materials, Foam materials, Alloy materials, Friction materials, New materials research, Battery materials, Research laboratories
Standards
ASTM D792、ASTM D297、GB/T1033、GB/T2951、GB/T3850、GB/T533、HG4-1468、JIS K6268、ISO 2781、ISO 1183、ISO2781、ASTMD297-93、DIN 53479、D618、D891、ASTM D792-00、JISK6530
Steps
1. Place the sample on the measurement table
2. Weighing in air for weight data
3. Immerse the sample in water and weigh it
4. The instrument automatically calculates and displays density and volume results
5. Determine whether the specific gravity is qualified according to the setting
Notice
• Make sure the instrument is placed horizontally before use
• Regularly calibrate instruments to ensure Measurement accuracy
• Avoid use in strong electromagnetic interference environments
Keep the measurement table and sink clean
• Ensure that the sample is completely submerged and free of bubbles during testing
• Batteries need to be charged regularly
• Use the appropriate solution for compensation setting
