Overview

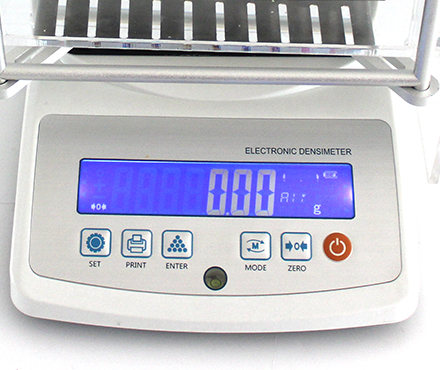

XIONGFA XF-1200D Solid Density Meter is a large-range solid specific gravity meter, specially used for density testing of large parts that cannot be damaged or cut. The product adopts German precision Sensor with professional specific gravity accessories, based on the principle of Archimedes buoyancy method, with accurate, direct reading measurement value, large range, large capacity and other characteristics. The main engine is imported from Germany, with High Accuracy, High Stability, automatic weight correction and environment automatic adjustment functions, which can instantly display the density value. The test is simple, fast and effective. It is suitable for High Accuracy detection of density.
Features
1. The relative relationship between the compressive or tensile strength of the product and the overall density, so as to avoid the cross-section affecting the accuracy of density measurement when dividing the test.
2. Designed for the measurement of large parts, using a large specific gravity measurement table instead of the general Wall-Mounted measurement method.
3. The internal sink space is 24 * 17 * 12cm, and the actual usable space is 24 * 16 * 10cm. Large sink brackets can be customized without standard.
4. The maximum weight is 2000g/0.01g, and the density resolution is 0.001g/cm3.
5. Test density can indicate material composition changes or product defects, such as cracking or bubbles.
Principle
XIONGFA XF-1200D Solid Density Meter uses the principle of Archimedes buoyancy method to calculate density by measuring the weight difference of objects in air and liquid. The host adopts the original imported Sensor from Germany, combined with automatic weight correction and environment automatic adjustment functions, to ensure High Accuracy and High Stability, and can instantly display the density value.
Applications
Motor vehicle parts, aerospace parts, large machinery parts, sealing parts, rubber and plastic, EVA foam, sole, metallurgical industry, calcination industry, fireproof materials, powder metallurgy, sporting goods, Hardware products, cemented carbide, precious metal products, Key Laboratory, Materials Science Research Laboratory
Standards
ASTM D792、ASTM D297、GB/T1033、GB/T2951、GB/T3850、GB/T533、HG4-1468、JIS K6268、ISO 2781、ISO 1183、GB/T4196、GB/T4123、GB/T5586、JB/T778
Steps
1. Prepare test samples and solutions.
2. Use Accessories such as thermometers and clips to set up the environment.
3. Place the sample on the measurement table.
4. Start the device for automatic measurement.
5. Read the displayed density value, and the test time is about 5 seconds.
Notice
• Ensure that the sample cannot be damaged or cut to avoid inaccurate measurement.
• Accessories such as thermometer, clip and weight are checked before use.
• Set temperature compensation and solution compensation according to environmental conditions.
• Avoid exceeding the maximum weighing weight of 2000g to prevent equipment damage.
• Regular automatic weight correction to ensure accuracy.
