Overview

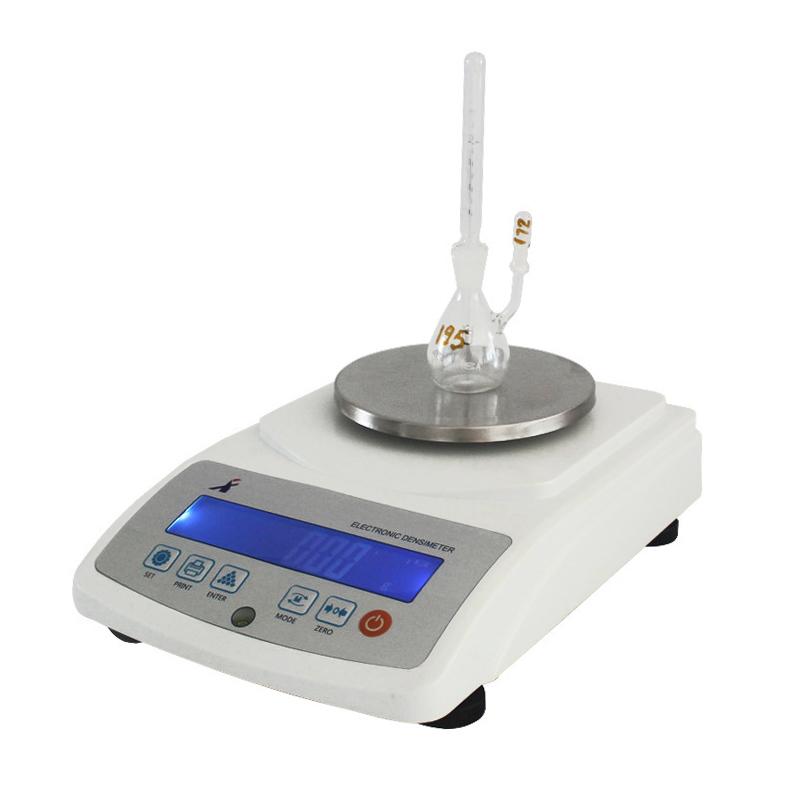

The XIONGFA XF-120FM Powder Density Meter uses Archimedes' Impregnation Volume Replacement Method with Special Specific Gravity bottle to accurately read the density. Measurement range is 0.001~ 120g, density Measurement range is 0.001~ 99.999g/cm ³.
Features
1. Directly read the density of any powder or powder
2. Simple operation, high accuracy, Repeatability
3. Can set temperature compensation, solution compensation setting, more user-friendly operation, more in line with field operation needs
4. With density upper and lower limit functions, it can determine whether the specific gravity of the object to be tested is qualified or not, and a buzzer device is provided
5. With RS-232C computer interface, it can easily connect to PCs and printers
6. Built-in battery, with Draft Shield, more suitable for field testing
Principle
The Powder Density Meter applies Archimide's Impregnation Volume Replacement Method and a Special Specific Gravity bottle for density measurement.
Applications
Vulcanized rubber, non-foam plastics, carbon true density, rock, coal true density, asphalt coke density, ordinary abrasive density, pigment density, solid and semi-solid petroleum asphalt density, pigment, cement powder, fireproof material, ceramic material, natural Stone, coal water slurry density, carbon material true density boiling method, soil true density test method, ion Resin wet true density, powder true density research laboratory
Standards
GB/T533-A、GB/T1033.1、GB/T6155、GB/T23561、YB/T5300、JB/T7984.3、GB/T1713、GB/T8929、GB/T1713、GB/T208、GB/T5071、QB/T1010、GB/T9966、GB/T18856、GB/T24203、GB/T8330、SL-237
Steps
1. Preparation of Samples and Specific Gravity bottles
2. Place the sample in a Specific Gravity bottle
3. Start the device for measurement
4. Read density results
Notice
Ensure equipment is used in a suitable environment
• Check the status of the equipment before use
• Strictly follow the operation steps for measurement
• Pay attention to the preparation and handling of samples
