Overview

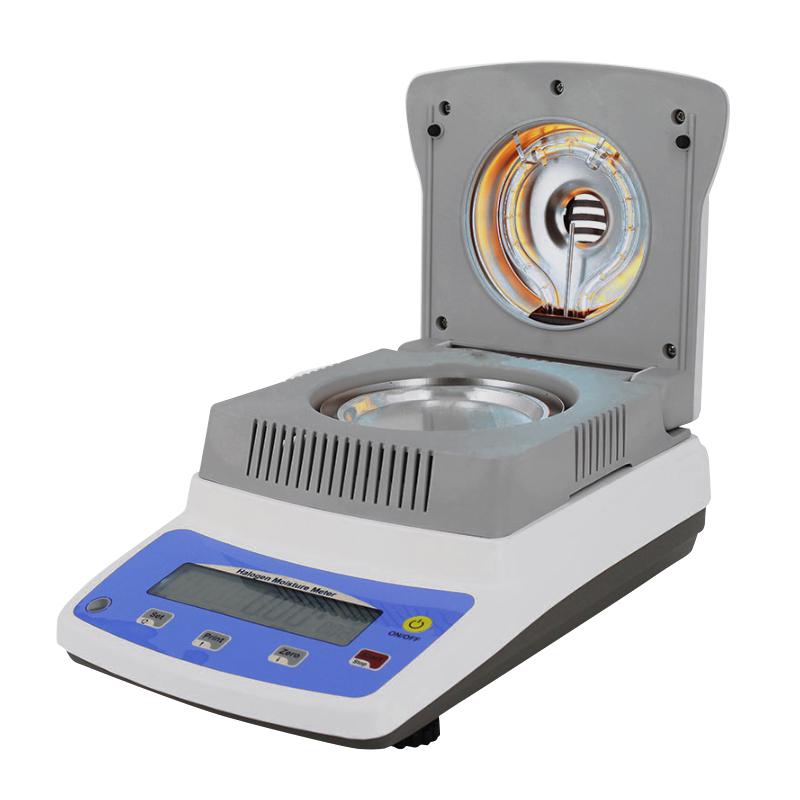

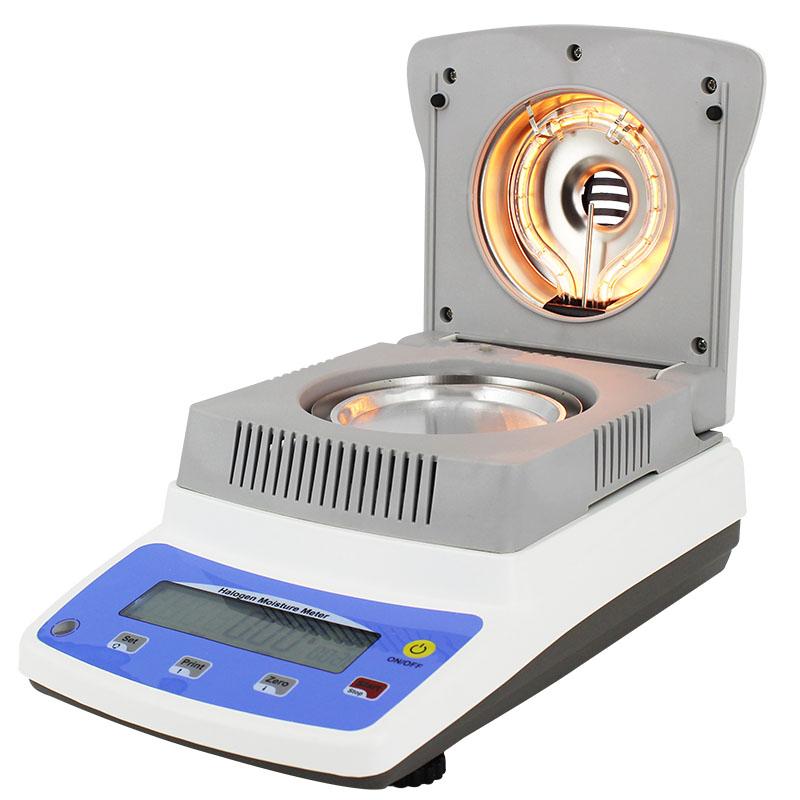

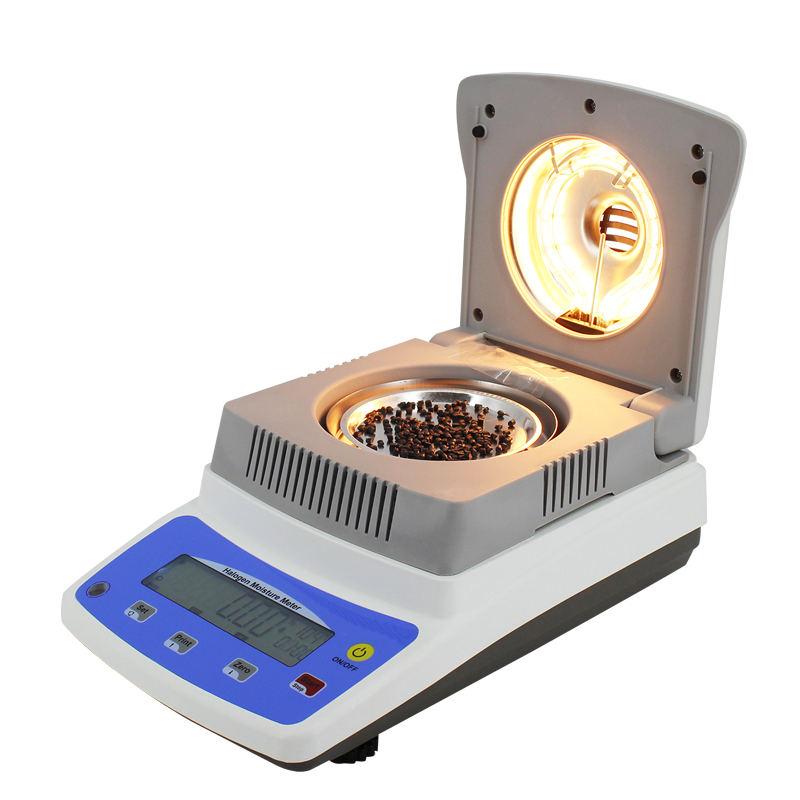

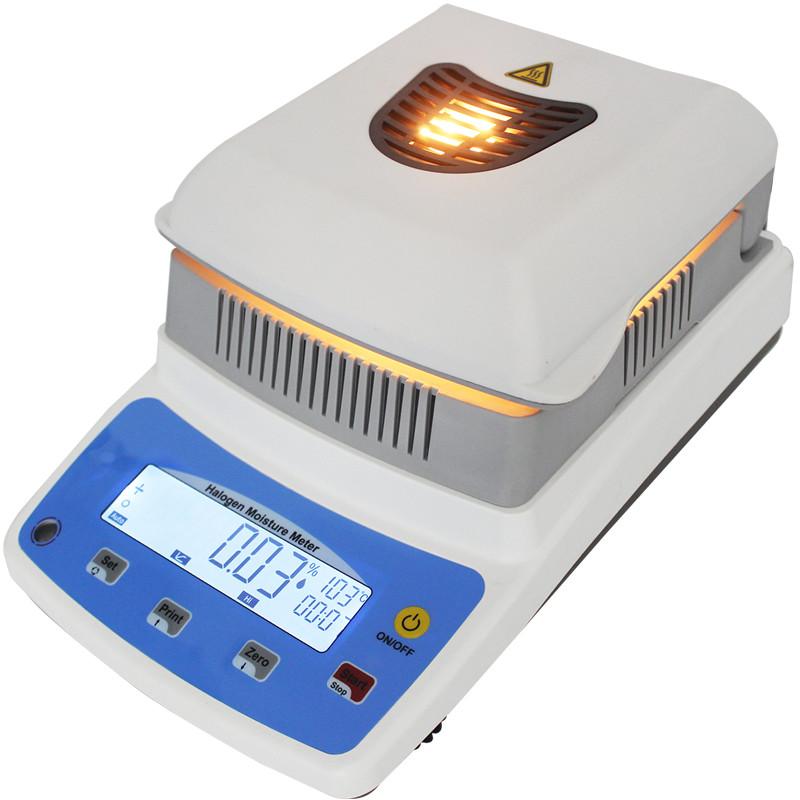

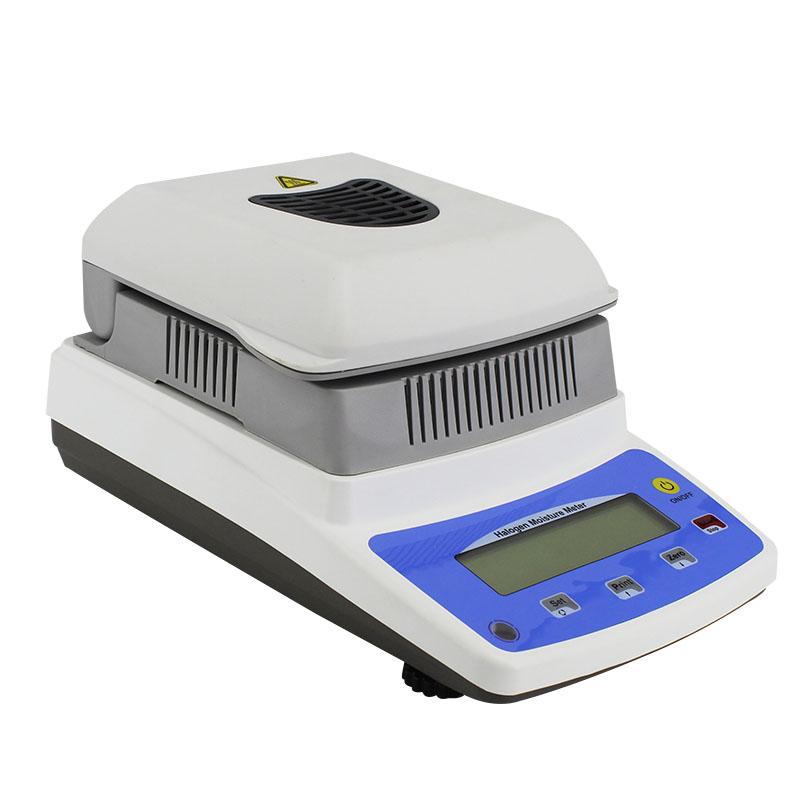

Halogen moisture meter is a new type of fast moisture detection instrument. It adopts annular halogen lamp heating and intelligent operation, which can quickly and evenly dry samples and obtain accurate moisture measurement results. The instrument is equipped with a High Accuracy Sensor and a secondary heat radiation device on the basis of Electronic Balance. The moisture percentage content is obtained by the ratio of the mass to Wet Weight after drying of the substance, and a variety of sample measurement methods are stored in advance. Generally, the sample can be measured in only a few minutes.
Features
1. No installation and debugging is required, it can be used after unpacking.
2. No training required, easy to operate
3. Short measurement time and high work efficiency
4, uniform heating, stable performance, accurate testing
5, small size, light weight
6, automatic measurement, measurement alarm reminder
7. Widely used and suitable for moisture measurement in various industries
8. Sensors imported from Germany are tested accurately
9. Draft Shield design makes weighing system more stable
10. The water content and solid content of the sample can be converted simultaneously
11, the heating chamber is made of pure stainless steel cover, high temperature and easy to clean
Principle
Moisture Analyzer is equipped with a High Accuracy Sensor and an effective secondary heat radiation device on the basis of Electronic Balance. The percentage of moisture content is obtained by the ratio of mass to Wet Weight after drying, and the sample is rapidly and uniformly dried by annular halogen lamp heating.
Applications
Plastic, rubber, chemical, food and other industries
Steps
1. In the state of 0.00, the loft is on the pan
2. Cover the lid and press Start to start the heating test
3. After the test, the screen shows Moisture content, press Set to switch moisture, Solid content, and water loss weight, and then press Start to return to the next sample test
Notice
Make sure the instrument is at 0.00 before use
Cover the lid when testing
• Press the Set key to switch and display different parameters
• After the test is completed, the instrument will alarm and remind
