Overview

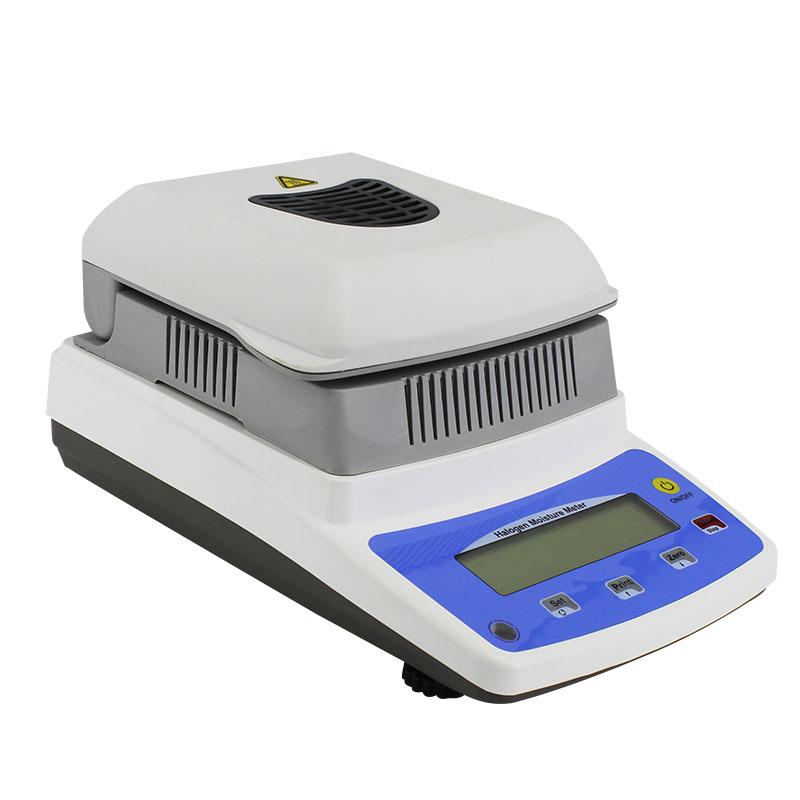

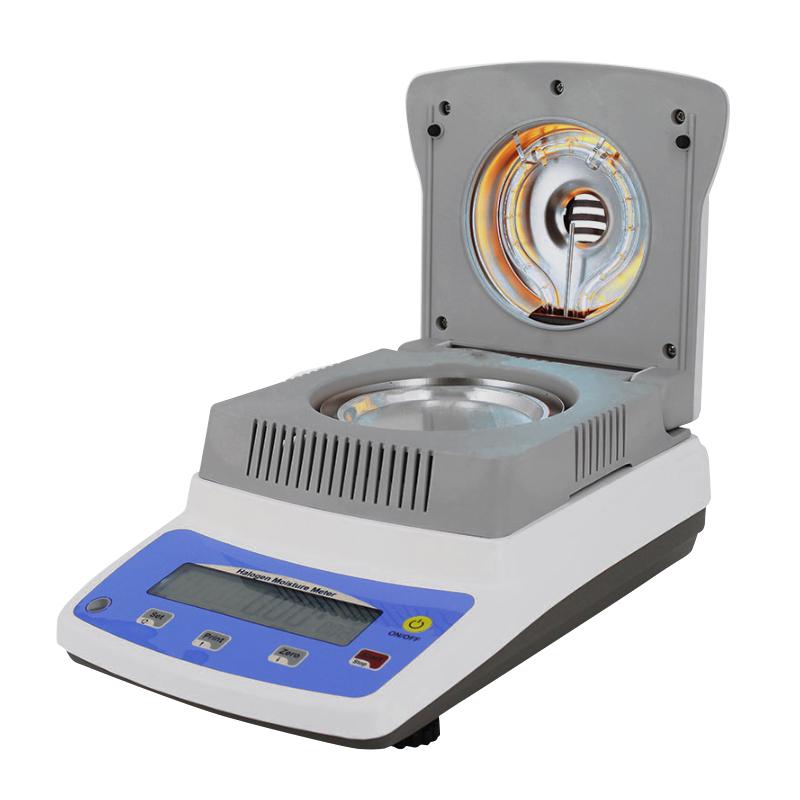

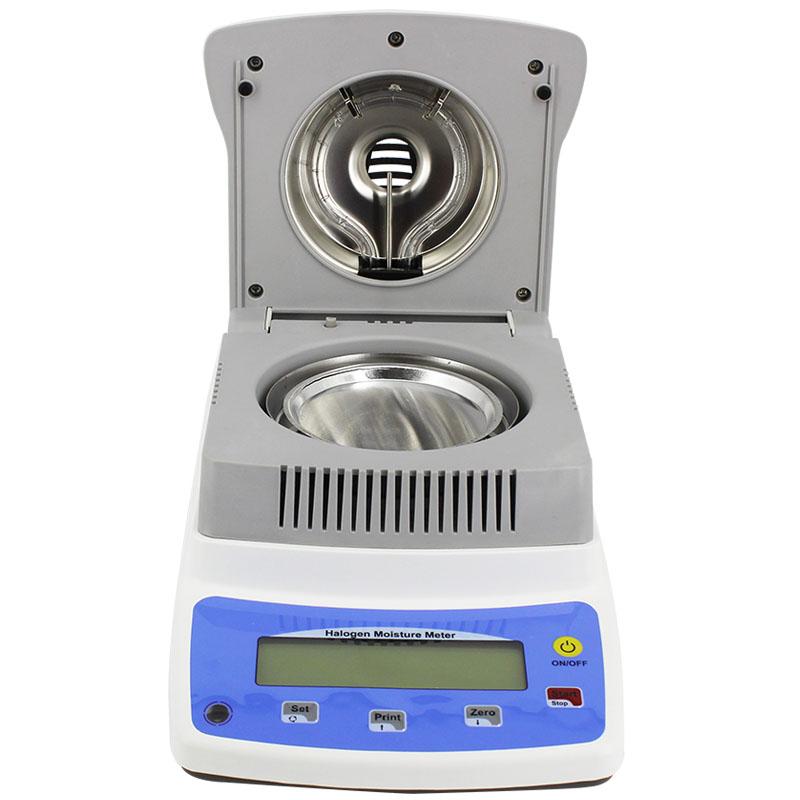

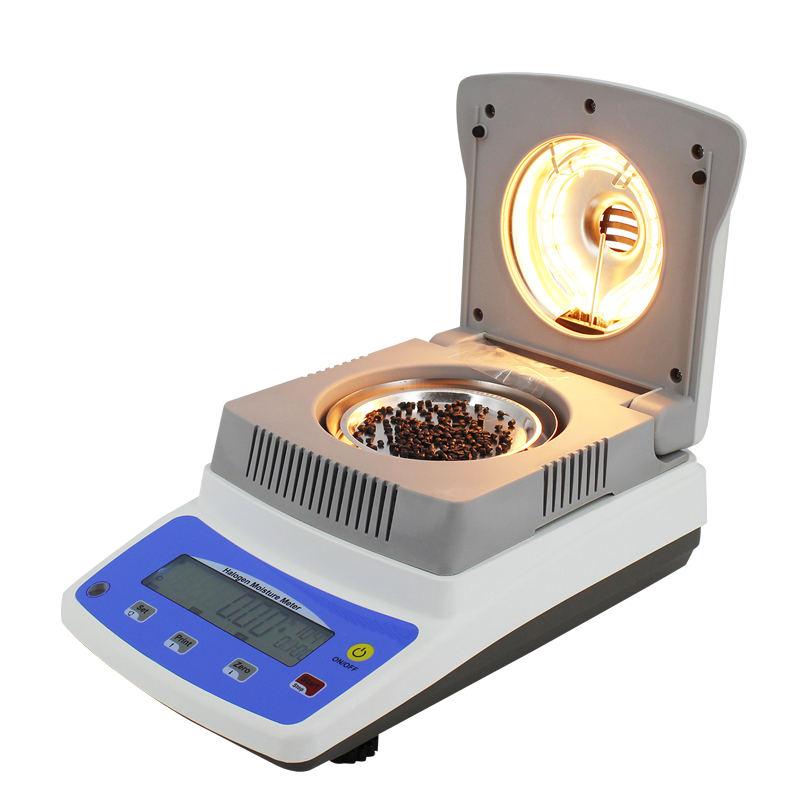

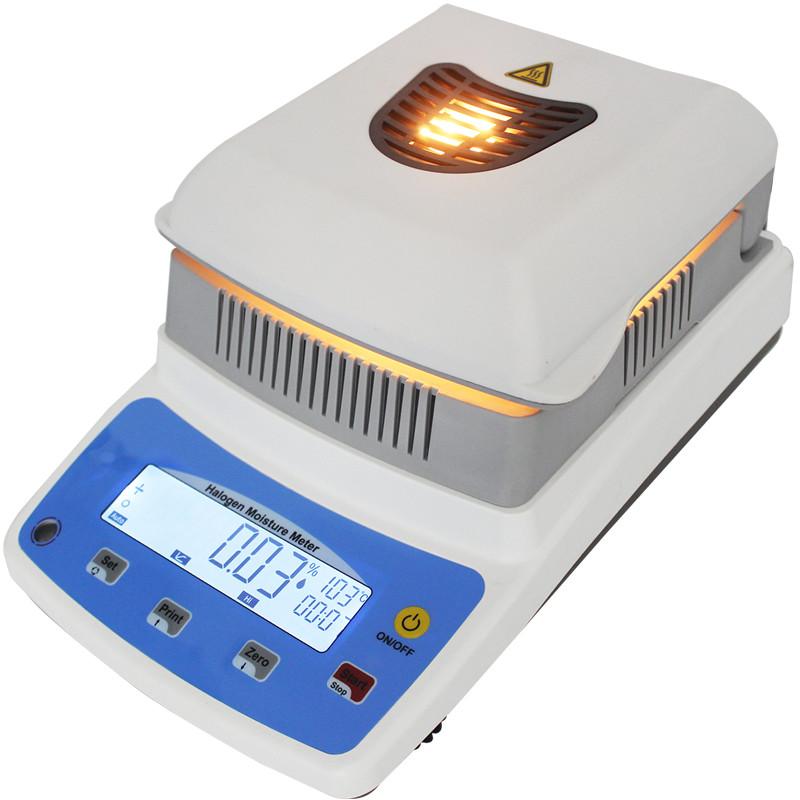

XIONGFA XFSFY-120B Halogen moisture meter is a new type of rapid moisture detection instrument. It adopts annular halogen lamp heating and intelligent operation, which can quickly and evenly dry samples to obtain accurate moisture measurement results. The instrument is equipped with a High Accuracy Sensor and an effective secondary heat radiation device on the basis of Electronic Balance. The moisture percentage content is obtained by the ratio of mass and Wet Weight after drying of substances. Various sample moisture measurement methods are pre-stored, making the test work fast and simple.
Features
1. No installation or debugging is required, and it can be used after unpacking.
2. No training required, simple operation, eliminating cumbersome use steps
3. Short measurement time and high work efficiency
4, uniform heating, stable performance, accurate testing
5, small size, light weight
6, automatic measurement, measurement alarm reminder, measurement process without supervision
7. Widely used and suitable for moisture determination in almost every industry
8. Sensors imported from Germany make the instrument test effect better and more accurate
9. Draft Shield design makes the instrument weighing system more stable
10. The water content and solid content of the sample can be converted simultaneously
11, the heating chamber is made of pure stainless steel cover, high temperature resistance, easy to clean
Principle
Moisture Analyzer is equipped with a High Accuracy Sensor and an effective secondary heat radiation device based on Electronic Balance to obtain moisture percentage and other results from the ratio of mass to Wet Weight after drying of the material. Using a ring halogen lamp for heating, the sample is dried quickly and evenly to obtain accurate moisture determination results.
Applications
In the production and experimental process of plastics, rubber, chemical, food and other industries
Steps
1. In the state of 0.00, the loft is on the pan
2. Cover the lid and press Start to start the heating test
3. After the test, the screen directly displays the Moisture content of the product, press Set to switch the moisture, Solid content, and water loss weight, and then click Start to return to the next sample test
Notice
Make sure the instrument is at 0.00 before testing
• Need to cover the lid during testing
• After the test is completed, you can switch to display moisture, Solid content, and water loss weight through the Set key
• Press the Start button to return to the next sample test
