Overview

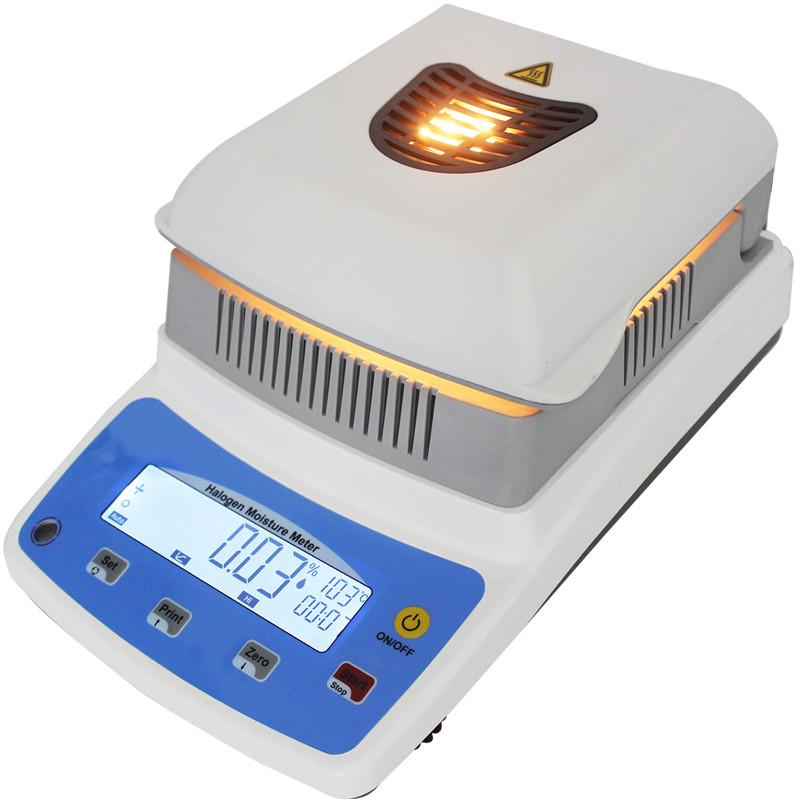

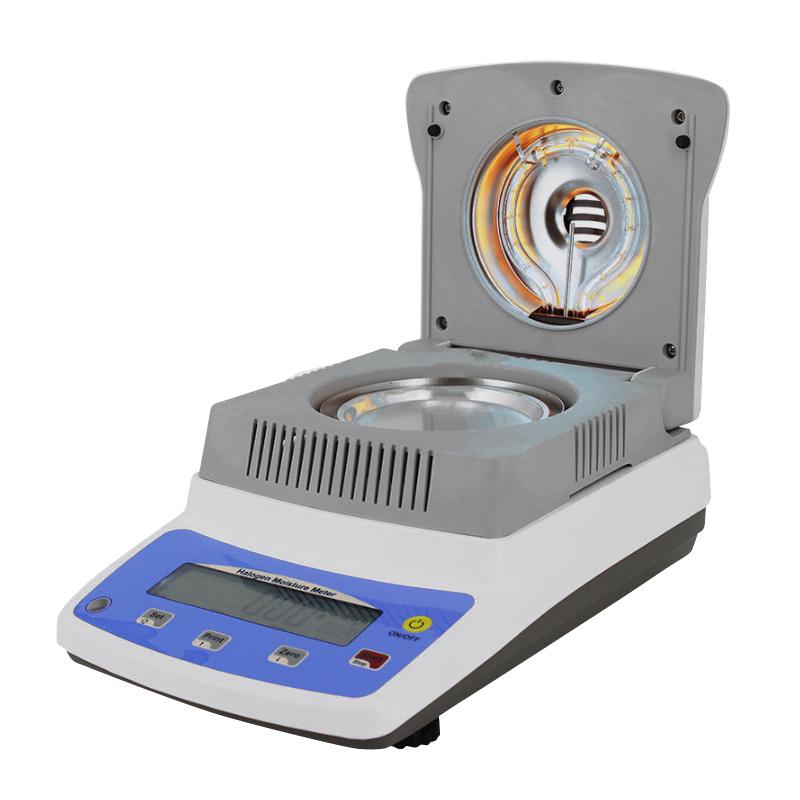

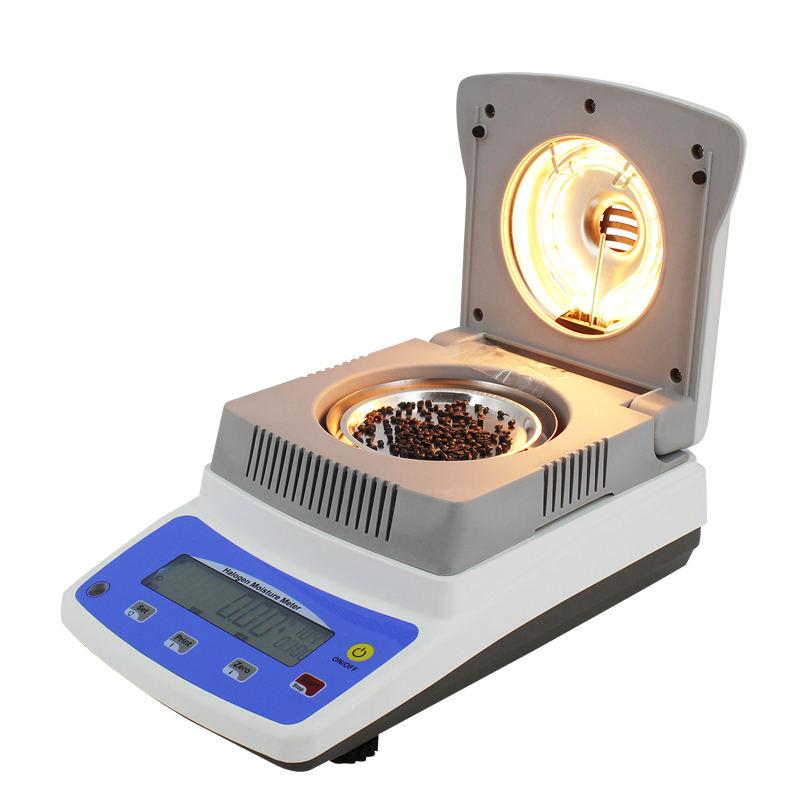

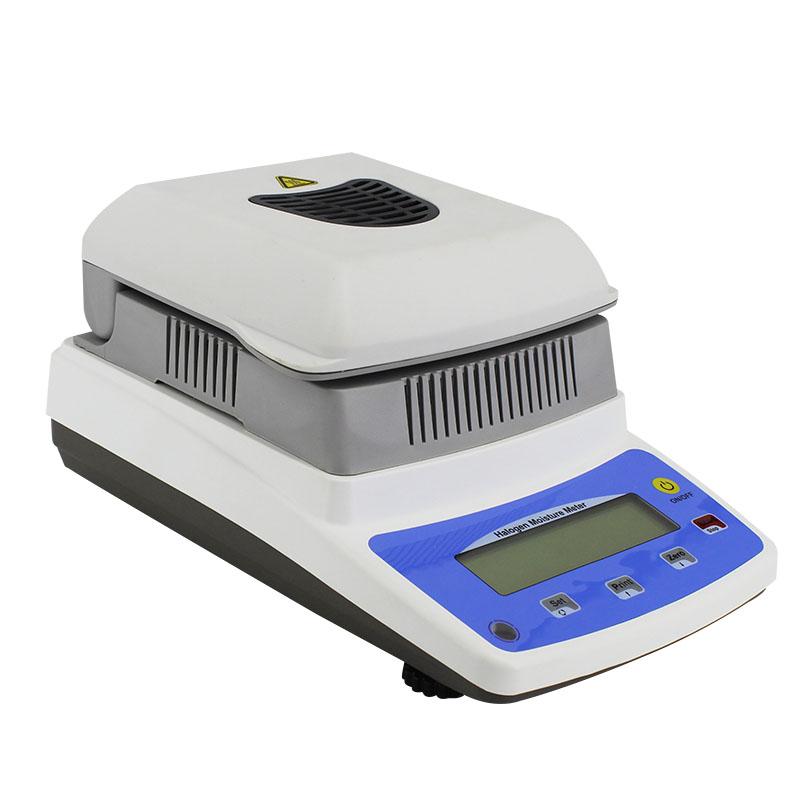

The XIONGFA XFSFY-120A Halogen moisture meter is a new type of rapid moisture detection instrument that uses annular halogen lamp heating and intelligent operation to quickly and evenly dry samples and accurately determine Moisture content. The instrument is based on Electronic Balance with a High Accuracy Sensor and a secondary heat radiation device. The moisture percentage is obtained by the mass ratio before and after drying, and various measurement methods are stored in advance. The test can be completed in a few minutes. The operation is simple and the display is clear.
Features
1. No installation, debugging, unpacking can be used
2. No training required, simple operation, eliminating tedious steps
3. Short measurement time and high work efficiency
4. Uniform heating, stable performance, accurate test
5. Small size and light weight
6. Fully automatic measurement, alarm reminder after measurement, no need to watch
7. Widely used and suitable for moisture determination in various industries
8. Sensor imported from Germany, good test effect and accuracy
9. Unique Draft Shield Design for Stable Weighing System
10. The water content and solid content of the sample can be converted simultaneously
11. The heating cavity adopts pure stainless steel cavity cover, which is resistant to high temperature and easy to clean
Principle
Moisture Analyzer is equipped with a High Accuracy Sensor and an effective secondary heat radiation device on the basis of Electronic Balance to obtain moisture percentage and Miscellaneous results by the ratio of mass and Wet Weight after drying of the material. The ring halogen lamp is used for heating, and the sample is dried quickly and evenly to achieve accurate moisture determination.
Applications
Production and experimental processes in the plastics, rubber, chemical, food, and other industries
Steps
1. In the state of 0.00, the loft is on the pan
2. Close the lid and press Start to start the heating test
3. After the test, the screen shows Moisture content, press Set to switch moisture, Solid content, water loss weight, and then press Start to return to the next sample test
Notice
• Ensure that the instrument is used in a stable state
• Avoid direct contact with high temperature parts during heating
• Pay attention to the high temperature resistance of the heating cavity when cleaning
• Turn off the power in time after use
