Overview

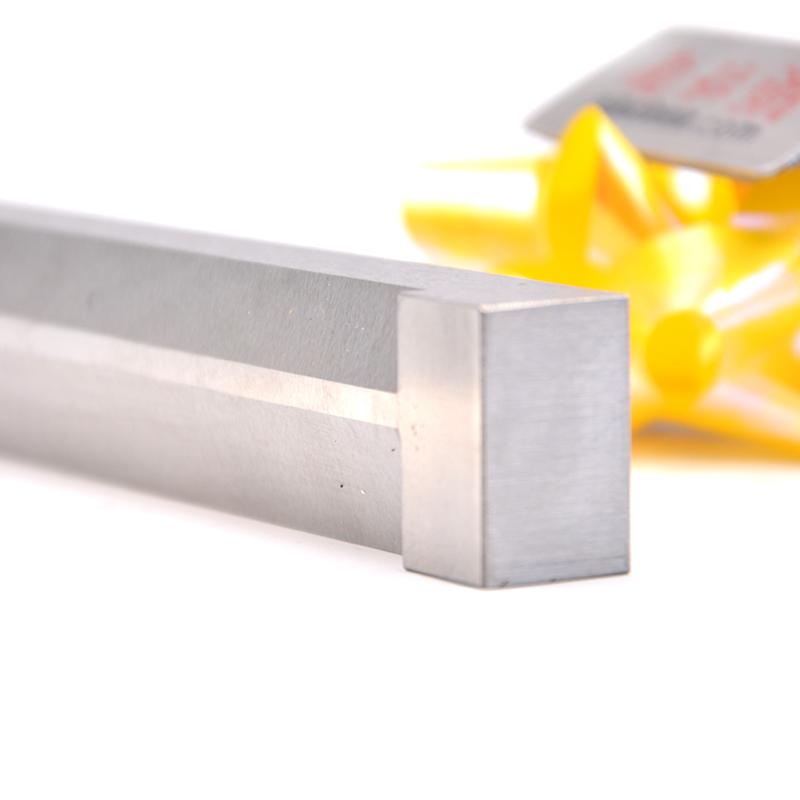

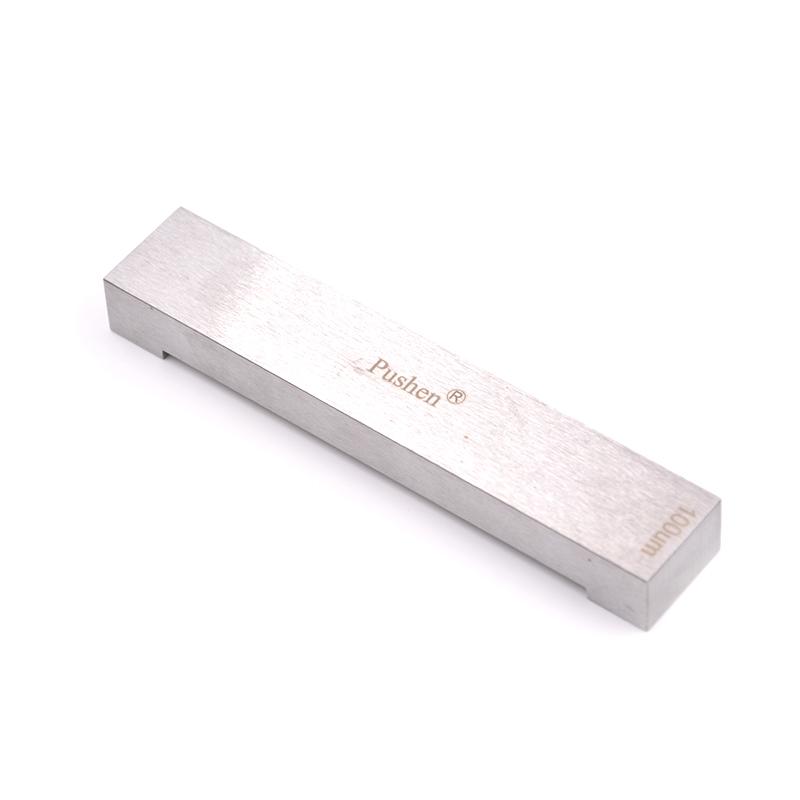

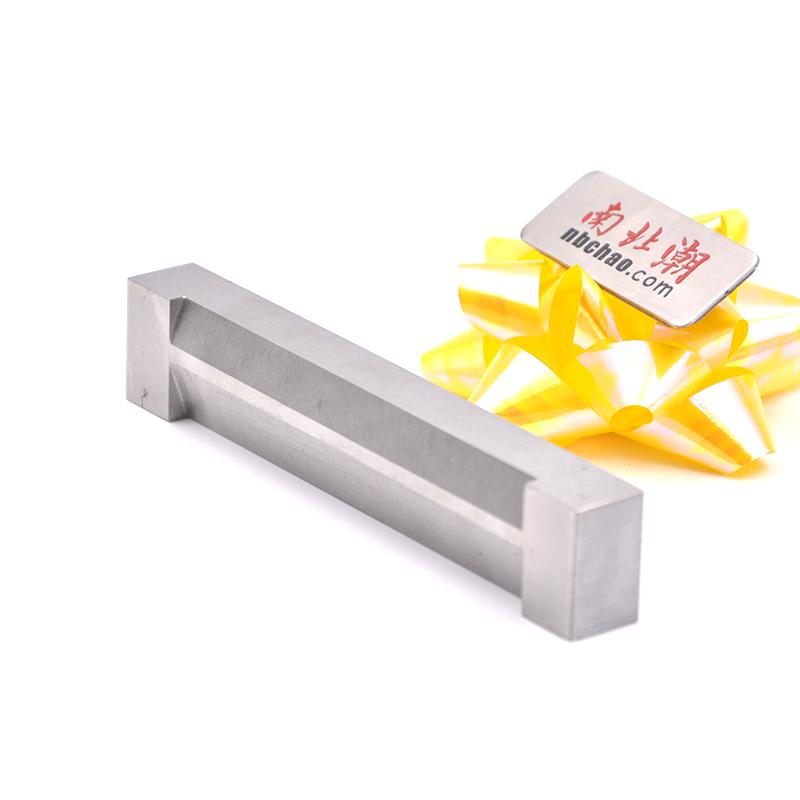

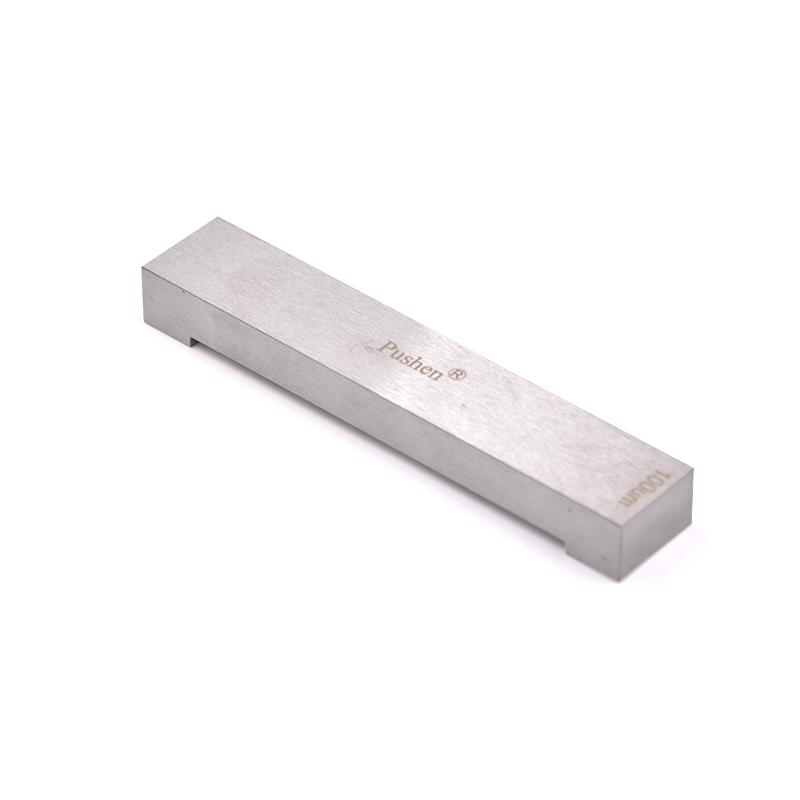

PUSHEN Single Sided Film Applicator models include SZQ-300, SZQ-400, SZQ-500, and SZQ-700, corresponding to wet film thicknesses of 300μm, 400μm, 500μm, and 700μm, respectively, with an application width of 100mm. This product is a bird-shaped coating applicator made of stainless steel, suitable for flat surface Spreader sample preparation, used to determine film color, hiding power and other performance, with excellent corrosion resistance.
Features
1. Made of hard stainless steel for durability and corrosion resistance
2. High Accuracy Fixed film thickness to ensure accurate Spreader thickness
3. The application width is 100mm, and supports a variety of film width customization
4. Suitable for flat and solid substrates, Spreader is uniform and reliable
Principle
Single-sided Film Applicator achieves uniform Spreader by applying a film of a specific thickness and width on a flat and solid substrate. Coating applicator ensures leveling, making the film appear flat and smooth, avoiding irregular shapes such as orange peel, brush marks, ripples, cratering, etc., thereby ensuring sample mass and facilitating subsequent testing of film Appearance and physical properties.
Applications
Coatings, inks, powders, pigments and other industries
Steps
1. Prepare a flat and solid substrate
2. Select the right type of Film Applicator (such as SZQ-300a)
3. Place the coating applicator on the substrate and apply the coating evenly
4. Ensure that the application width is 100mm and the thickness meets the preset value (such as 300μm)
5. After completing the Spreader, check the film Smoothness and perform follow-up tests
Notice
• Make sure the substrate is flat and solid before use to avoid uneven Spreader
• Select the correct coating applicator model to match the desired wet film thickness
• Spreader process to maintain uniform force to prevent orange peel, brush marks and other defects
• Regularly clean and maintain coating applicators to maintain accuracy and corrosion resistance
• Spreader test in time to avoid sample drying affecting the results
