Overview

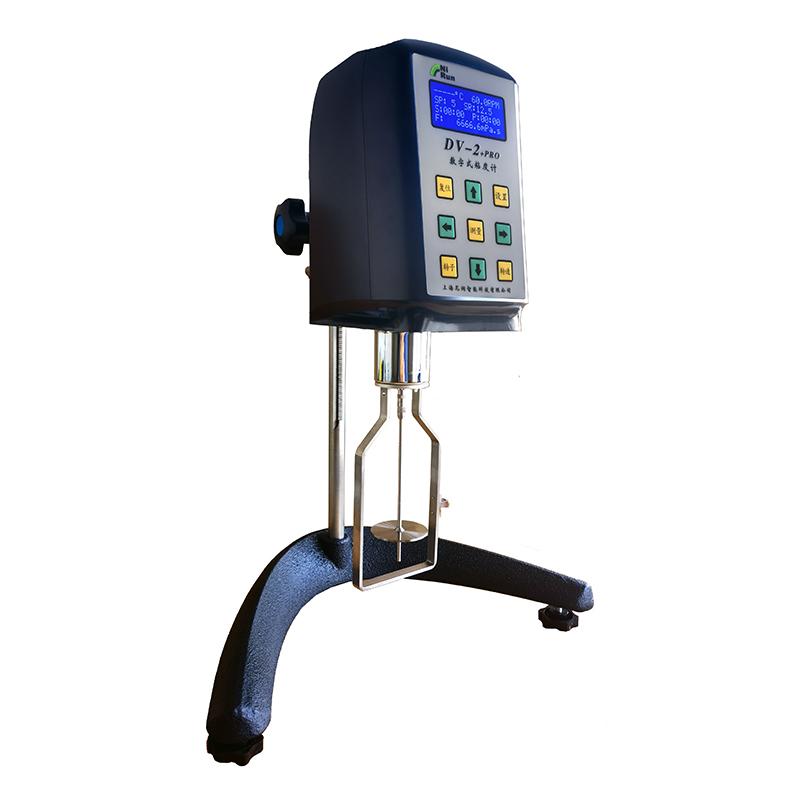

NIRUN LDV-3 + Pro is a digital Viscometer with stepper motor direct drive and LCD liquid crystal with blue backlight display, which can measure viscosity in the range of 10~ 6000000mPa · s, with High Accuracy and Repeatability. It comes standard with RTD temperature sensor and RS232 interface, supports computer full scale linear correction, and is widely used in a variety of fluid viscosity measurement.
Features
1. Optional DV data collection and programmable software for measurement of rheological characteristics
2. Display shear rate and shear stress
3. Stepper motor direct drive, no gear, Rotation speed accurate
4. LCD liquid crystal with blue backlight, displaying a large amount of information
5. Display the maximum viscosity value of the rotor that can be measured at the current Rotation speed
6. The viscosity value shows continuous change
7. Measurement range beyond the alarm sound prompt
8. Standard RTD temperature sensor
9. Standard bidirectional RS232 or 485 interface
10. Computer full-scale linear correction
11. AC Power Adapter 100V-240V, good anti-interference
Principle
The LDV-3 + Pro uses a stepper motor to directly drive the rotor to swirl/spin in the sample, measuring fluid resistance to calculate viscosity. The microcomputer Control system processes the data to display viscosity, shear rate and shear stress in real time, and supports continuous acquisition and programmed analysis.
Applications
Inks, Glue, Emulsion, Solvent Adhesive, Polymer Solution, Petroleum, paints Coatings, solvents, cosmetics, milk products, products, juices
Steps
1. Connect the Power Adapter and turn it on
2. Choose the right rotor and Rotation speed
3. Immerse the rotor into the sample to the specified depth
4. Start the measurement and observe the LCD display
5. Use Interface to connect computer for data collection (optional)
6. Clean the rotor after measurement
Notice
• Power supply voltage within 110~ 220V range
• Check whether the rotor is in good condition before use
• Measurement range to avoid alarm
Periodically calibrated for accuracy
• Clean the rotor to prevent cross-contamination
• Optional Accessories should be used according to the instructions
